Description

Price

12004

VALVE-INTAKE

12004-0750

$36.13

12005

VALVE-EXHAUST

12005-0771

$57.68

12009

RETAINER-VALVE SPRING

12009-0030

$11.32

12009A

RETAINER-VALVE SPRING

12009-1091

$11.32

12011

COLLET

12011-1053

$4.34

12032

TAPPET

12032-0009

$31.36

12032A

TAPPET

12032-0018

$45.30

16007

SEAT-SPRING

16007-0034

$5.71

16007A

SEAT-SPRING

16007-1227

$4.54

49078

SPRING-ENGINE VALVE

49078-0073

$7.54

49078A

SPRING-ENGINE VALVE

49078-0743

$9.22

92049

SEAL-OIL,VSB 4.3 7.5 5.3 8.3

92049-1349

$9.14

92180

SHIM,T=2.50

92180-1014

$14.27

92180A

SHIM,T=2.55

92180-1016

$14.27

92180B

SHIM,T=2.60

92180-1018

$16.98

92180C

SHIM,T=2.65

92180-1020

$16.98

92180D

SHIM,T=2.70

92180-1022

$16.98

92180E

SHIM,T=2.75

92180-1024

$16.98

92180F

SHIM,T=2.80

92180-1026

$14.27

92180G

SHIM,T=2.85

92180-1028

$14.27

92180H

SHIM,T=2.90

92180-1030

$16.98

92180I

SHIM,T=2.95

92180-1032

$16.98

92180J

SHIM,T=3.00

92180-1034

$16.98

92180K

SHIM,T=3.05

92180-1036

$16.98

92180L

SHIM,T=3.10

92180-1038

$16.98

92180M

SHIM,T=3.15

92180-1040

$16.98

92180N

SHIM,T=3.20

92180-1042

$16.98

92180O

SHIM,T=3.25

92180-1044

$16.98

92180P

SHIM,T=3.30

92180-1046

$16.98

92180Q

SHIM,T=3.35

92180-1048

$14.27

92180R

SHIM,T=3.40

92180-1050

$16.98

92180S

SHIM,T=3.45

92180-1052

$16.98

92180T

SHIM,T=3.50

92180-1054

$16.98

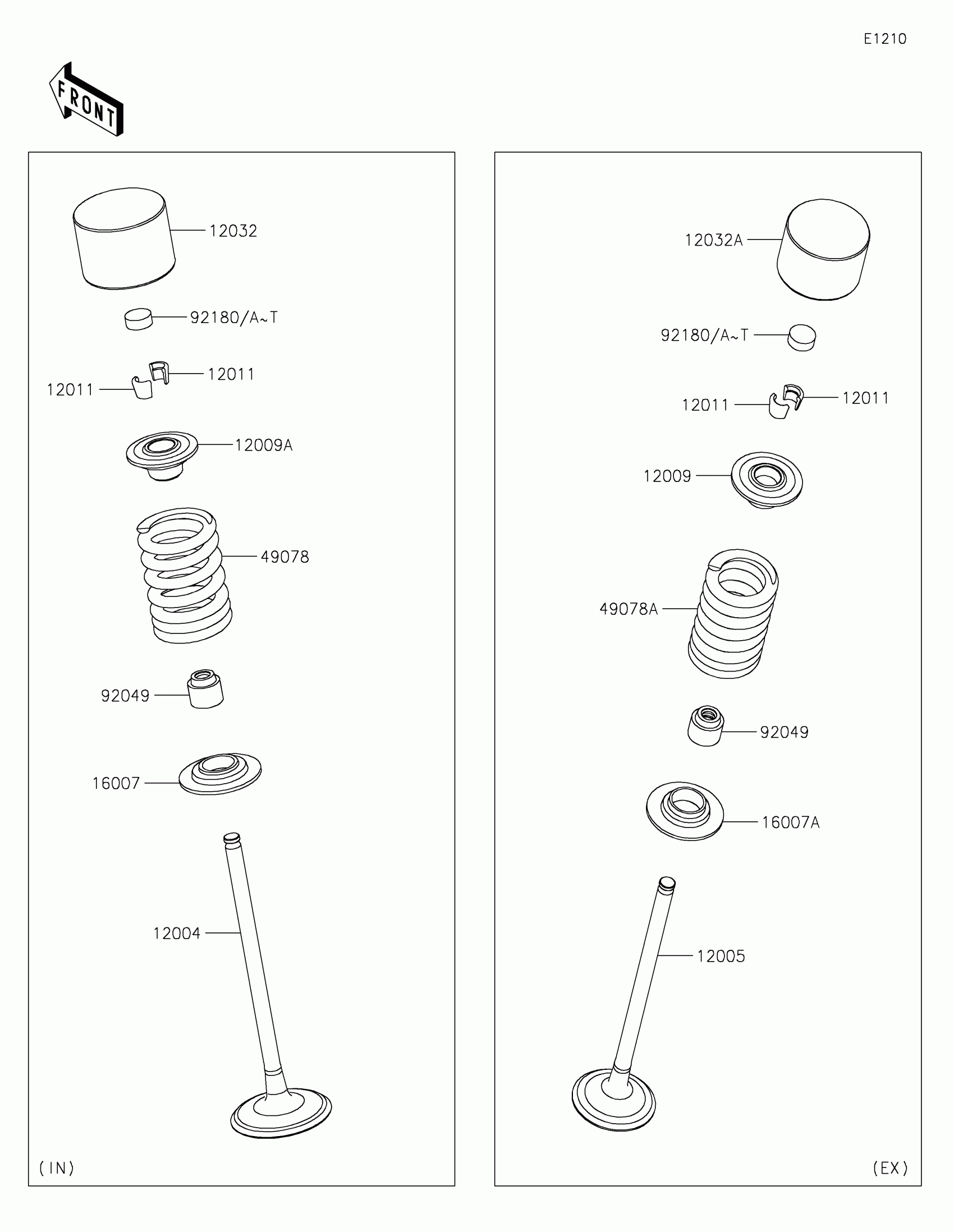

Kawasaki RIDGE® RANCH EDITION Valve(s) Diagram
