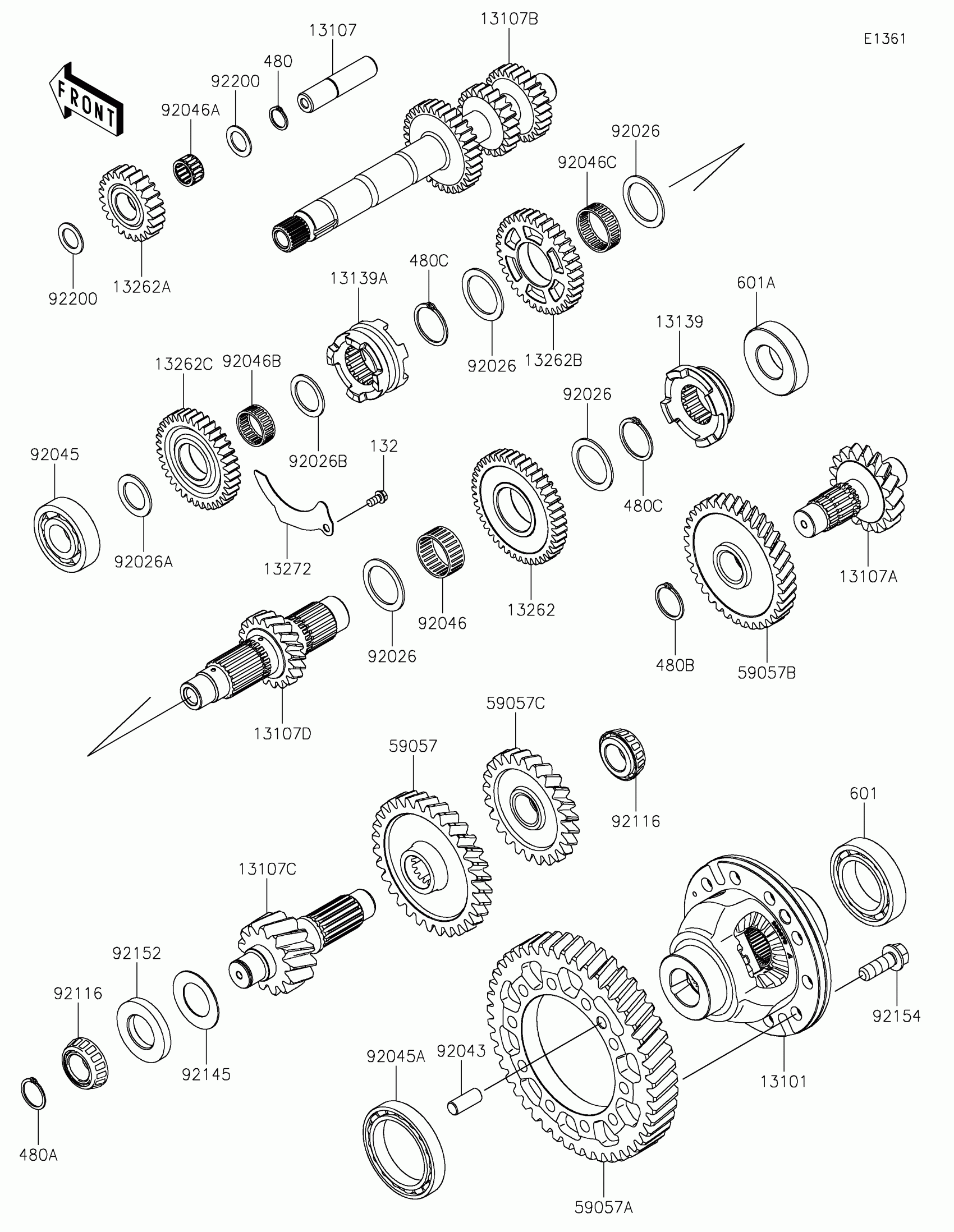

Kawasaki RIDGE® RANCH EDITION Transmission Diagram

#

Description
Price

13101

GEAR-ASSY,DIFFERENTIAL

13101-0735

$482.89

13107

SHAFT,REVERSE IDLER

13107-0879

$41.60

13107A

SHAFT,3RD,17T

13107-0965

$266.34

13107B

SHAFT,INPUT

13107-0966

$609.30

13107C

SHAFT,4TH,13T

13107-0967

$333.39

13107D

SHAFT,2ND,19T

13107-0974

$372.66

13139

SHIFTER,LOW,19T

13139-0030

$129.03

13139A

SHIFTER,HIGH&REV,19T

13139-0037

$121.11

13262

GEAR,LOW,43T

13262-1649

$162.39

13262A

GEAR,REVERSE IDLER,23T

13262-1650

$94.06

13262B

GEAR,REV,35T

13262-1651

$156.91

13262C

GEAR,HIGH,36T

13262-1655

$148.14

13272

PLATE,OIL

13272-2570

$1.27

59057

GEAR-HELICAL,31T

59057-0039

$181.61

59057A

GEAR-HELICAL,46T

59057-0040

$235.59

59057B

GEAR-HELICAL,36T

59057-0042

$177.11

59057C

GEAR-HELICAL,24T

59057-0046

$177.32

92026

SPACER,35.2X47X2

92026-0765

$10.78

92026A

SPACER,25.2X38X2

92026-0856

$8.31

92026B

SPACER,28X38X2

92026-1299

Unavailable

92043

PIN,DOWEL,12X30

92043-0789

$3.19

92045

BEARING-BALL,6305RSH2

92045-0899

$29.36

92045A

BEARING-BALL,6912

92045-0965

$37.22

92046

BEARING-NEEDLE,35X40X17

92046-0611

$16.03

92046A

BEARING-NEEDLE

92046-0634

$12.34

92046B

BEARING-NEEDLE

92046-0635

$11.61

92046C

BEARING-NEEDLE

92046-0636

$16.17

92116

BEARING-ROLLER

92116-1053

$23.61

92145

SPRING

92145-1837

$7.14

92152

COLLAR

92152-2526

$15.80

92154

BOLT,12X35

92154-4495

$8.32

92200

WASHER,18.2X28X1.5

92200-0716

$2.44

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97

480

CIRCLIP-TYPE-C,18MM

480J1800

$0.98

480A

CIRCLIP-TYPE-C,25MM

480J2500

$1.47

480B

CIRCLIP

480J2900

$5.42

480C

CIRCLIP

480J3500

$2.25

601

BEARING-BALL,6012

601A6012

$44.39

601A

BEARING-BALL

601A6206

Unavailable
