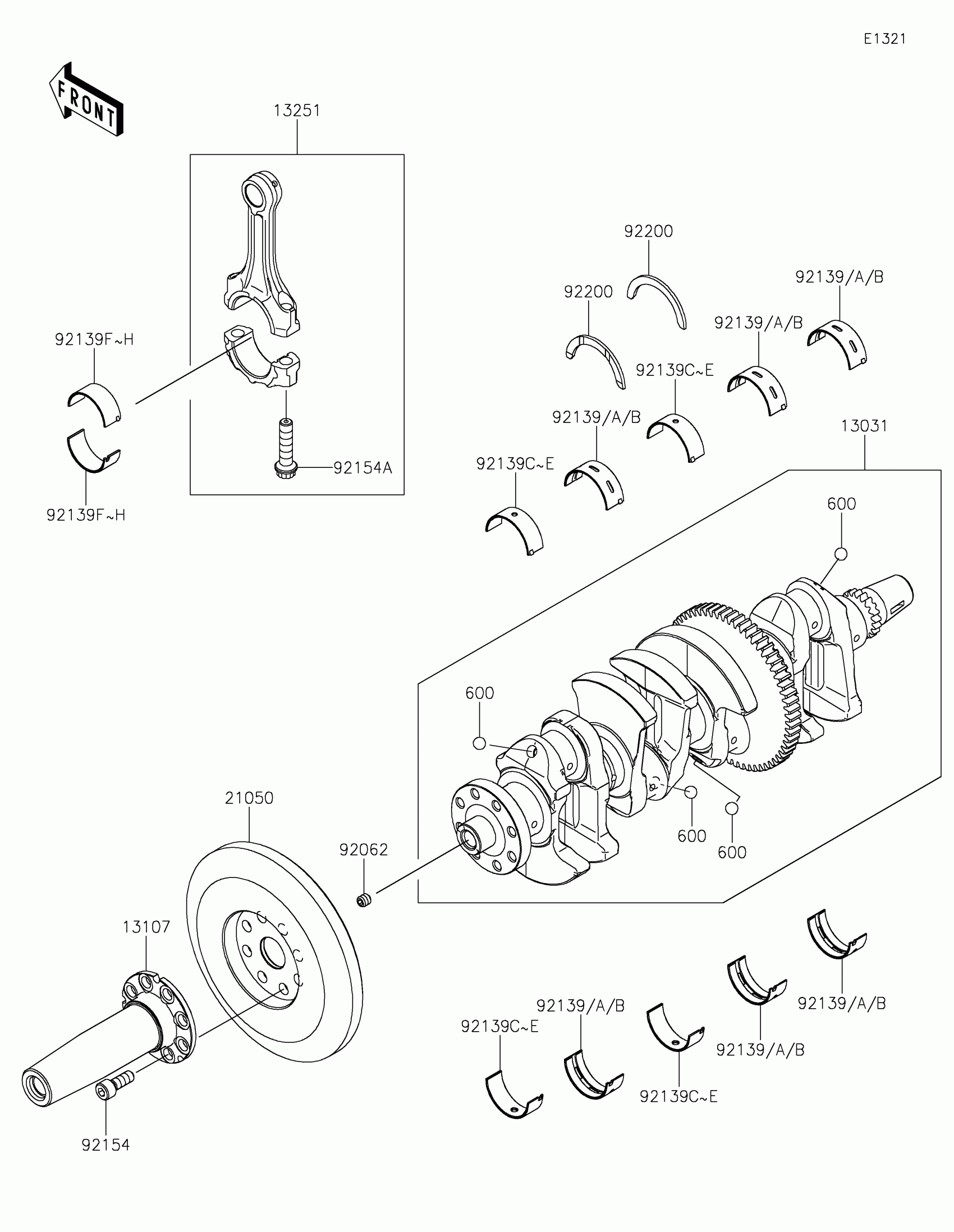

Kawasaki RIDGE® RANCH EDITION Crankshaft Diagram

#

Description
Price

13031

CRANKSHAFT-COMP

13031-1530

$1,637.76

13107

SHAFT,CONVERTER

13107-0997

$512.73

13251

ROD-ASSY-CONNECTING,H

13251-0751-HH

$177.02

21050

FLYWHEEL

21050-0035

$230.27

92062

NOZZLE

92062-1053

$5.75

92139

BUSHING,#2,BLUE

92139-1265

$15.83

92139A

BUSHING,#2,BLACK

92139-1266

Unavailable

92139B

BUSHING,#2,BROWN

92139-1267

Unavailable

92139C

BUSHING,#1,BLUE

92139-1268

$15.44

92139D

BUSHING,#1,BLACK

92139-1269

Unavailable

92139E

BUSHING,#1,BROWN

92139-1270

Unavailable

92139F

BUSHING,CONNECTING ROD,BLUE

92139-1271

$14.51

92139G

BUSHING,CONNECTING ROD,BLACK

92139-1272

Unavailable

92139H

BUSHING,CONNECTING ROD,BROWN

92139-1273

Unavailable

92154

BOLT,8X22

92154-4492

$1.59

92154A

BOLT,CONNECTING ROD

92154-4493

$5.63

92200

WASHER,T=2.5

92200-0744

$8.49

600

BALL-STEEL,11/32"

600A1100

$0.60
