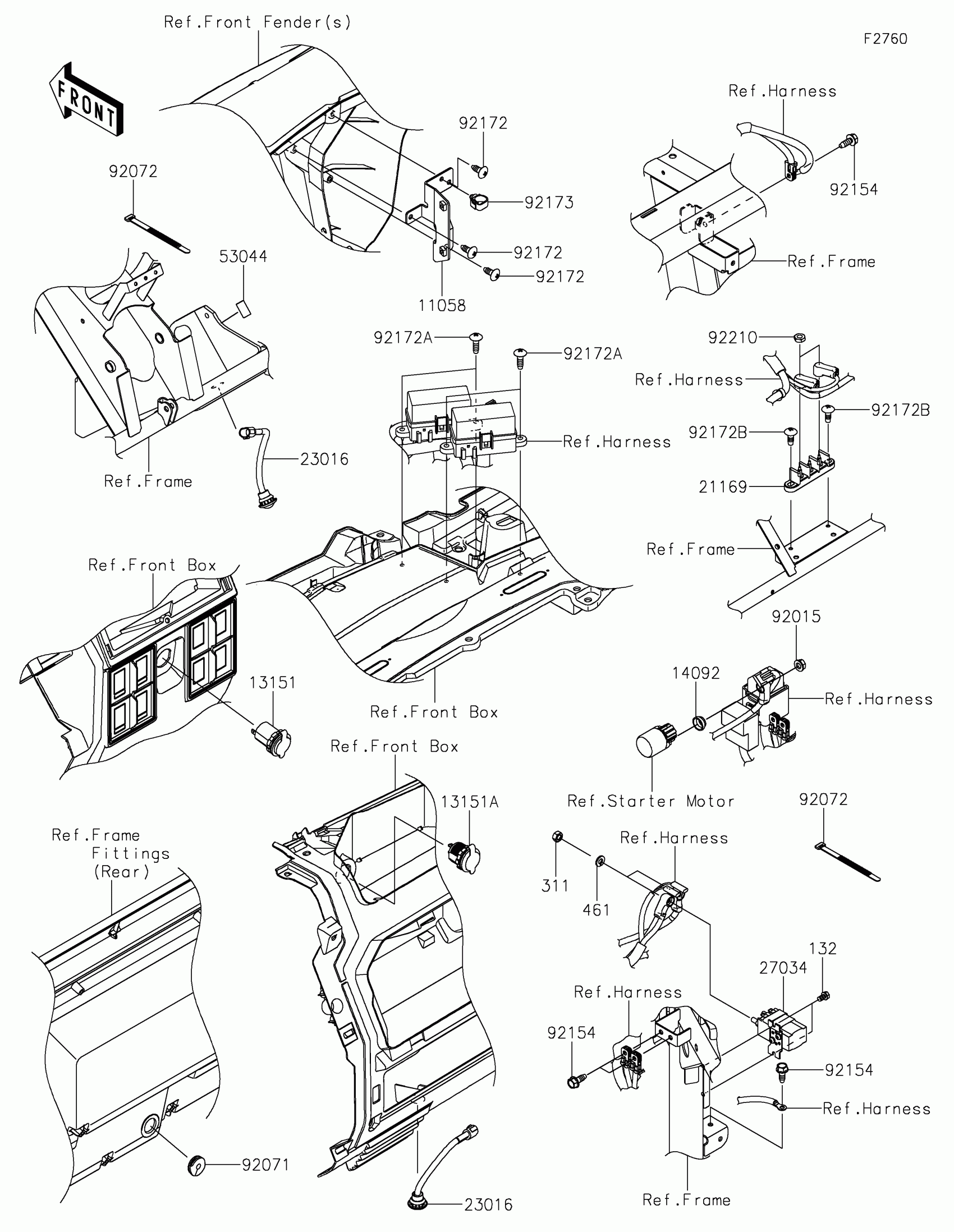

Find the part on the Chassis Electrical Equipment diagram for your 2025 Kawasaki Ridge® Ranch Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ridge® Ranch Edition Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,TERMINAL

11058-1926

1
Out of stock

13151

SWITCH-COMP,OUTLET,12V

13151-0556

1
Out of stock

13151A

SWITCH-COMP,USB-SOCKET

13151-0601

1
Out of stock

14092

COVER,MAGNETIC SW.

14092-0851

1
Out of stock

21169

TERMINAL

21169-0571

1
Out of stock

23016

LAMP-ASSY,FLOOR

23016-0671

1
Out of stock

27034

RELAY

27034-0020

1
Out of stock

53044

TRIM,L=22

53044-7503

1

$7.69

In stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92071

GROMMET,8X22X8

92071-0753

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock

92154

BOLT,FLANGED,6X16

92154-0551

1
Out of stock

92172

SCREW,6X16

92172-0284

1
Out of stock

92172A

SCREW,TAPPING,6X20

92172-0488

1
Out of stock

92172B

SCREW,TAPPING,6X16

92172-0739

1
Out of stock

92173

CLAMP,HOLDER CLIP

92173-0868

1
Out of stock

92210

NUT

92210-1680

1
Out of stock

132

BOLT-FLANGED-SMALL,5X8

132BA0508

1
Out of stock

311

NUT-HEX,6MM

311BA0600

1
Out of stock

461

WASHER-SPRING,6MM

461DA0600

1
Out of stock
