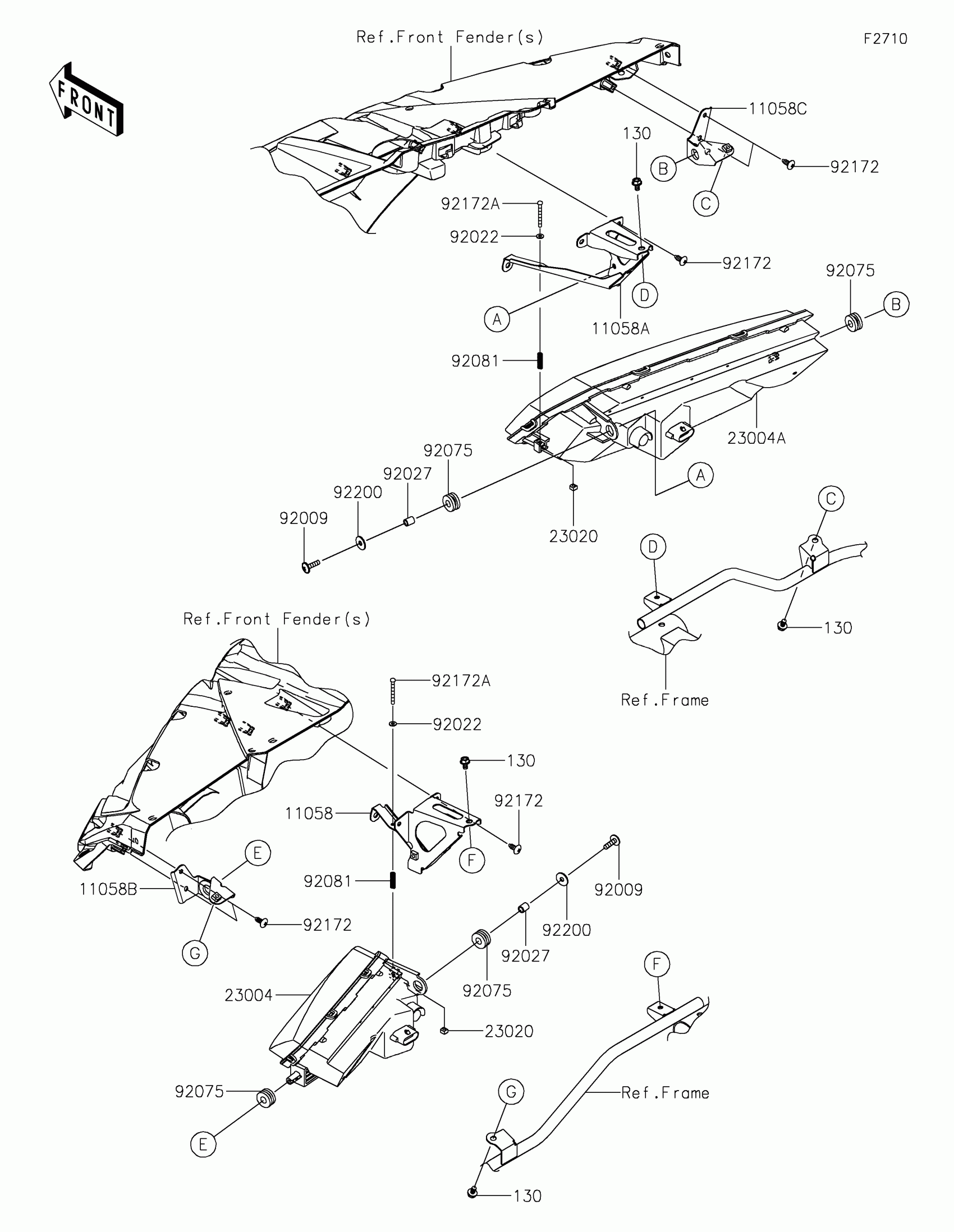

Kawasaki Ridge Limited Headlight(s) Diagram

Description

Price

11058

BRACKET,HEAD LAMP,LH,IN

11058-0218

$22.47

11058A

BRACKET,HEAD LAMP,RH,IN

11058-0219

$22.47

11058B

BRACKET,HEAD LAMP,LH,OUT

11058-0220

$12.44

11058C

BRACKET,HEAD LAMP,RH,OUT

11058-0221

$12.44

23004

LAMP-HEAD,LED,LH

23004-0435

$264.67

23004A

LAMP-HEAD,LED,RH

23004-0436

$264.67

23020

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

92009

SCREW,6X22,BLACK

92009-1256

$1.96

92022

WASHER

92022-563

$0.90

92027

COLLAR,6.8X10X12

92027-162

$4.93

92075

DAMPER,10X24X12

92075-1690

$3.81

92081

SPRING,FOCUS ADJUST

92081-1896

$3.99

92172

SCREW,6X16

92172-0284

$0.90

92172A

SCREW,4X40

92172-1092

$0.85

92200

WASHER,6.5X20X1.6

92200-0283

$1.08

130

BOLT-FLANGED,6X10

130BA0610

$0.97
