2025 Kawasaki Ridge Limited Drive Shaft-Propeller Diagram

← All diagrams

Find the part on the Drive Shaft-Propeller diagram for your 2025 Kawasaki Ridge Limited, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

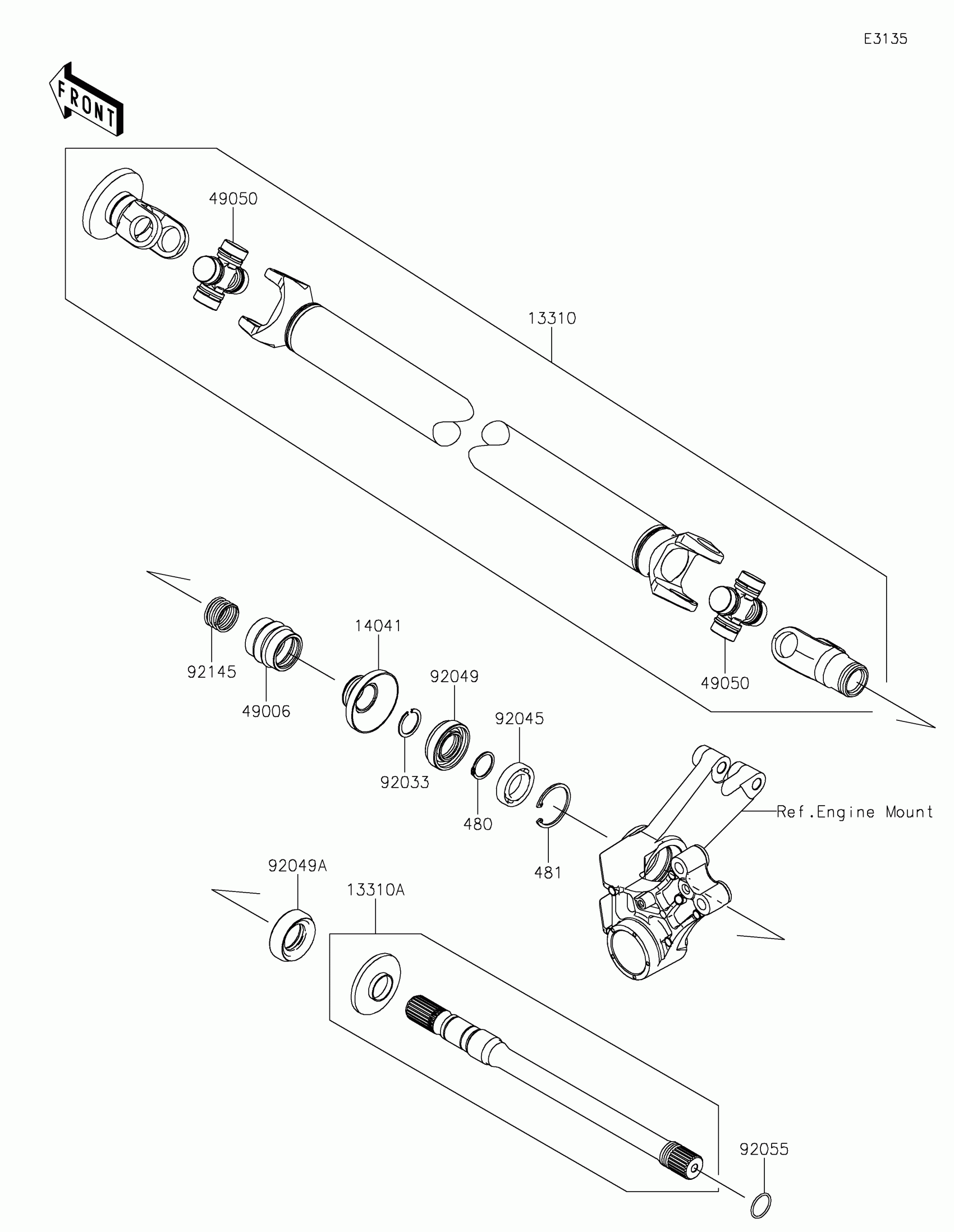

2025 Kawasaki Ridge Limited Drive Shaft-Propeller Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13310

SHAFT-ASSY

13310-0579

1
Out of stock

13310A

SHAFT-ASSY

13310-0580

1
Out of stock

14041

COVER-COMP

14041-0631

1
Out of stock

49006

BOOT

49006-0646

1
Out of stock

49050

SPIDER

49050-0034

1
Out of stock

92033

RING-SNAP,24MM

92033-026

1
Out of stock

92045

BEARING-BALL,#6905

92045-036

1
Out of stock

92049

SEAL-OIL,TC9Y 25X48X10X17.2

92049-0817

1
Out of stock

92049A

SEAL-OIL,TC9Y 28X50X10X17.2

92049-0818

1
Out of stock

92055

RING-O,22.1X1.9

92055-1617

1
Out of stock

92145

SPRING

92145-1838

1
Out of stock

480

CIRCLIP-TYPE-C,25MM

480J2500

1
Out of stock

481

CIRCLIP-TYPE-C,42MM

481J4200

1
Out of stock
← Drive Shaft-Front Drive Shaft-Rear →
