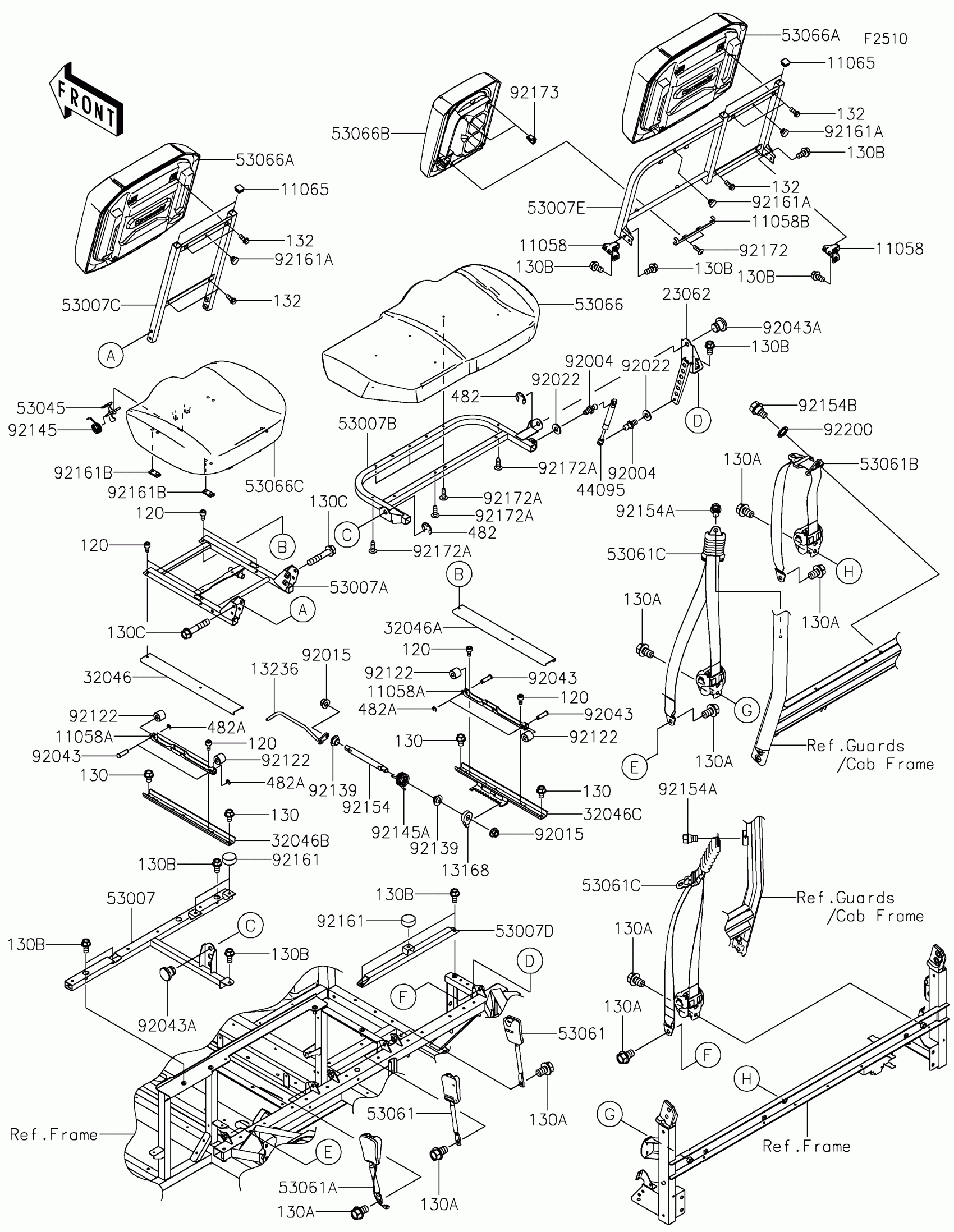

Kawasaki RIDGE® HVAC Seat Diagram

#

Description
Price

11058

BRACKET,SEAT BACK

11058-0244

$17.00

11058A

BRACKET,SEAT RAIL

11058-0250

$13.42

11058B

BRACKET,SEAT BACK,CNT

11058-0516

$12.41

11065

CAP

11065-0901

$2.37

13168

LEVER,STOP

13168-0883

$13.53

13236

LEVER-COMP,SEAT SLIDE

13236-0851

$41.49

23062

BRACKET-COMP,SEAT BOTTOM

23062-1389

$55.28

32046

BRACKET-SEAT,UPP RAIL,LH

32046-0481

$38.80

32046A

BRACKET-SEAT,UPP RAIL,RH

32046-0482

$23.08

32046B

BRACKET-SEAT,LWR RAIL,LH

32046-0483

$14.59

32046C

BRACKET-SEAT,LWR RAIL,RH

32046-0484

$47.88

44095

DAMPER-GAS FILLED

44095-0004

$18.78

53007

FRAME-SEAT,BOTTOM,LH

53007-0458

$156.22

53007A

FRAME-SEAT,BOTTOM,DRIVER

53007-0459

$95.89

53007B

FRAME-SEAT,BOTTOM,PASSENGER

53007-0460

$287.56

53007C

FRAME-SEAT,BACK,DRIVER

53007-0461

$62.02

53007D

FRAME-SEAT,BOTTOM,RH

53007-0464

$353.45

53007E

FRAME-SEAT,BACK,PASSENGER

53007-0466

$119.03

53045

HOOK-ASSY

53045-0019

$7.63

53061

BELT-SEAT,BUCKLE

53061-0039

$27.99

53061A

BELT-SEAT,BUCKLE,SW.

53061-0364

$49.05

53061B

BELT-SEAT,CNT

53061-0377

$94.41

53061C

BELT-SEAT,LH/RH

53061-0378

$108.99

53066

SEAT,BOTTOM,PASSENGER,BLK+SIL

53066-0867-55P

$315.18

53066A

SEAT-ASSY,BACK,BLACK+SIL+SIL

53066-0868-41H

$299.66

53066B

SEAT-ASSY,BACK,CNT,BLACK

53066-0869-MA

$163.55

53066C

SEAT,BOTTOM,DRIVER,BLK+SIL

53066-0870-55P

$216.52

92004

STUD

92004-0733

$2.44

92015

NUT,8MM

92015-1432

$4.93

92022

WASHER,8.2X19X2

92022-1533

$4.85

92043

PIN

92043-0991

$2.12

92043A

PIN

92043-1773

$12.95

92122

ROLLER

92122-0564

$1.25

92139

BUSHING

92139-0230

$4.10

92145

SPRING,SEAT LATCH

92145-0022

$5.43

92145A

SPRING,ADJUST LEVER

92145-1858

$6.44

92154

BOLT,ADJUST LEVER

92154-3923

$37.72

92154A

BOLT,FLANGED,10X16

92154-7395

$9.19

92154B

BOLT,FLANGED,10X19.5

92154-7396

$8.85

92161

DAMPER

92161-1065

$2.84

92161A

DAMPER

92161-1084

$1.89

92161B

DAMPER,SEAT

92161-1489

$2.31

92172

SCREW,TAPPING,5X16

92172-0427

$1.81

92172A

SCREW,TAPPING,6X20

92172-0488

$2.11

92173

CLAMP

92173-1423

$1.14

92200

WASHER,16X22X2

92200-1798

$1.20

120

BOLT-SOCKET,6X12

120CA0612

$1.27

130

BOLT-FLANGED,8X12

130AA0812

$0.68

130A

BOLT-FLANGED,12X20

130BA1220

$2.84

130B

BOLT-FLANGED,8X16

130CA0816

$1.77

130C

BOLT-FLANGED,10X50

130CA1050

$2.93

132

BOLT-FLANGED-SMALL,6X14

132BB0614

$1.77

482

CIRCLIP-TYPE-E,12MM

482EA0200

$1.83

482A

CIRCLIP-TYPE-E,4MM

482J4000

$1.03
