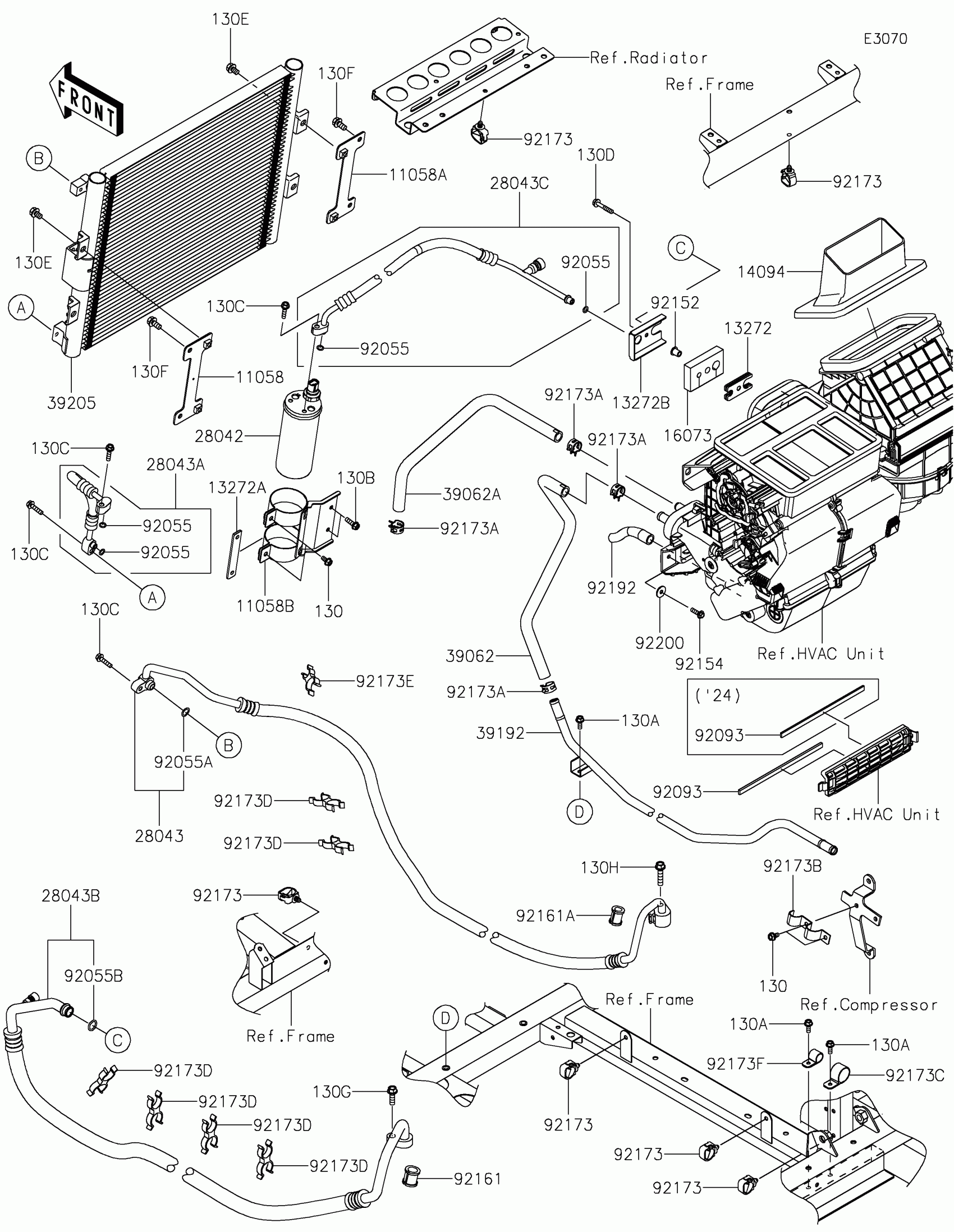

Kawasaki RIDGE® HVAC Heat Exchanger Equipment Diagram

#

Description
Price

11058

BRACKET,CONDENSER LH

11058-0293

$10.10

11058A

BRACKET,CONDENSER RH

11058-0294

$10.20

11058B

BRACKET,RECEIVER

11058-1341

$28.62

13272

PLATE,A/C UNIT

13272-4098

$19.20

13272A

PLATE,RECEIVER DRIER

13272-4099

$2.41

13272B

PLATE,INSULATOR

13272-4205

$10.20

14094

COVER

14094-0255

$23.73

16073

INSULATOR

16073-0944

$5.92

28042

RECEIVER-DRIER

28042-0001

$131.31

28043

HOSE-REFRIGERANT

28043-0001

$464.55

28043A

HOSE-REFRIGERANT

28043-0002

$225.77

28043B

HOSE-REFRIGERANT

28043-0004

$408.16

28043C

HOSE-REFRIGERANT

28043-0005

$340.16

39062

HOSE-COOLING,PIPE-A/C UNIT

39062-0967

$32.47

39062A

HOSE-COOLING,A/C UNIT-FITTING

39062-0968

$23.69

39192

PIPE-WATER,HEAD-A/C UNIT

39192-0725

$24.02

39205

HEAT EXCHANGER

39205-0001

$653.46

92055

RING-O

92055-1751

$3.83

92055A

RING-O

92055-1773

$3.83

92055B

RING-O

92055-1774

$5.08

92093

SEAL

92093-0835

$3.98

92152

COLLAR

92152-0413

$8.46

92154

BOLT,FLANGED,6X20

92154-0107

$2.10

92161

DAMPER

92161-2474

$5.10

92161A

DAMPER

92161-2475

$4.97

92173

CLAMP

92173-0861

$2.11

92173A

CLAMP

92173-2285

$3.51

92173B

CLAMP

92173-2547

$2.59

92173C

CLAMP

92173-2548

$5.39

92173D

CLAMP

92173-2549

$7.25

92173E

CLAMP

92173-2550

$7.25

92173F

CLAMP

92173-2551

$2.58

92192

TUBE,DRAIN

92192-2674

$5.27

92200

WASHER,6.5X20X1.6

92200-0283

$1.08

130

BOLT-FLANGED,6X12

130BA0612

$1.25

130A

BOLT-FLANGED,6X16

130BA0616

$0.97

130B

BOLT-FLANGED,6X20

130BA0620

$1.28

130C

BOLT-FLANGED,6X25

130BA0625

$0.97

130D

BOLT-FLANGED,6X35

130BA0635

$0.78

130E

BOLT-FLANGED,8X12

130BA0812

$0.79

130F

BOLT-FLANGED,8X16

130BA0816

$0.89

130G

BOLT-FLANGED,8X25

130BA0825

$2.01

130H

BOLT-FLANGED,8X35

130BA0835

$1.13
