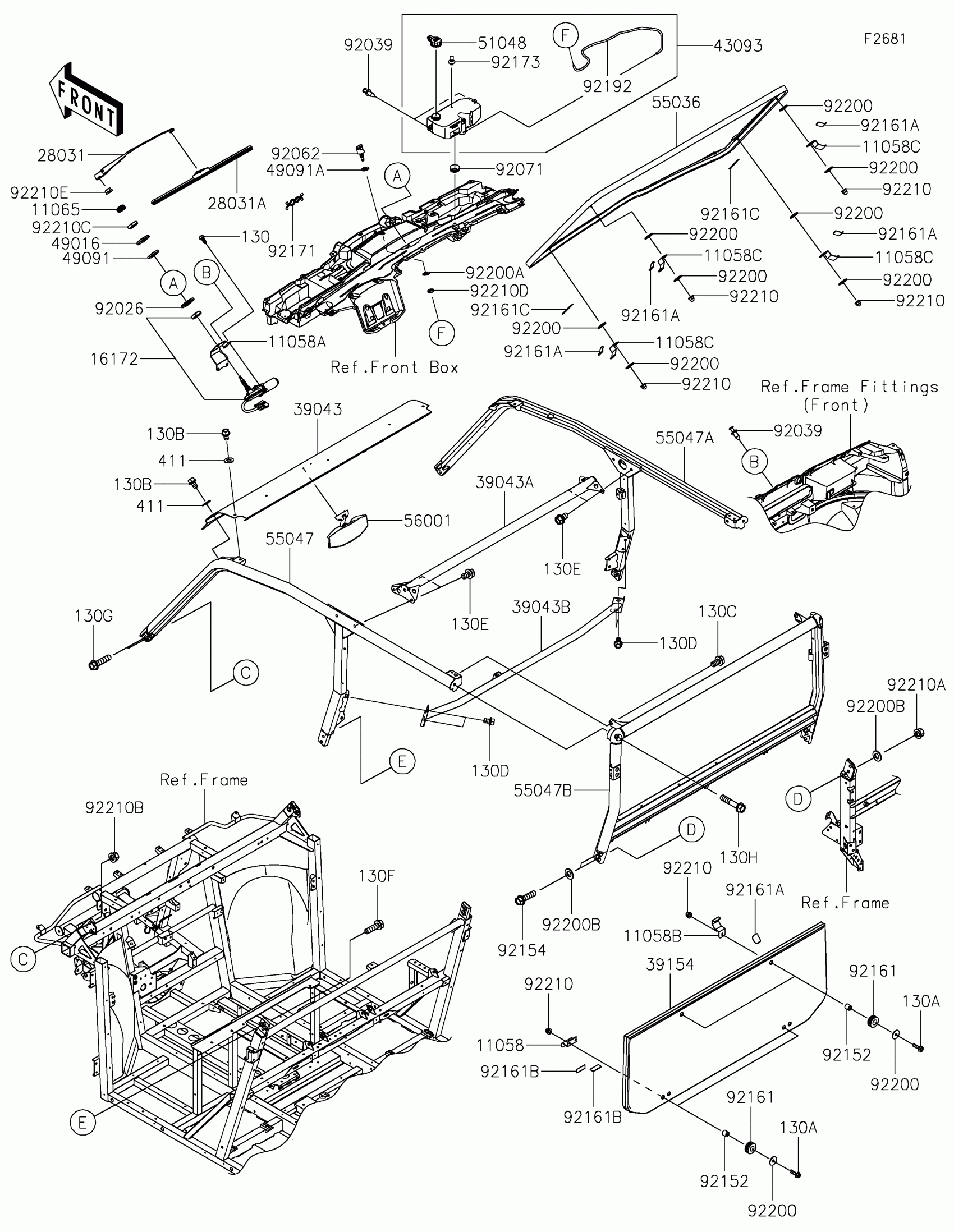

Kawasaki RIDGE® CREW HVAC Guards/Cab Frame Diagram

#

Description
Price

11058

BRACKET,WINDSHIELD MOUNT,LWR

11058-0288

$4.86

11058A

BRACKET,WIPER ACTUATOR

11058-2306

$24.53

11058B

BRACKET,WINDSHIELD MOUNT

11058-2330

$8.64

11058C

BRACKET,WINDSHIELD MOUNT

11058-2798

$8.64

11065

CAP,ACTUATOR

11065-1495

$0.80

16172

ACTUATOR,WIPER

16172-0575

$294.66

28031

WIPER,ARM

28031-0006

$30.73

28031A

WIPER,BLADE

28031-0007

$36.24

39043

CROSSMEMBER-COMP,UPP,FR,T.BLK

39043-0037-388

$133.17

39043A

CROSSMEMBER-COMP,B-P,UPP,T.BLK

39043-0044-388

$114.51

39043B

CROSSMEMBER-COMP,B-P,MID,T.BLK

39043-0045-388

$126.18

39154

WINDSHIELD,RR

39154-0419

$371.84

43093

RESERVOIR-ASSY-TANK,WASHER

43093-0013

$84.30

49016

COVER-SEAL

49016-0722

$0.80

49091

WASHER-SEAL

49091-0014

$0.80

49091A

WASHER-SEAL

49091-0015

$0.58

51048

CAP-ASSY-TANK,RESERVOIR

51048-0614

$11.39

55036

WINDSHIELD-ASSY,FR

55036-0063

$770.57

55047

BAR-COMP,A/B-PILLAR,LH,T.BLACK

55047-0419-388

$629.97

55047A

BAR-COMP,A/B-PILLAR,RH,T.BLACK

55047-0420-388

$629.97

55047B

BAR-COMP,C-PILLAR,T.BLACK

55047-0468-388

$602.99

56001

MIRROR-ASSY,REAR VIEW

56001-0447

$90.31

92026

SPACER,16.3X35X3.6

92026-0973

$12.08

92039

RIVET

92039-0776

$0.80

92062

NOZZLE,SPRAY

92062-0588

$7.81

92071

GROMMET

92071-1115

$4.14

92152

COLLAR,6.5X12X11

92152-0692

$4.95

92154

BOLT,FLANGED,12X50

92154-7768

$8.36

92161

DAMPER

92161-2500

$1.02

92161A

DAMPER,45X35X1.5

92161-2600

$3.98

92161B

DAMPER,20X56X1.5

92161-2639

$1.49

92161C

DAMPER,100X15X1

92161-2650

$2.03

92171

CLAMP

92171-0476

$3.51

92173

CLAMP,RESERVOIR TANK

92173-2872

$4.12

92192

TUBE,4X8X830

92192-2824

$11.53

92200

WASHER,6.5X22X1.6

92200-1087

$3.01

92200A

WASHER,8.4X16X1.6

92200-2705

$1.32

92200B

WASHER,13.8X26X2.3

92200-2830

$5.54

92210

NUT,CAP,6MM

92210-0003

$0.60

92210A

NUT,12MM

92210-0603

$6.85

92210B

NUT,FLANGED,12MM

92210-1932

$2.78

92210C

NUT,HEX,16MM

92210-2208

$2.10

92210D

NUT,HEX,8MM

92210-2209

$1.02

92210E

NUT,FLANGED,8MM

92210-2215

$0.64

130

BOLT-FLANGED,6X14

130BA0614

$0.97

130A

BOLT-FLANGED,6X22

130BB0622

$2.79

130B

BOLT-FLANGED,10X14

130CA1014

$2.31

130C

BOLT-FLANGED,12X22

130CA1222

$3.29

130D

BOLT-FLANGED,10X14

130CB1014

$2.71

130E

BOLT-FLANGED,12X20

130CB1220

$3.93

130F

BOLT-FLANGED,12X40

130CB1240

$2.64

130G

BOLT-FLANGED,12X50

130CB1250

$5.92

130H

BOLT-FLANGED,12X60

130CB1260

$7.49

411

WASHER-PLAIN,10MM

411AA1000

$0.81
