2025 Kawasaki Ridge® Crew Hvac Front Suspension Diagram

← All diagrams

Find the part on the Front Suspension diagram for your 2025 Kawasaki Ridge® Crew Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

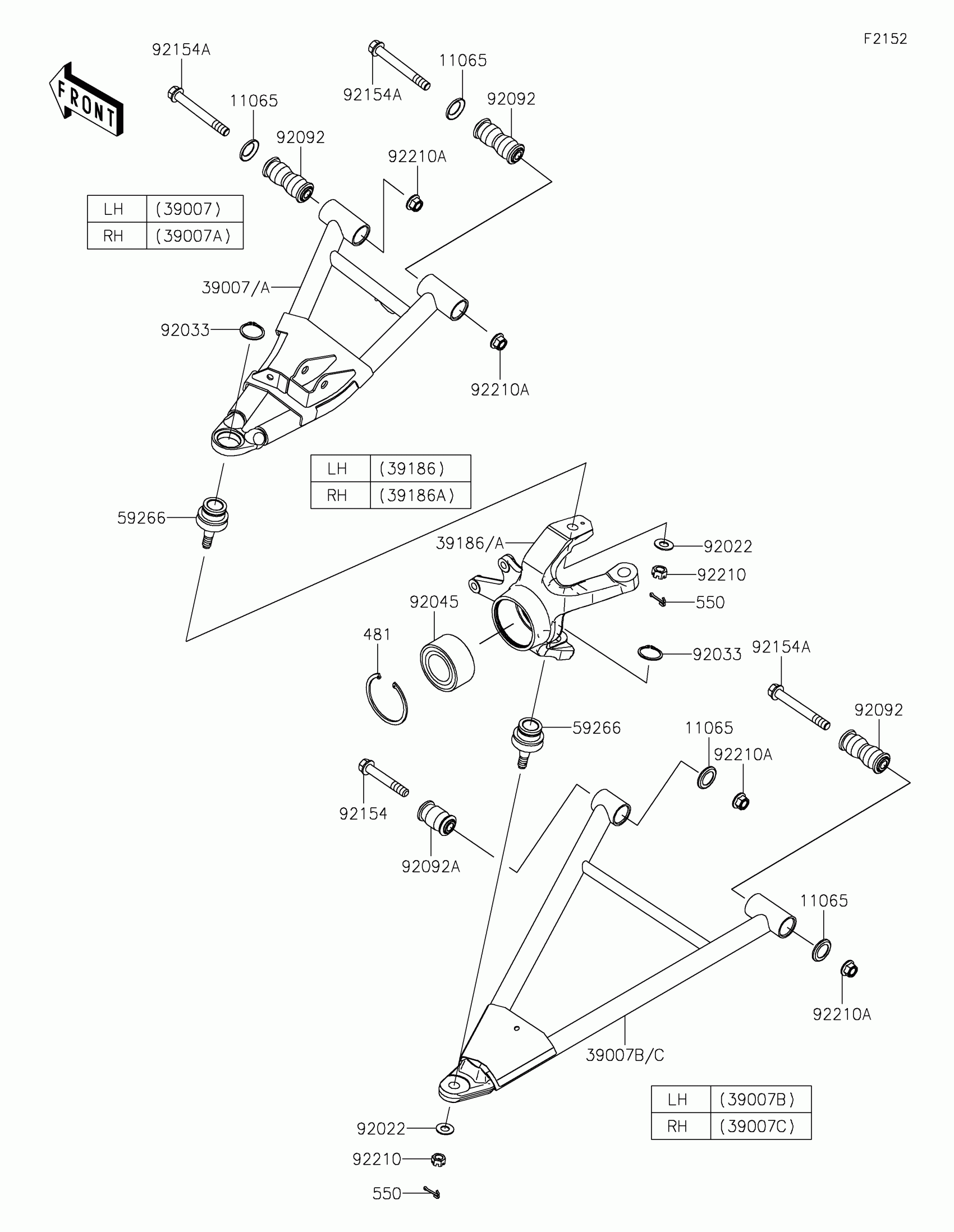

2025 Kawasaki Ridge® Crew Hvac Front Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,ARM

11065-0838

1
Out of stock

39007

ARM-SUSP,FR,UPP,LH,BLACK

39007-0487-10

1
Out of stock

39007A

ARM-SUSP,FR,UPP,RH,BLACK

39007-0488-10

1
Out of stock

39007B

ARM-SUSP,FR,LWR,LH,BLACK

39007-0489-10

1
Out of stock

39007C

ARM-SUSP,FR,LWR,RH,BLACK

39007-0490-10

1
Out of stock

39186

KNUCKLE,FR,LH

39186-0335

1
Out of stock

39186A

KNUCKLE,FR,RH

39186-0336

1
Out of stock

59266

JOINT-BALL

59266-0711

1
Out of stock

92022

WASHER

92022-1831

1
Out of stock

92033

RING-SNAP,C-TYPE,32MM

92033-1262

1
Out of stock

92045

BEARING-BALL,40X74X36

92045-0919

1
Out of stock

92092

BUSHING-RUBBER,12X20X78

92092-0028

1
Out of stock

92092A

BUSHING-RUBBER

92092-0555

1
Out of stock

92154

BOLT,FLANGED,12X76.5

92154-7079

1
Out of stock

92154A

BOLT,FLANGED,12X100

92154-7081

1
Out of stock

92210

NUT,CASTLE,12MM

92210-0395

1
Out of stock

92210A

NUT,LOCK,FLANGED,12MM

92210-1931

1
Out of stock

481

CIRCLIP-TYPE-C

481J7500

1
Out of stock

550

PIN-COTTER,3.0X25

550AA3025

1
Out of stock
