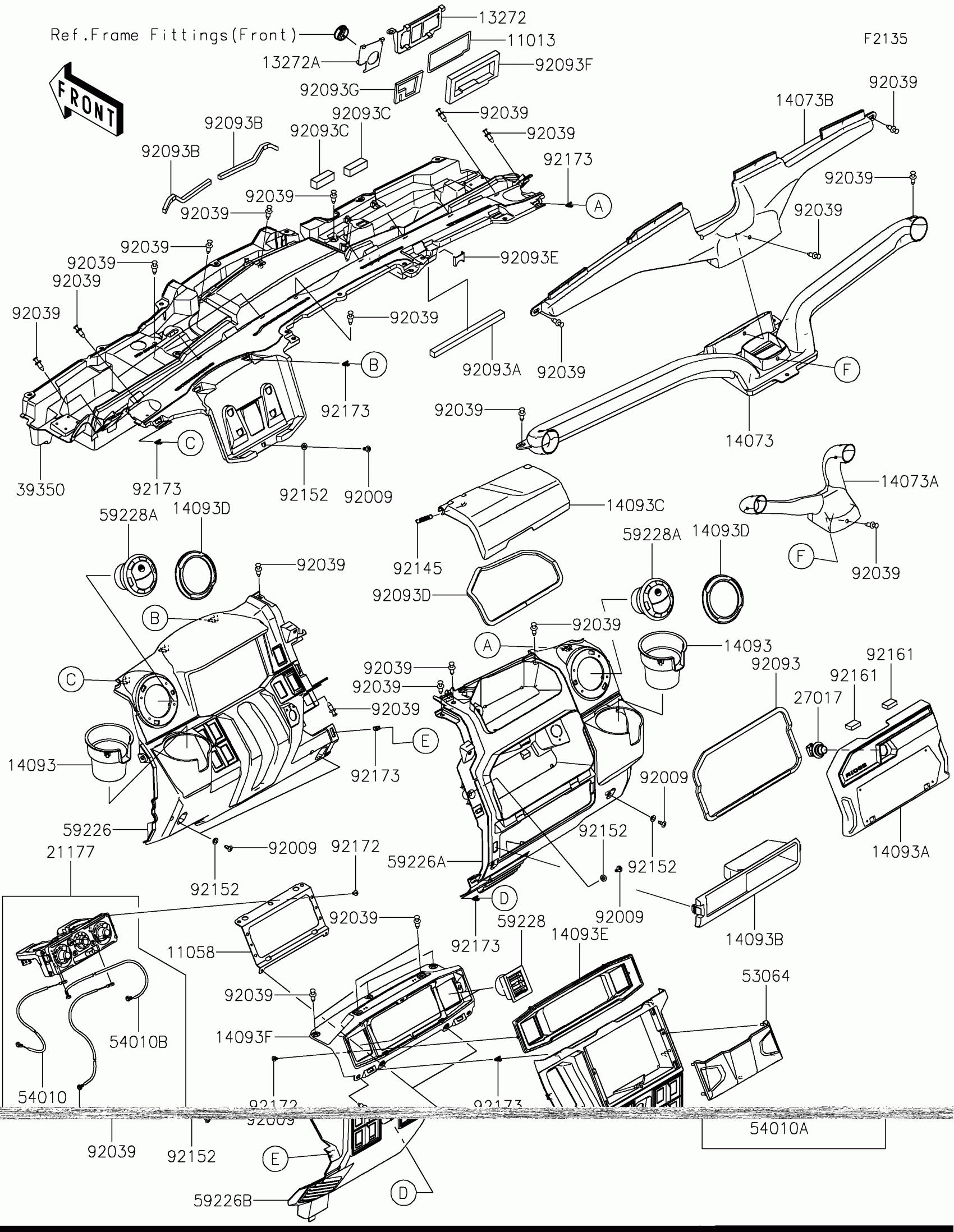

Kawasaki RIDGE® CREW HVAC Front Box Diagram

#

Description
Price

11013

ELEMENT-AIR FILTER,HVAC,OUT

11013-0839

$5.95

11058

BRACKET,HVAC

11058-0261

$11.27

13272

PLATE,HVAC FILTER,OUT

13272-7051

$9.51

13272A

PLATE,HVAC FILTER,IN

13272-7080

$7.97

14073

DUCT,HVAC,SIDE

14073-1883

$50.12

14073A

DUCT,HVAC,CENTER

14073-1884

$38.24

14073B

DUCT,HVAC,DEFROSTER

14073-1885

$49.36

14093

COVER,CUP HOLDER

14093-1329

$3.42

14093A

COVER,GLOVE BOX

14093-1337

$17.00

14093B

COVER,STORAGE BOX,SIDE,LWR

14093-1338

$6.61

14093C

COVER,STORAGE BOX,SIDE,UPP,GRY

14093-1339-72J

$16.36

14093D

COVER,LOUVER,SIDE,S.BLACK

14093-1373-839

$5.75

14093E

COVER,LOUVER,CNT,S.BLACK

14093-1374-839

$10.10

14093F

COVER,HVAC CONTROLLER

14093-1377

$11.47

21177

CONTROLLER,HVAC

21177-0009

$561.84

27017

LOCK,PUSH

27017-0572

$20.97

39350

PANEL,DASHBOARD

39350-0005

$110.14

53064

NET-CARGO

53064-0017

$13.75

54010

CABLE,HVAC MODE

54010-0654

$98.13

54010A

CABLE,HVAC TEMP

54010-0655

$105.86

54010B

CABLE,HVAC R/F

54010-0656

$60.60

59226

PANEL-CONTROL,LH,D.GRAY

59226-0763-72J

$42.45

59226A

PANEL-CONTROL,RH,D.GRAY

59226-0764-72J

$42.45

59226B

PANEL-CONTROL,INSTRUMENT,CNT

59226-0788

$504.66

59228

LOUVER,CENTER

59228-0001

$5.95

59228A

LOUVER,SIDE

59228-0002

Unavailable

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92039

RIVET

92039-0776

$0.80

92093

SEAL

92093-0776

$2.12

92093A

SEAL,15X15X235

92093-0782

$7.24

92093B

SEAL,10X10X110

92093-0785

$2.29

92093C

SEAL,10X10X60

92093-0786

$1.59

92093D

SEAL,10X6X705

92093-0795

$13.98

92093E

SEAL

92093-0816

$4.71

92093F

SEAL,HVAC FILTER,OUT

92093-0824

$22.64

92093G

SEAL,HVAC FILTER,IN

92093-0825

$8.61

92145

SPRING,REAR BRAKE

92145-2219

$1.83

92152

COLLAR,6.3X9.5X4.1

92152-1571

$4.53

92161

DAMPER,20X30X9

92161-2786

$1.69

92172

SCREW,TAPPING,5X10

92172-0262

$1.04

92173

CLAMP

92173-1423

$1.14
