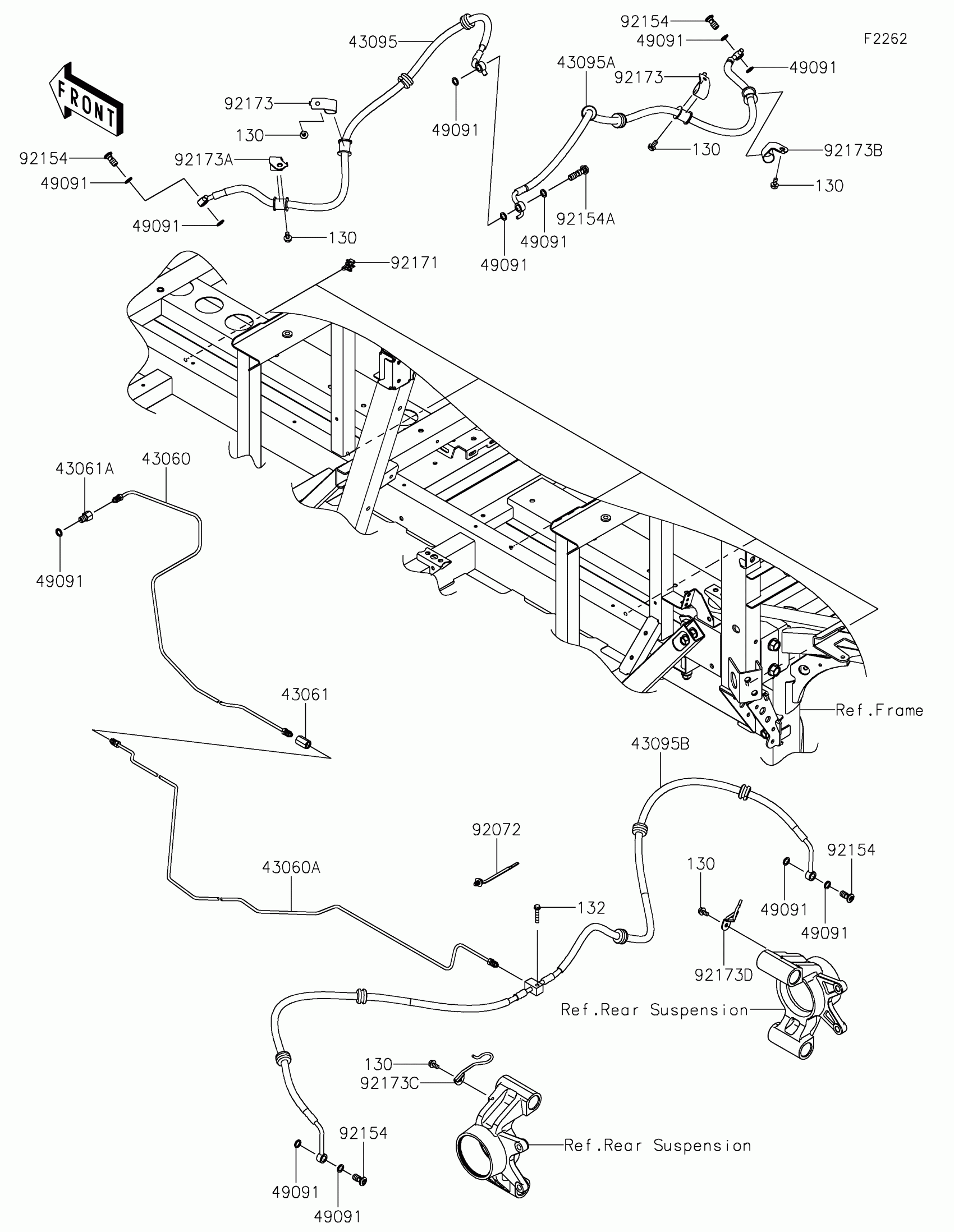

Find the part on the Brake Piping diagram for your 2025 Kawasaki Ridge® Crew Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ridge® Crew Hvac Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43060

PIPE-BRAKE,FR

43060-0356

1

$28.54

In stock

43060A

PIPE-BRAKE,RR

43060-0357

1

$33.15

In stock

43061

JOINT-BRAKE

43061-0003

1

$47.25

In stock

43061A

JOINT-BRAKE,M/C

43061-0302

1

$33.87

In stock

43095

HOSE-BRAKE,921MM

43095-1875

1

$50.20

In stock

43095A

HOSE-BRAKE,1072.5MM

43095-1876

1

$60.53

In stock

43095B

HOSE-BRAKE

43095-1877

1

$100.94

In stock

49091

1

$1.81

In stock

92072

1

$2.97

In stock

92154

1

$6.43

In stock

92154A

BOLT,OIL,10X34.5

92154-1398

1

$7.47

In stock

92171

CLAMP

92171-0805

1

$3.11

In stock

92173

CLAMP

92173-1216

1

$3.14

In stock

92173A

CLAMP

92173-2539

1

$10.95

In stock

92173B

CLAMP

92173-2540

1

$10.95

In stock

92173C

CLAMP

92173-2541

1

$16.66

In stock

92173D

CLAMP

92173-2542

1

$16.66

In stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

132

1

$2.17

In stock
