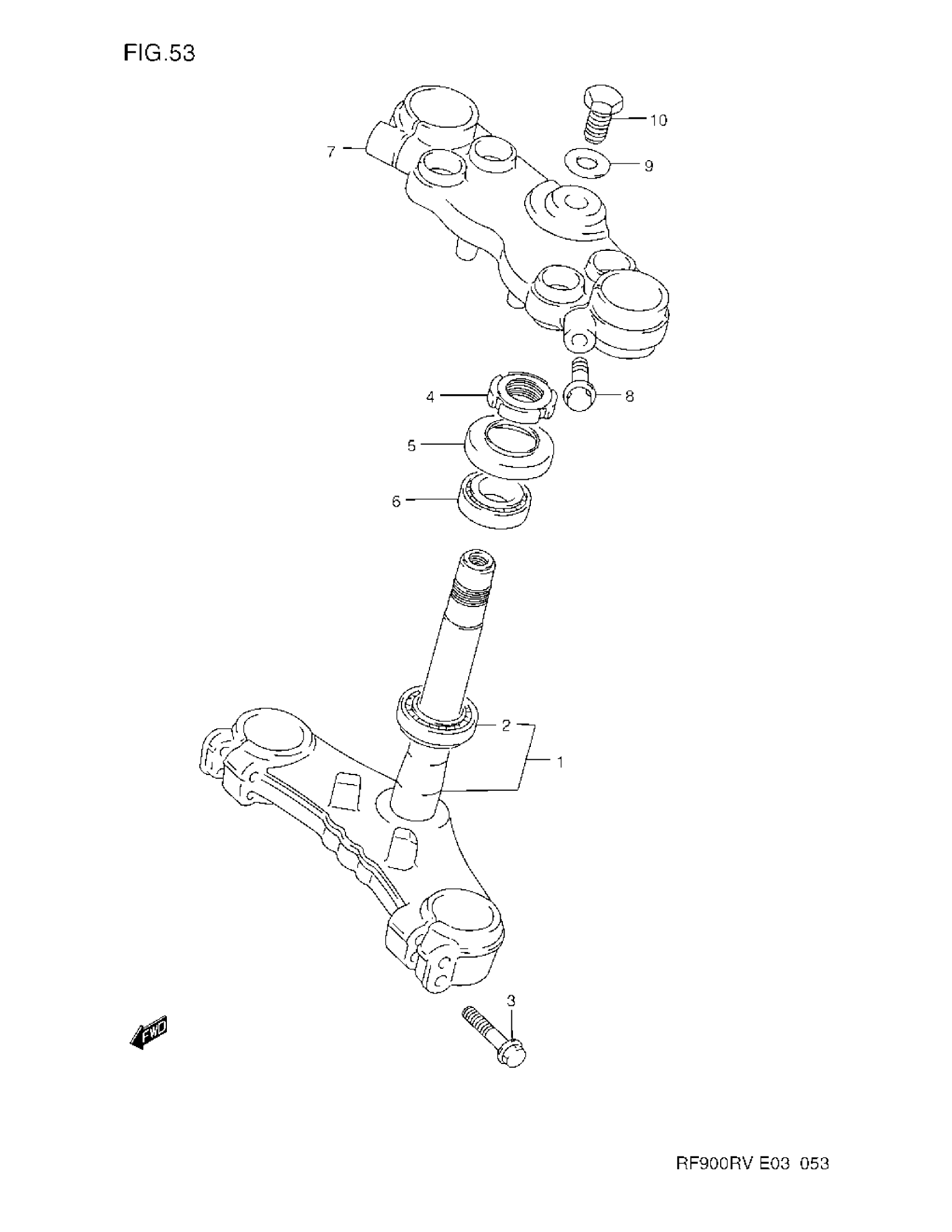

Suzuki RF900RV (1997) STEERING STEM Diagram

#

Description

Price

1

STEM, STEERING | Includes Item(s) 2

51410-31E01

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$52.22

3

BOLT, LOWER

01550-08407

$2.63

4

NUT, STEERING STEM

51631-28000

$19.60

5

DUST COVER, STEERING UPPER

51643-49002

$13.92

6

BEARING (25X47X15)

09265-25019

$61.43

7

HEAD, STEERING STEM

51311-31E00

Unavailable

8

BOLT (8X35) This part replaces 01550-08353.

01550-0835A

$2.80

9

WASHER

51356-43530

$7.40

10

BOLT, STEM HEAD

51352-43530

$17.40
