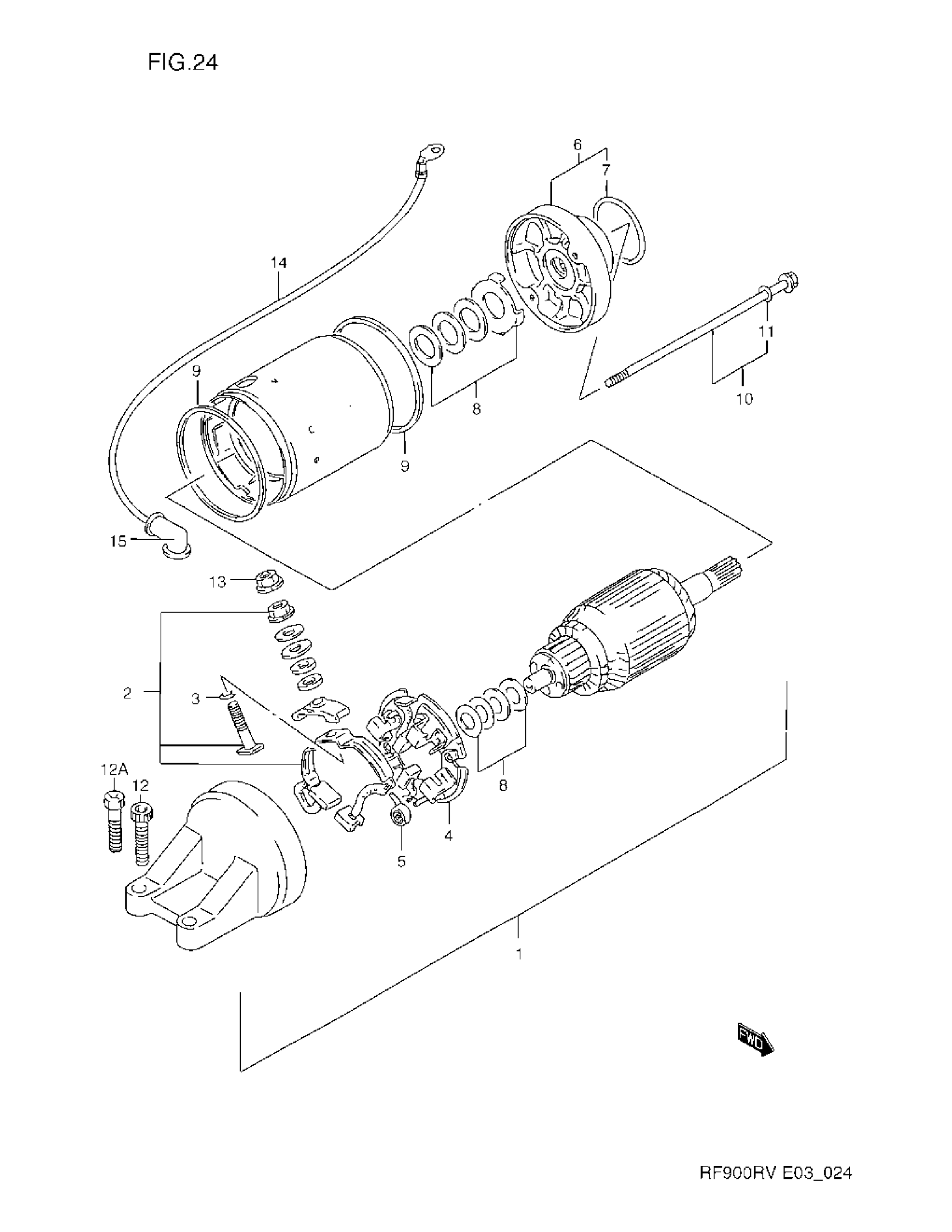

Suzuki RF900RV (1997) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR, STARTING | Includes Item(s) 2 - 11

31100-46E00

Unavailable

2

TERMINAL SET, BRUSH

31130-19B10

$31.78

3

O RING

31143-49040

$3.50

4

BRUSH HOLDER SET

31132-46E00

Unavailable

5

SPRING, BRUSH

31135-31300

$6.59

6

BRACKET ASSY, FRONT

31150-46E00

Unavailable

7

.O RING | MODEL R/S This part replaces 31156-46E00.

31156-48B00

$13.57

7

O RING | MODEL T/V

31156-48B00

$13.57

8

WASHER SET

31170-19B10

$14.18

9

O RING This part replaces 31264-31300.

31264-32E00

$6.29

10

BOLT ASSY

31280-19B10

Unavailable

11

O RING

31143-49040

$3.50

12

BOLT, CENTER | MODEL R This part replaces 07120-06253.

07120-0625A

$2.50

12A

BOLT, STARTING MOTOR | MODEL S/T/V This part replaces 09128-06024.

09103-06212

$2.53

13

NUT This part replaces 08361-35068.

08361-3506A

$1.81

14

WIRE, STARTER MOTOR | Includes Item(s) 15

33810-21E00

Unavailable

15

CAP

31861-48B10

$7.40
