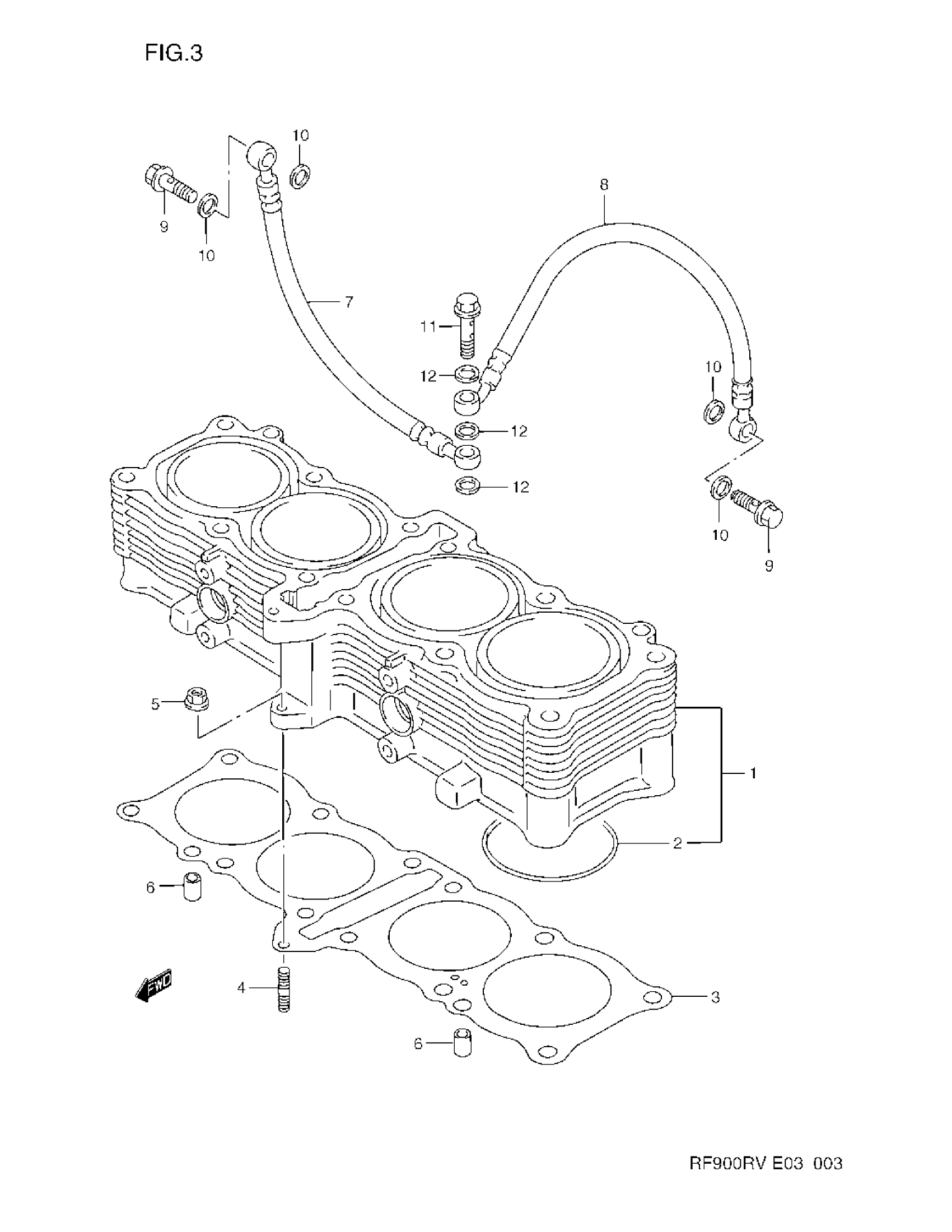

Suzuki RF900RV (1997) CYLINDER Diagram

#

Description
Price

1

CYLINDER | Includes Item(s) 2

11210-31E00

Unavailable

2

O RING (D:2.6,ID:69.6)

09280-71004

$21.60

3

GASKET, CYLINDER

11241-31E00

Unavailable

4

STUD BOLT This part replaces 01421-06203.

01421-0620A

$1.89

5

NUT This part replaces 08316-10063.

08316-1006B

$2.50

6

PIN

04211-11189

$1.80

7

HOSE, OIL RH

11281-21E00

Unavailable

8

HOSE, OIL LH

11282-21E00

Unavailable

9

BOLT,OIL PIPE This part replaces 11284-17E00.

09360-08013

$13.23

10

GASKET (8.2X14X1)

09168-08016

$1.64

11

NO DESCRIPTION AVAILABLE This part replaces 11285-32C00.

09360-10052

Unavailable

12

WASHER (10X15X1.5)

09161-10009

$1.83
