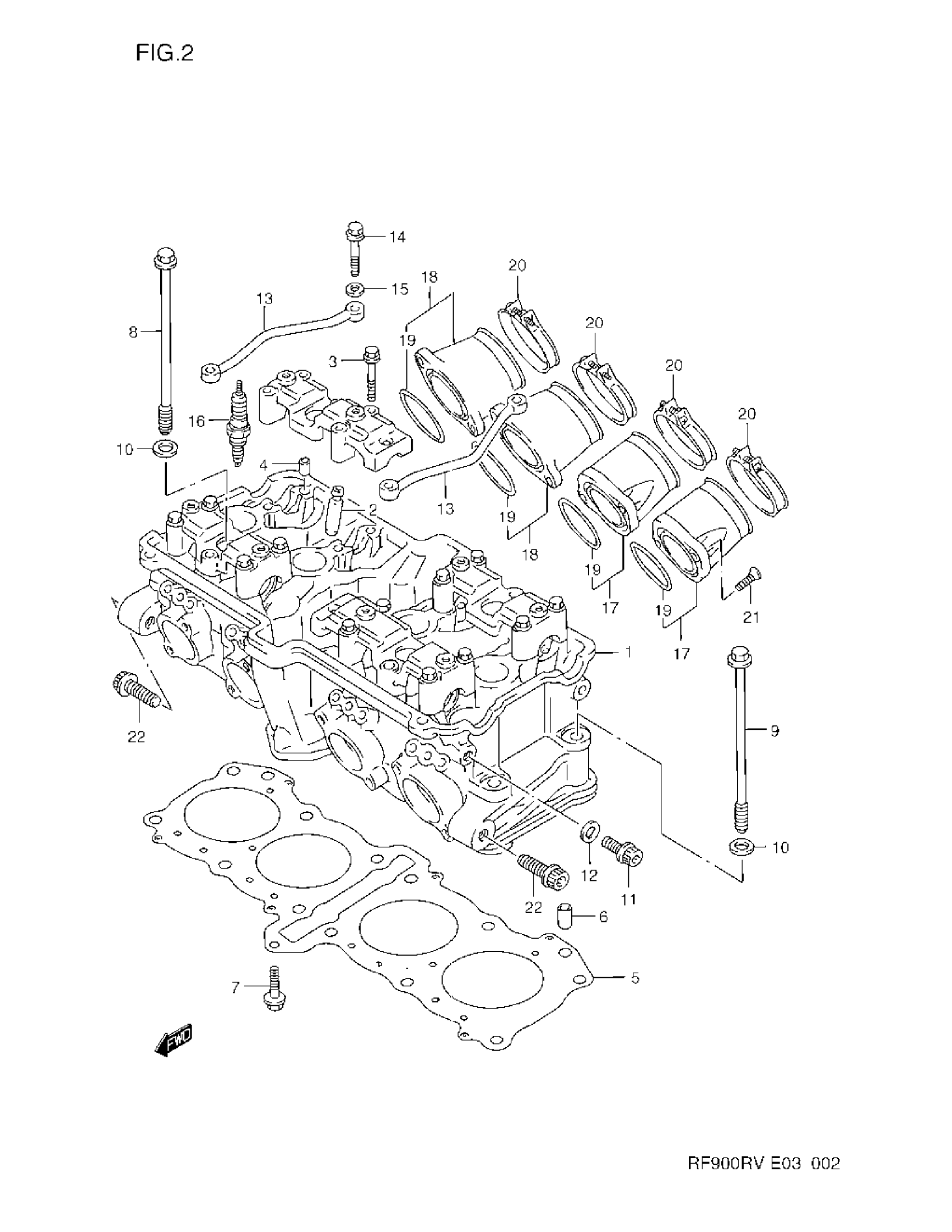

Suzuki RF900RV (1997) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-31E00

Unavailable

1

HEAD ASSY, CYLINDER | CALIFORNIA ONLY; Includes Item(s) 2 - 4

11100-31E10

Unavailable

2

GUIDE, VALVE

11115-17E70

Unavailable

3

BOLT (6X45)

09103-06165

$3.30

4

PIN

09206-08001

$1.77

5

GASKET, CYLINDER HEAD

11141-31E00

Unavailable

6

PIN

04211-11189

$1.80

7

BOLT This part replaces 01550-06303.

01550-0630A

$2.31

8

BOLT (10X175) | ~E.NO.110822 This part replaces 09103-10270.

09103-10276

$14.44

8

BOLT (10X175) | E.NO.110823~

09103-10276

$14.44

9

BOLT (10X175)

09103-10276

$14.44

10

WASHER

09160-10082

$1.62

11

BOLT This part replaces 07120-08163.

07120-0816A

$2.80

12

GASKET

09168-08015

$2.77

13

PIPE, OIL

11131-17E00

Unavailable

14

BOLT (6X39)

09103-06026

$1.84

15

.WASHER This part replaces 08322-01063.

08322-0106B

$2.24

16

PLUG SPARK (CR9E)

09482-00458

$5.75

16

SPARK PLUG (DENSO,U27ESR-N)

09482-00459

$5.58

16

SPARK PLUG (NGK,CR8E) | OPT

09482-00456

$5.99

16

SPARK PLUG (NGK,CR10E) | OPT

09482-00460

$5.75

16

SPARK PLUG (DENSO,U24ESR-N) | OPT

09482-00457

$5.58

16

SPARK PLUG (DENSO,U31ESR-N) | OPT

09482-00461

$11.56

17

PIPE ASSY,INTAK | MODEL R/S This part replaces 13101-31E00.

13101-31E02

Unavailable

17

PIPE ASSY,INTAK | MODEL T/V This part replaces 13101-31E01.

13101-31E02

Unavailable

18

PIPE ASSY,INTAK | MODEL R/S This part replaces 13102-31E00.

13102-31E02

Unavailable

18

PIPE ASSY,INTAK | MODEL T/V; Includes Item(s) 19 This part replaces 13102-31E01.

13102-31E02

Unavailable

19

O RING (D:2.4,ID:41.7)

09280-42003

$7.80

20

CLAMP

09402-52208

$4.84

21

SCREW (6X16) | MODEL R/S

09126-06014

$2.07

21

SCREW,6X16 | MODEL T/V This part replaces 09120-06010.

09120-06010-XC0

$2.29

22

BOLT This part replaces 07120-10303.

07120-1030B

$5.63
