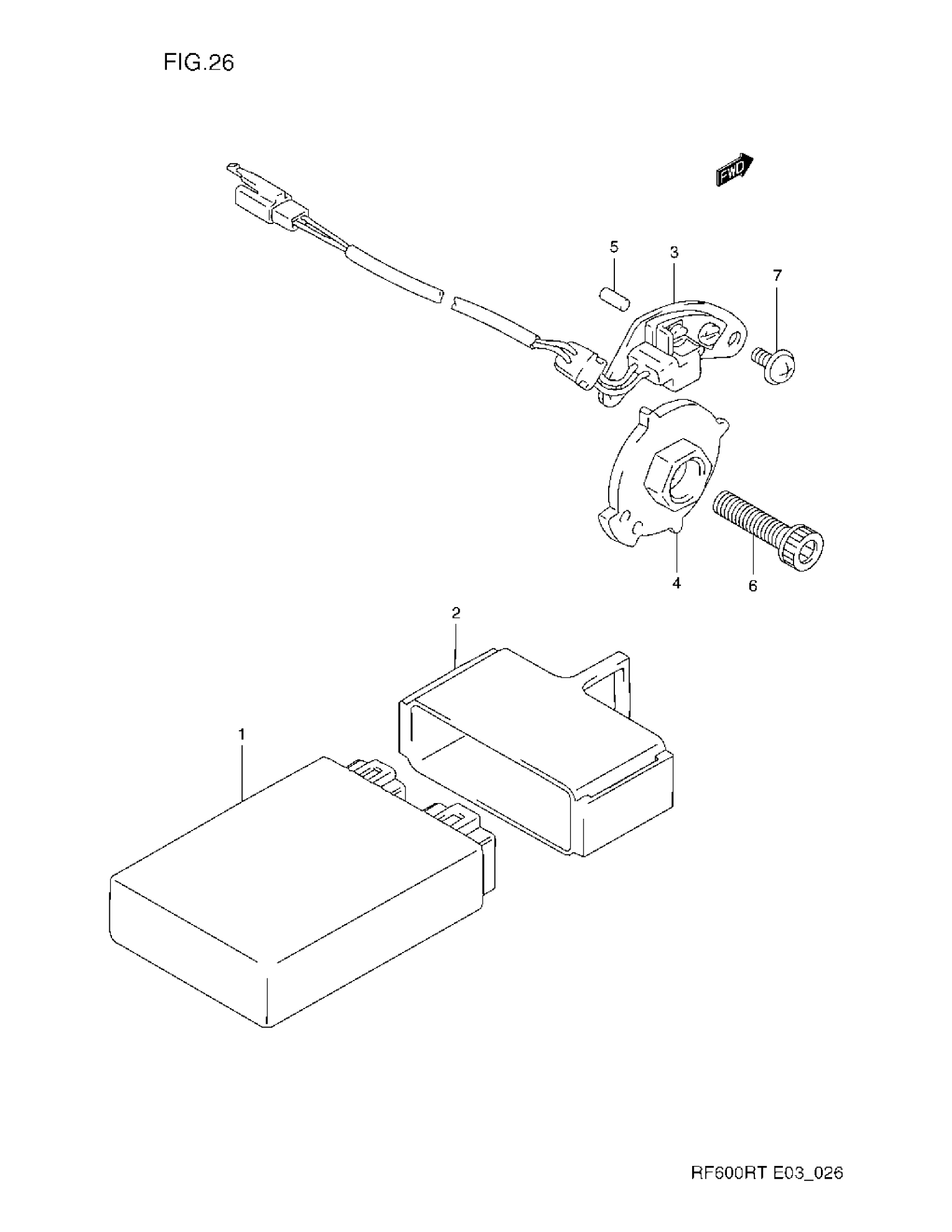

Suzuki RF600RT (1996) SIGNAL GENERATOR Diagram

#

Description

Price

1

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 32900-21E40.

32900-21E80

Unavailable

1

IGNITER ASSY | MODEL S/T

32900-21EA0

Unavailable

1

IGNITER ASSY | CALIFORNIA ONLY,MODEL R

32900-21E70

Unavailable

1

IGNITER ASSY | CALIFORNIA ONLY,MODEL S/T

32900-21EB0

Unavailable

2

CUSHION

32980-40C01

$17.88

3

SIGNAL GENERATOR ASSY

33110-17E00

Unavailable

4

ROTOR, SIGNAL

33120-17E20

Unavailable

5

PIN (4X13.8)

04221-04089

$1.10

6

BOLT, STEERING DAMPER This part replaces 07130-08303.

07130-0830A

$2.80

7

SCREW | MODEL R/S This part replaces 02142-05103.

02142-0510B

$1.77

7

SCREW, THROTTLE | MODEL T This part replaces 02112-05103.

02112-0510A

$1.43
