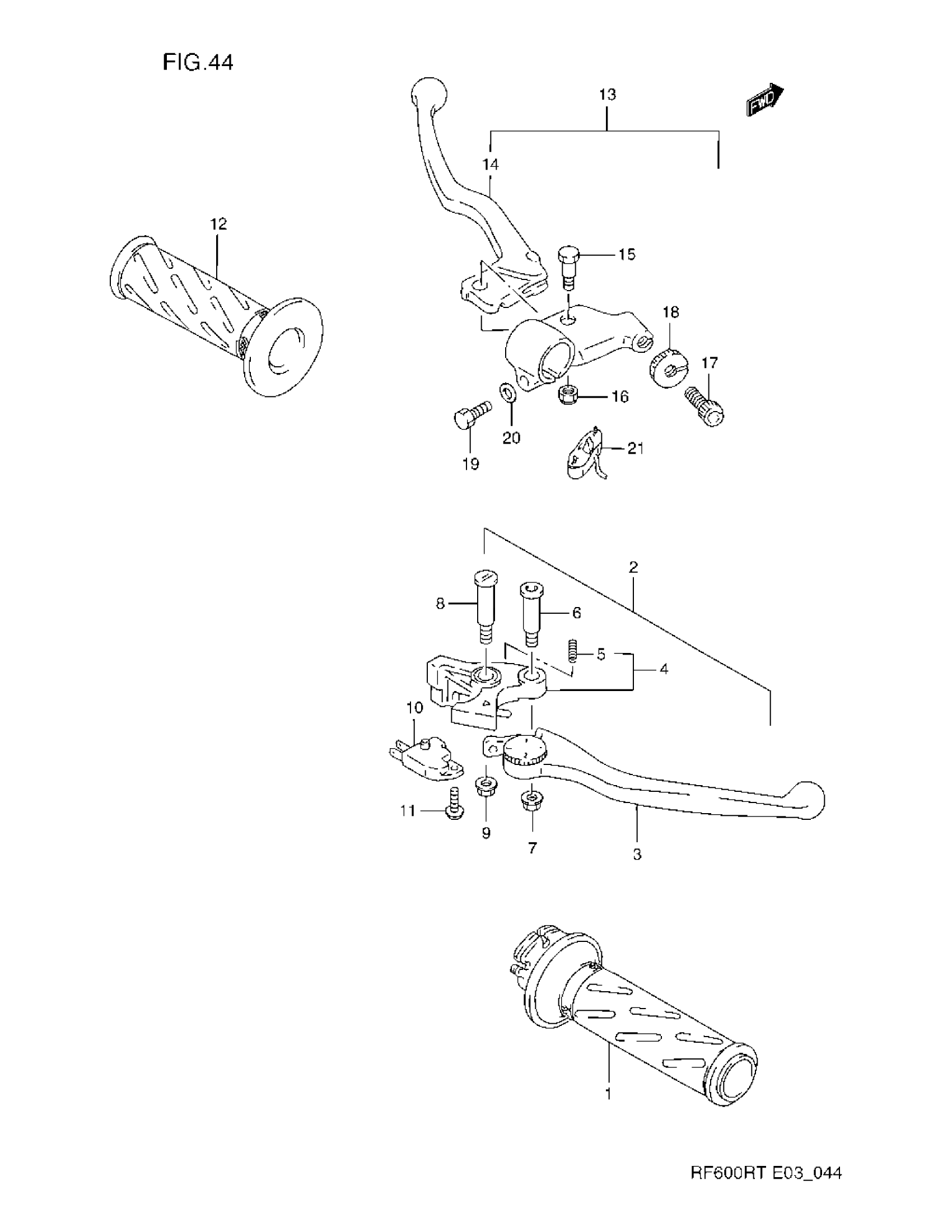

Suzuki RF600RT (1996) HANDLE LEVER Diagram

#

Description
Price

1

GRIP, THROTTLE | MODEL R/S This part replaces 57110-22D01.

57110-22D03

$26.73

1

GRIP, THROTTLE | MODEL T This part replaces 57110-22D02.

57110-22D03

$26.73

2

LEVER ASSY, BRAKE | Includes Item(s) 3 - 9 This part replaces 57300-40C01.

57300-40C10

$84.38

3

LEVER, ADJUST

57420-32C00

$26.47

4

KNOCKER This part replaces 57430-40C00.

57430-40C10

$66.87

5

SPRING

57438-32C00

$6.40

6

BOLT

57437-32C01

$9.70

7

NUT This part replaces 08319-31065.

08319-3106A

$2.01

8

BOLT, LEVER

57431-17C00

$6.51

9

NUT This part replaces 08316-16064.

08316-1006B

$2.50

10

SWITCH ASSY,FR BRAKE | Includes Item(s) 11 This part replaces 57460-17C00.

57460-14J02

$35.21

11

SCREW

57465-17C00

$2.37

12

GRIP, LH (BLACK) | MODEL R/S This part replaces 57211-22D00.

57211-22D02-291

$13.32

12

GRIP, LH (BLACK) | MODEL T This part replaces 57211-22D01.

57211-22D02-291

$13.32

13

LEVER ASSY, CLUTCH | Includes Item(s) 14 - 21

57500-19C01

Unavailable

14

LEVER This part replaces 57620-19C01.

57620-27A31

$20.25

15

BOLT

57431-49110

$5.95

16

.NUT This part replaces 08319-21065.

08319-2106B

$2.31

17

ADJUSTER

57441-44400

$5.91

18

NUT | ->57442-11010 This part replaces 57442-44400.

57442-11010

$2.80

18

NUT

57442-11010

$2.80

19

BOLT

01204-06204

$2.97

20

.WASHER This part replaces 08322-21064.

08322-0106B

$2.24

21

SWITCH ASSY, CLUTCH | <-57560-08A00

57560-18D10

Unavailable
