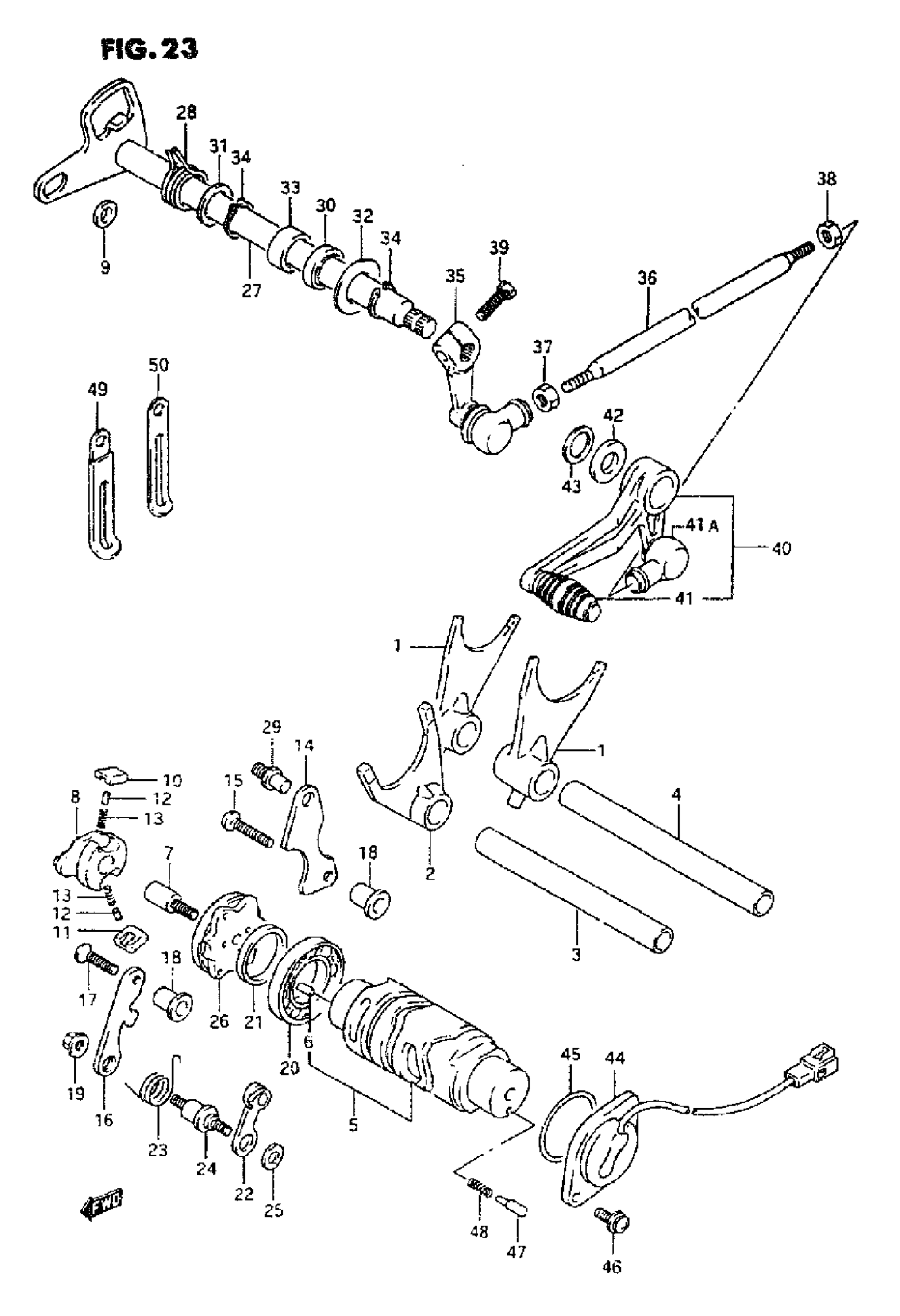

Suzuki RF600R (1995) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT This part replaces 25211-17E00.

25211-17E02

$81.95

2

FORK, GEAR SHIFT NO.3 This part replaces 25231-17E00.

25231-35F00

$119.43

3

SHAFT,GEAR SHIFT FORK (L:110)

25411-26D01

$28.98

4

SHAFT, FORK (L:128)

25411-27A00

$33.02

5

CAM, GEAR SHIFT This part replaces 25310-17E01.

25310-17E02

Unavailable

6

PIN (4X13.8)

04221-04089

$1.10

7

PIN, SHIFT CAM DRIVEN GEAR

25312-12C00

$9.08

8

SHIFTER, GEAR SHIFT CAM This part replaces 25322-33C00.

25322-33C01

$73.01

9

ROLLER

09180-07014

$3.71

10

PAWL, GEAR SHIFT NO.1

25323-34201

$6.61

11

PAWL, GEAR SHIFT NO.2

25324-34201

$6.80

12

PIN

09261-05003

$1.69

13

SPRING

09440-04003

$1.48

14

LIFTER, PAWL

25331-26D00

Unavailable

15

SCREW, SEAT SUPPORT BRK This part replaces 02112-06303.

02112-0630A

$1.80

16

GUIDE, CAM

25341-17E00

Unavailable

17

SCREW This part replaces 02122-06303.

02122-0630B

$2.07

18

SPACER

09180-06202

Unavailable

19

NUT This part replaces 08316-10063.

08316-1006B

$2.50

20

BEARING (25X47X8)

09262-25006

$23.05

21

WASHER (25X32X3)

09160-25059

$7.20

22

STOPPER, CAM

25350-26D01

$18.30

23

SPRING | MODEL R/S This part replaces 25355-26D10.

25355-26D21

Unavailable

23

SPRING | MODEL T

25355-26D21

Unavailable

24

SUPPORT, STOPPER

25356-12C00

$19.60

25

WASHER

08211-06141

$1.61

26

PLATE, STOPPER

25380-12B00

Unavailable

27

SHAFT, GEAR SHIFTING

25510-17E10

Unavailable

28

SPRING, SHIFT RETURN | MODEL R/S This part replaces 09444-20002.

09444-20003

$8.05

28

SPRING | MODEL I

09444-20003

$8.05

29

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.09

30

OIL SEAL

09283-14006

$6.04

31

WASHER, RH (14X22X1.0) This part replaces 08211-14221.

09181-14167

$2.55

32

WASHER, LH

09160-14016

$1.91

33

BEARING (14X20X12)

09263-14027

$12.21

34

CIRCLIP, SHIFT SHAFT This part replaces 08331-31146.

08331-3114A

$1.89

35

ARM,GEAR SHIFT This part replaces 25520-19C02.

25520-19C03

$32.63

36

ROD, GEAR SHIFT LINK (L:185) | MODEL R/S This part replaces 25525-21E00.

25525-21E10

$14.10

36

ROD, GEAR SHIFT LINK (L:185) | MODEL T

25525-21E10

$14.10

37

NUT

09140-06011

$1.37

38

.NUT

08310-00067

$1.83

39

BOLT

01500-06257

$1.97

40

LEVER ASSY,GEAR This part replaces 25600-17C03.

25600-33E01

$130.72

41

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.42

41

.COVER, DUST This part replaces 25526-47000.

25526-47001

$4.98

42

WASHER, SHIFT LEVER, R

09160-14052

Unavailable

43

WASHER (18X24X1)

09160-18022

$2.80

44

BODY, GEAR SHIFTING SWITCH

37720-48B00

$66.48

45

O RING (D:2.4.ID:35.5)

09280-35006

$2.80

46

SCREW This part replaces 02112-75163.

02112-7516A

$2.42

47

CONTACT

09209-05011

$2.02

48

SPRING

09440-04010

$1.52

49

CLAMP This part replaces 09404-06402.

09404-06039

$1.73

49

CLAMP (L:45)

09404-06429

$1.82

50

CLAMP (L:60) This part replaces 09404-06422.

09404-06429

$1.82

50

CLAMP(L:80) This part replaces 09404-06426.

09404-06036

$1.76

50

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76
