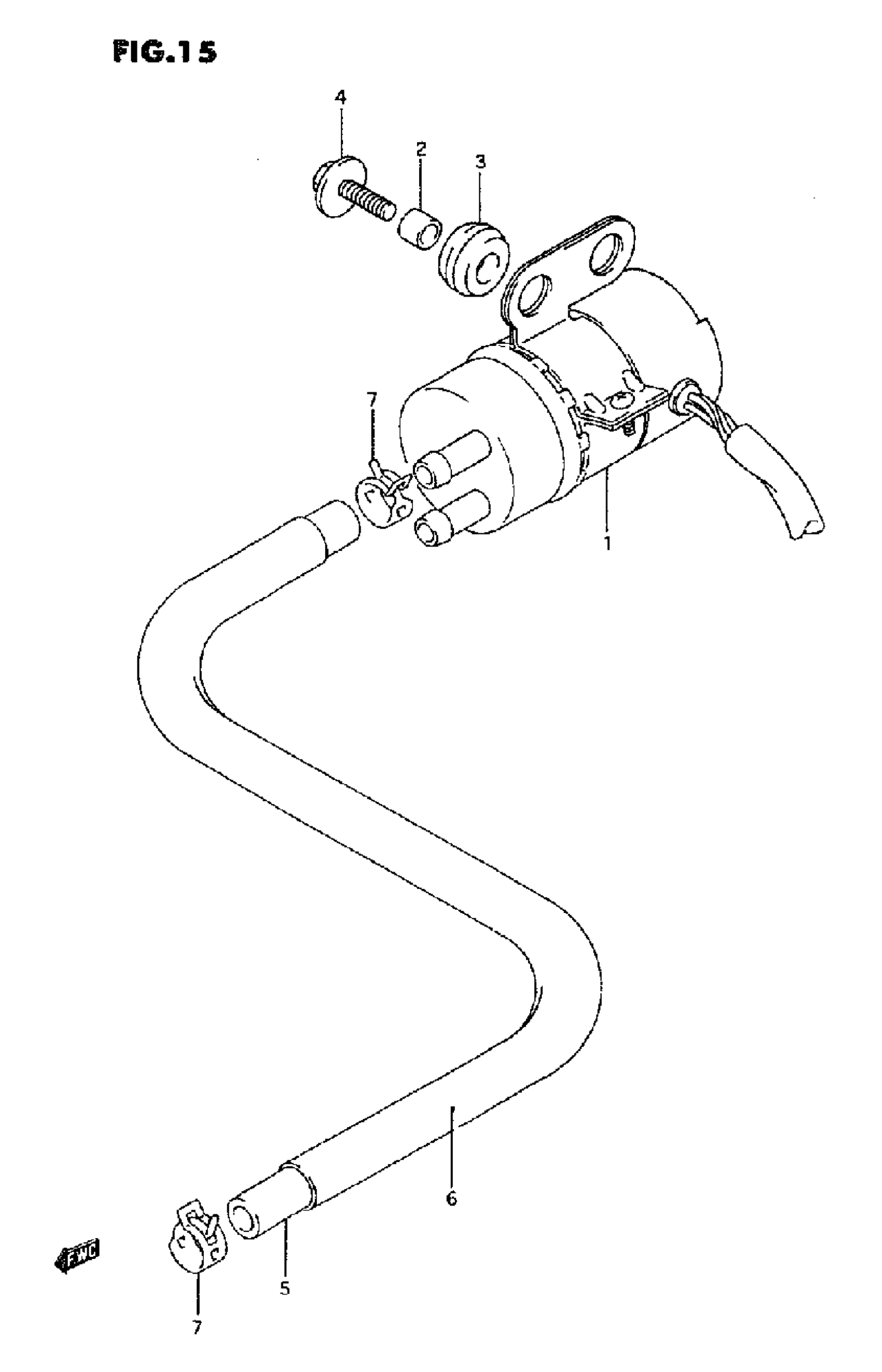

Suzuki RF600R (1995) FUEL PUMP Diagram

#

Description

Price

1

PUMP ASSY,FUEL This part replaces 15100-21E01.

15100-21E02

$249.42

2

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$1.68

3

CUSHION

09320-09009

$4.19

4

BOLT

09116-06010

$2.10

5

HOSE,6.5X11.5X6 | 600->370 MODEL R/S This part replaces 09354-70133-600.

44421-12FR0

$11.29

5

HOSE,6.5X11.5X6 | 600->380 MODEL T This part replaces 09354-70123-600.

44421-12FR0

$11.29

6

PROTECTOR | 600->330

09351-14152-600

$9.73

7

CLIP | MODEL R/S

09401-12404

$2.37

7

CLIP | MODEL T This part replaces 09401-11407.

09401-11415

$2.24
