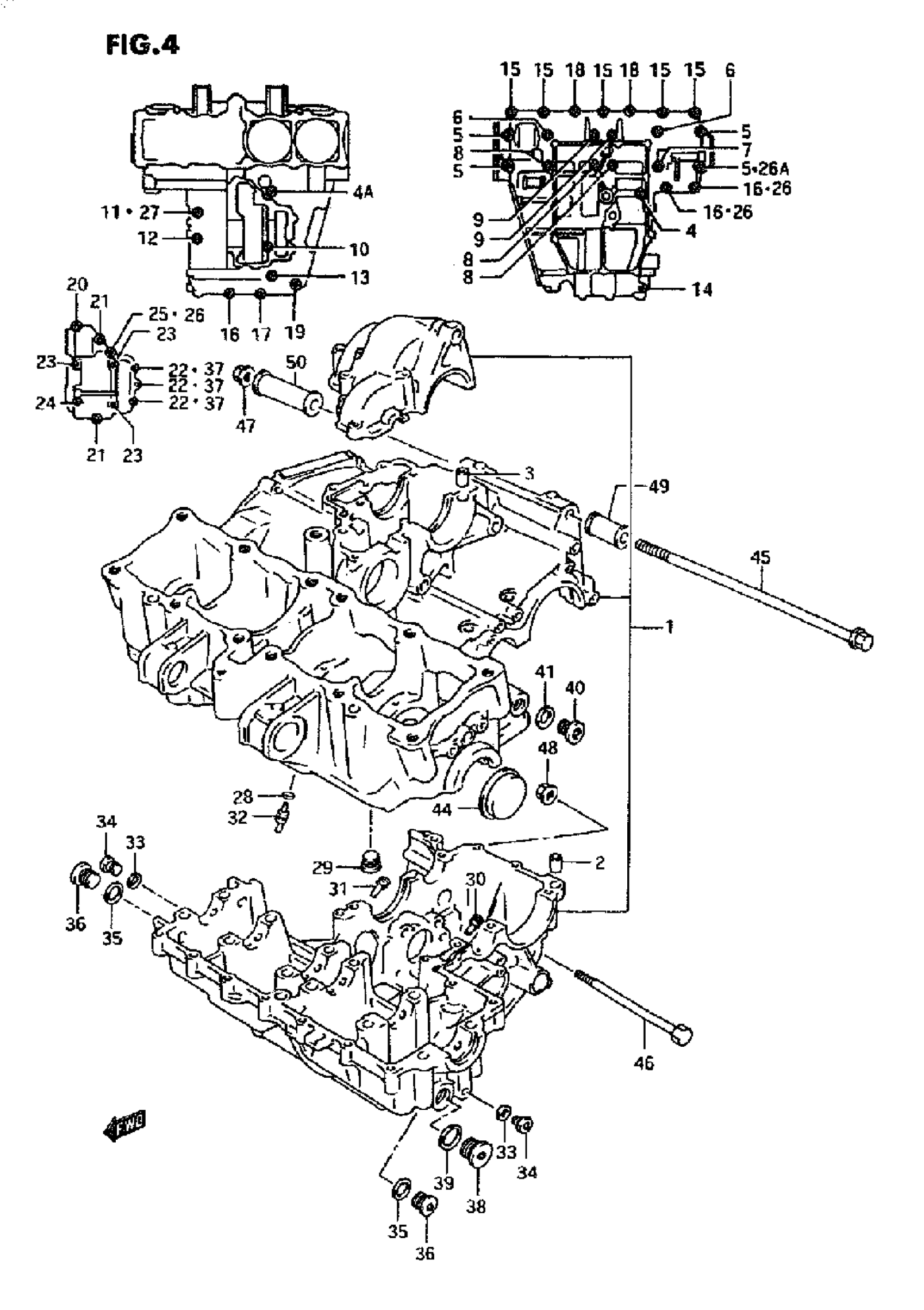

Suzuki RF600R (1995) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL R This part replaces 11300-17848.

11302-46876

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL S This part replaces 11302-46891.

11302-46893

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 11302-46892.

11302-46893

Unavailable

2

PIN

09206-13004

$2.44

3

PIN

04211-09129

$1.64

4

BOLT (6X105)

09103-06163

Unavailable

4

BOLT (6X105)

09103-06067

$3.00

5

NO DESCRIPTION AVAILABLE This part replaces 09103-09007.

09103-09007-XC0

Unavailable

6

BOLT (9X95)

09103-09008

$6.95

7

BOLT (9X105)

09103-09009

Unavailable

8

BOLT (9X115)

09103-09010

$10.77

9

BOLT (9X60)

09106-09001

Unavailable

10

BOLT This part replaces 07130-06753.

07130-0675B

$5.00

11

BOLT This part replaces 07130-08503.

07130-0850A

$4.53

12

BOLT This part replaces 07130-08603.

07130-0860B

Unavailable

13

BOLT This part replaces 07130-08803.

07130-0880B

Unavailable

14

BOLT This part replaces 01550-08603.

01550-0860A

$1.37

15

BOLT This part replaces 01550-06353.

01550-0635A

$2.31

16

BOLT This part replaces 01550-06403.

01550-0640A

$2.43

17

BOLT This part replaces 01550-06403.

01550-0640A

$2.43

18

BOLT This part replaces 01550-06503.

01550-0650A

$3.10

19

BOLT This part replaces 01550-06653.

01550-0665A

$2.90

20

BOLT This part replaces 07130-06253.

07130-0625B

$2.80

21

BOLT This part replaces 07130-06353.

07130-0635B

$3.04

22

BOLT, STATOR This part replaces 07130-06403.

07130-0640B

$3.10

23

BOLT This part replaces 07130-06503.

07130-0650B

$4.45

24

BOLT This part replaces 07130-06603.

07130-0660B

$5.10

25

BOLT (6X145)

09103-06062

Unavailable

26

GASKET

09168-06018

$1.70

26

.GASKET (10.2X20X2.3) | MODEL S/T

09168-10031

$2.01

27

GASKET (8.2X14X1)

09168-08016

$1.64

28

O RING

09280-04004

$1.76

29

PLUG (18X8) This part replaces 09248-18002.

09248-18011

$7.98

30

JET, OIL GALLERY MISSION L

09493-24010

$18.33

31

JET, OIL GALLERY MISSION R

09493-28012

$18.33

32

JET, OIL GALLERY PISTON | MODEL R

09493-80008

Unavailable

32

JET, OIL GALLERY PISTON | MODEL S/T

09493-26007

Unavailable

33

GASKET

09168-10002

$1.96

34

PLUG, OIL GALLERY

09248-10007

$7.07

35

GASKET

09168-16002

$1.89

36

PLUG, OIL DRAIN This part replaces 09248-16010.

09248-16012

$4.19

37

GASKET

09168-06024

$2.19

38

PLUG, LH

09248-22002

Unavailable

39

GASKET

09168-22002

$6.27

40

PLUG, OIL GALLERY

09248-14010

$7.03

41

GASKET

09168-14002

$2.83

42

BEARING, THRUST RH (GREEN) | SEE ILLUSTRATION ON FIG.7 (B-9)

12228-17E00-0D0

$8.95

43

BEARING, THRUST LH (RED) | SEE ILLUSTRATION ON FIG.7 (B-9)

12228-17E00-0A0

$12.85

43

BEARING, THRUST LH (BLACK)

12228-17E00-0B0

$9.12

43

BEARING, THRUST LH (BLUE)

12228-17E00-0C0

$9.12

43

BEARING, THRUST LH (GREEN)

12228-17E00-0D0

$8.95

43

BEARING, THRUST LH (YELLOW)

12228-17E00-0E0

$12.85

43

BEARING, THRUST LH (WHITE)

12228-17E00-0F0

$13.10

44

PLUG, CRANKCASE LH

09241-37002

$19.97

45

BOLT (10X280)

09103-10274

Unavailable

46

BOLT (12X140)

09103-12045

Unavailable

47

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.21

48

NUT This part replaces 08319-31128.

08319-3112A

$3.38

49

SPACER, LH (L:45)

11611-21E00

Unavailable

50

SPACER, RH (L:65)

11611-14210

Unavailable
