1995 Suzuki RF600R Alternator Diagram

← All diagrams

Find the part on the Alternator diagram for your 1995 Suzuki RF600R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

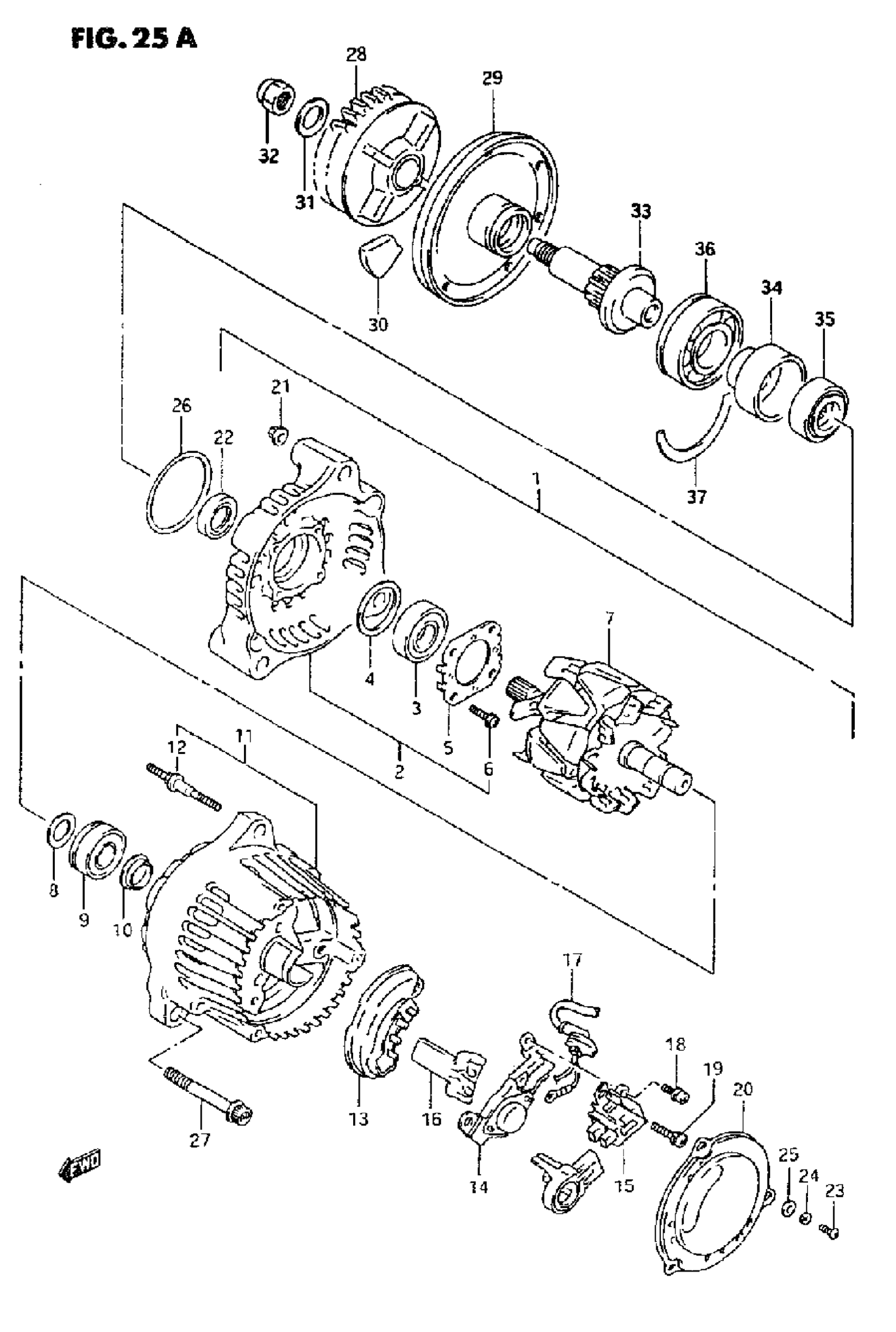

1995 Suzuki RF600R Alternator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ALTERNATOR ASSY

31400-17E30

1
Out of stock

2

FRAME, DRIVE END

31580-17E00

1
Out of stock

3

BEARING

31612-06B00

1
Out of stock

4

COVER, BEARING

31613-48B00

1
Out of stock

5

RETAINER, BEARING

31585-85251

1
Out of stock

6

SCREW, BEARING RETAINER

31586-17E00

4
Out of stock

7

ROTOR ASSY

31710-17E30

1
Out of stock

8

COVER (1)

31613-82610

1
Out of stock

9

BEARING

31612-48B00

1
Out of stock

10

COVER (2)

31613-27A10

1
Out of stock

11

FRAME, END

31611-17E00

1
Out of stock

12

STUD BOLT

31587-85250

2
Out of stock

13

HOLDER, RECTIFIER

31621-27A00

1
Out of stock

14

REGULATOR

32500-27A00

1
Out of stock

15

HOLDER, BRUSH

31656-48B00

1
Out of stock

16

COVER, RECTIFIER

31687-17E00

1
Out of stock

17

LEAD WIRE

31480-17E00

1
Out of stock

18

2

$1.67

In stock

19

SCREW (5X17)

31688-27A00

3
Out of stock

20

COVER

31614-17E00

1
Out of stock

21

NUT This part replaces 08310-00053.

08310-0005A

2
Out of stock

22

OIL SEAL SET

31780-27X50

1
Out of stock

23

SCREW This part replaces 02112-05085.

02112-0508A

3
Out of stock

24

LOCK WASHER This part replaces 08321-01053.

08321-0105A

3
Out of stock

25

3

$1.97

In stock

26

O RING

31156-17E00

1
Out of stock

27

BOLT This part replaces 07120-08653.

07120-0865B

3
Out of stock

28

GEAR, GENERATOR DRIVEN (NT:30)

22730-21E00

1
Out of stock

29

HOUSING, DAMPER This part replaces 22734-21E00.

22734-21E01

1
Out of stock

30

DAMPER

21231-17E10

8
Out of stock

31

WASHER

08211-12243

1
Out of stock

32

NUT

09159-12010

1
Out of stock

33

SHAFT, GENERATOR DRIVE

22732-46E00

1
Out of stock

34

HUB,GENERATOR D This part replaces 22736-46E00.

22736-46E01

1
Out of stock

35

COUPLING,GENERA This part replaces 22740-46E00.

22740-46E02

1
Out of stock

36

BEARING, GENERATOR DRIVE

09262-25116

1
Out of stock

37

C RING

09390-52003

1
Out of stock
