Description

Price

1

Crush Washer

420552280

$3.70

2

Drain Plug M18 X 1.5

420840278

$23.99

3

Oil Sieve

420256322

$28.49

4

Cover Sieve

420612070

$4.14

5

Taptite Screw M5 X 16

420941928

Unavailable

6

Oil Filter

420256188

$13.77

7

O-Ring

420230923

$3.29

8

Oil Filter cover

420612135

$11.99

9

Torx Flange Screw M6 X 25

420641238

$3.39

10

Oil Pressure Switch

420256915

$41.99

11

Oil Seal

420430325

$8.85

12

Radiator

420890181

$95.49

13

Torx Flange Screw M6 X 16

420641048

$2.99

14

Oil Dipstick

420256802

$17.05

15

O-Ring

420631640

$2.19

16

Pressure Relief Valve

420656370

$19.49

17

Compression Spring

420939485

$12.99

18

Housing

420256487

$7.59

19

Gasket Ring

420650465

$13.49

20

Plug Screw

420640271

$13.99

21

Idle Gear Ass'y, 28 Teeth | Includes 13 to 16

420434307

$91.99

22

Oil Seal

420430555

$19.99

23

Oil Pump Shaft

420237059

$31.99

24

Needle Pin

420232731

$4.09

25

Oil Pump Rotor

420256348

$79.99

26

Oil Pump Cover

420210646

$49.99

27

Torx Head Screw M5 X 16

420640823

$1.99

28

Thrust Washer

420827590

$4.09

29

Needle Pin

420232431

$4.49

30

Oil Pump Gear, 33 Teeth

420434320

$13.99

31

Snap Ring

420245330

$1.79

32

Location Pin 10 M6x50

420229302

$3.29

33

Idle Gear, 38 Teeth

420434300

$13.99

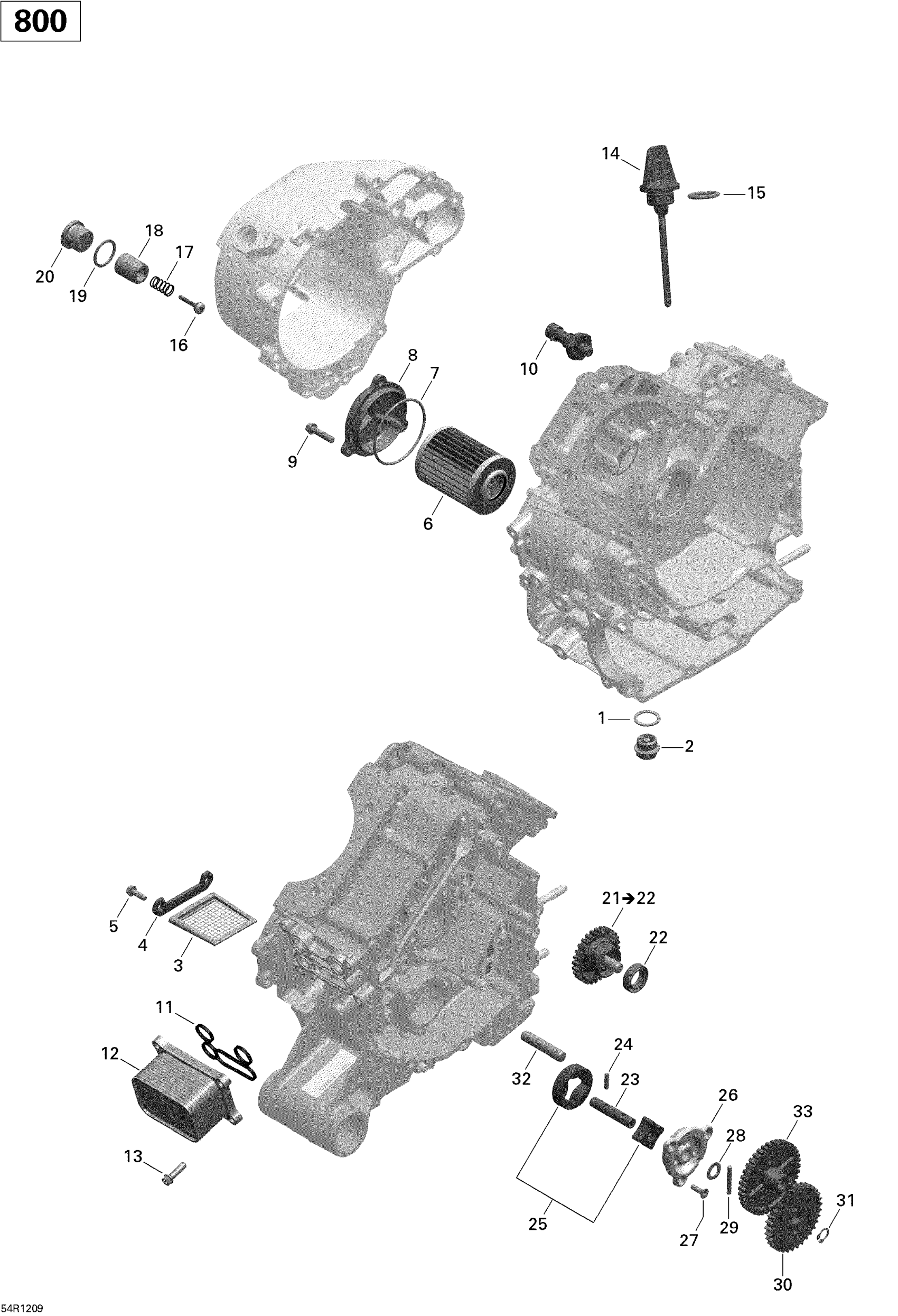

Can-Am Renegade STD, XXC, 800R EFI, 2012 Engine Lubrication Diagram

Crush Washer

Drain Plug M18 X 1.5

Oil Sieve

Cover Sieve

Taptite Screw M5 X 16

Oil Filter

O-Ring

Oil Filter cover

Torx Flange Screw M6 X 25

Oil Pressure Switch

Oil Seal

Radiator

Torx Flange Screw M6 X 16

Oil Dipstick

O-Ring

Pressure Relief Valve

Compression Spring

Housing

Gasket Ring

Plug Screw

Idle Gear Ass'y, 28 Teeth | Includes 13 to 16

Oil Seal

Oil Pump Shaft

Needle Pin

Oil Pump Rotor

Oil Pump Cover

Torx Head Screw M5 X 16

Thrust Washer

Needle Pin

Oil Pump Gear, 33 Teeth

Snap Ring

Location Pin 10 M6x50

Idle Gear, 38 Teeth
