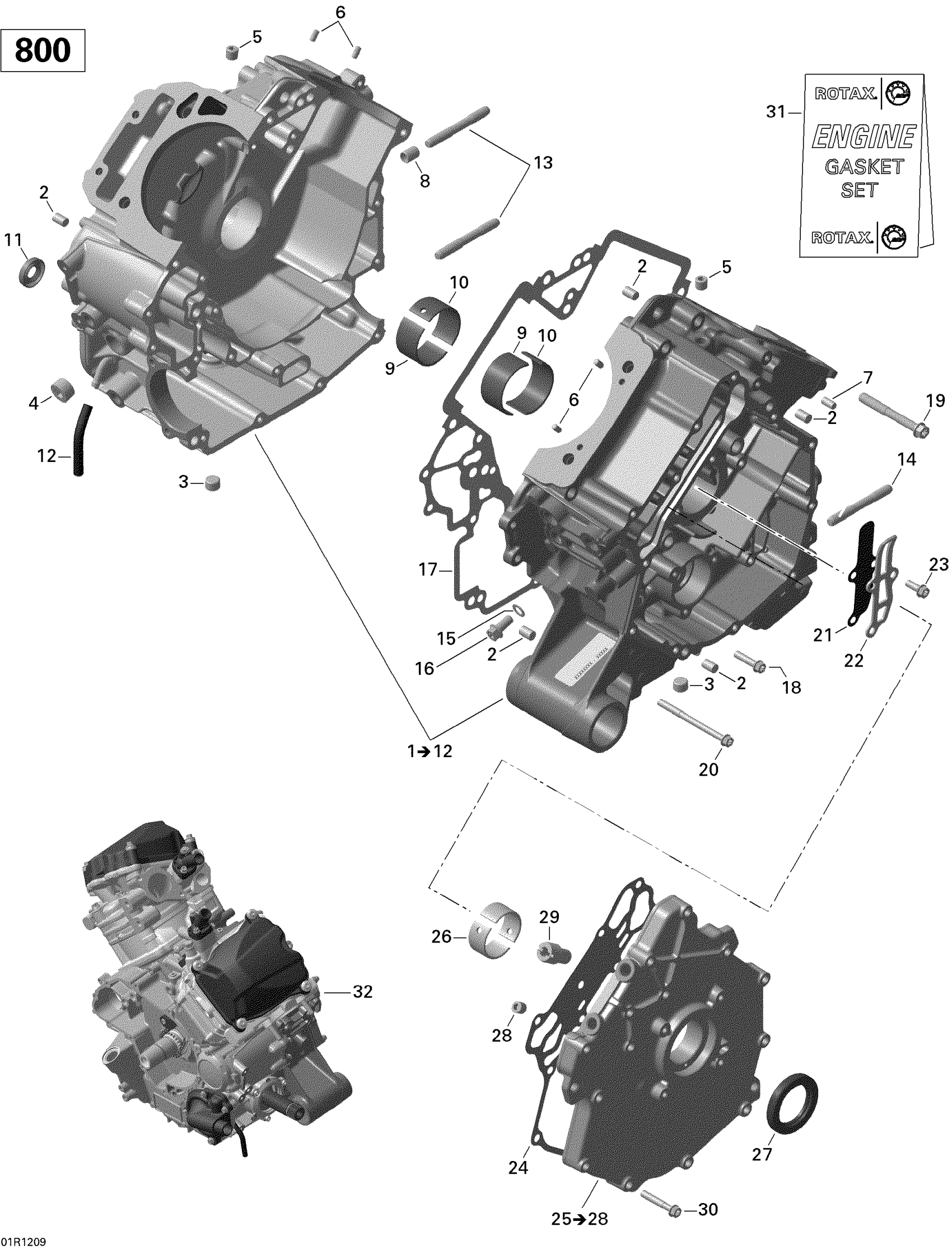

Can-Am Renegade STD, XXC, 800R EFI, 2012 Crankcase Diagram
#
Description
Price
1
Crankcase Ass'y | Includes 1 to 12
420685253
Unavailable
2
Center Pin 8 X 12
420632010
Unavailable
5
Plug Screw M10 X 1
420641323
Unavailable
6
Drive Pin 5 X 10
420929650
Unavailable
7
Needle Pin
420932780
Unavailable
8
Dowel Pin 10 X 13
420929670
Unavailable
9
Plain Bearing
420233960
Unavailable
10
Plain Bearing
420233965
Unavailable
12
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
13
Stud
420240816
Unavailable
14
Stud
420241019
Unavailable
16
Torx Flange Screw M8 X 16
420440852
Unavailable
17
Gasket
420651227
Unavailable
18
Torx Flange Screw M6 X 25
420641238
Unavailable
19
Torx Flange Screw M8 X 65
420440402
Unavailable
20
Torx Flange Screw M6 X 75
420440657
Unavailable
21
Reed Valve
420224721
Unavailable
22
Reed Valve Stop
420224725
Unavailable
23
Torx Flange Screw M6 X 16
420641048
Unavailable
24
Gasket
420651211
Unavailable
25
PTO Cover Ass'y | Includes 25a to 29
420612335
Unavailable
26
Bearing Sleeve
420233995
Unavailable
27
Oil Seal
420631933
Unavailable
28
Plug Screw M10 X 1
420641323
Unavailable
29
Hose Nipple
420256332
Unavailable
31
Gasket Kit, Engine
420684165
Unavailable
32
Long Block
420081022
Unavailable
