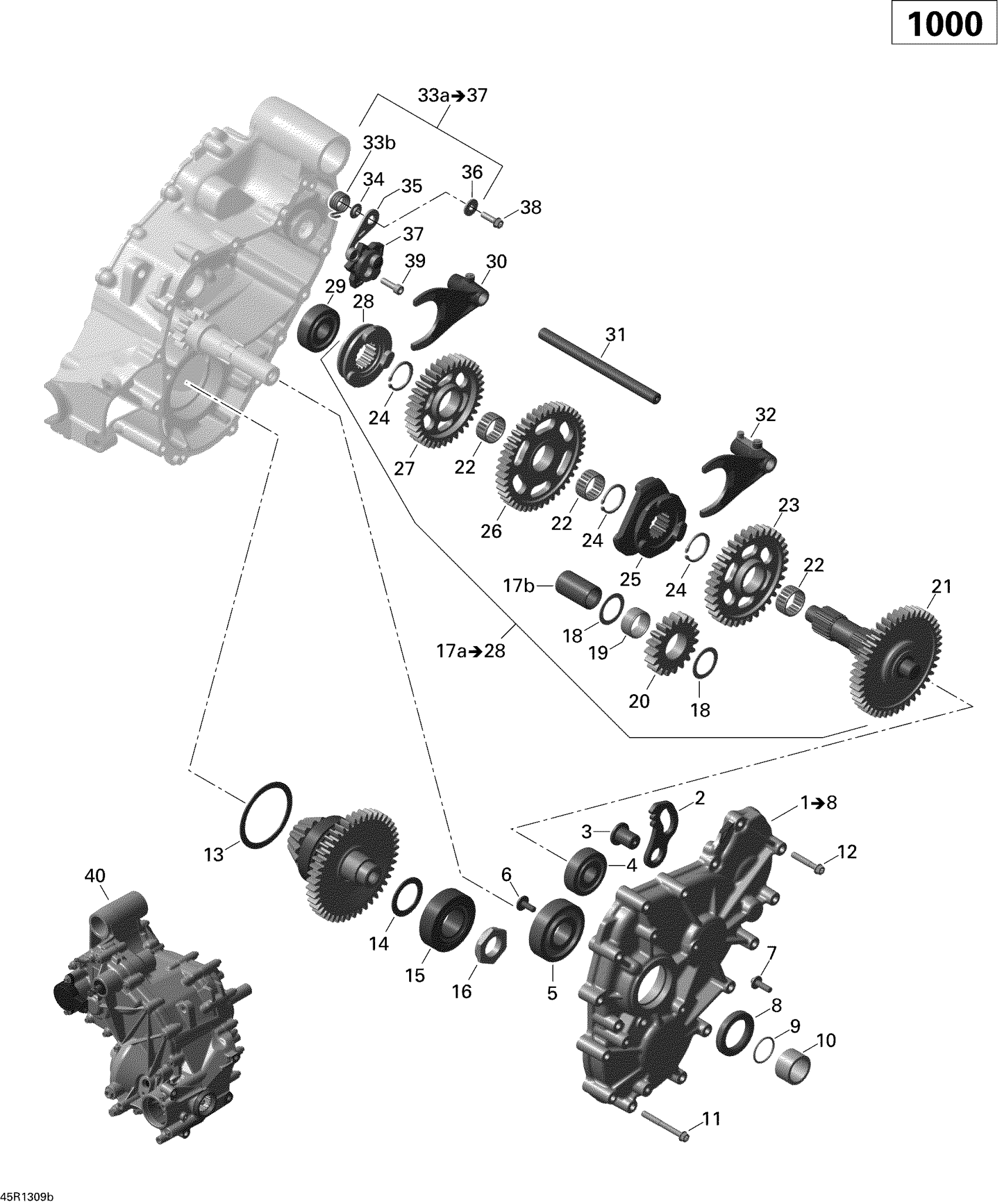

Can-Am Renegade STD, XXC, 1000 EFI, 2013 Gear Box 2 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Parking Lock Lever

420257659

$72.36

3

Collar Sleeve

420647123

$35.79

4

Ball Bearing

420932816

$39.52

5

Ball Bearing

420932822

$28.33

6

Torx Screw M6 X 16

420241529

$1.79

7

Distance Screw M6

420441433

$3.12

8

Oil Seal

420950089

$17.88

9

O-Ring

420631612

$4.04

10

Distance Ring

420247118

Unavailable

11

Torx Flange Screw M6 X 55

420440702

$2.91

12

Torx Flange Screw M6 X 35

420641258

$3.19

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17a

Gear Set | Includes 17a to 28

420281151

$679.07

17b

Not Available As Spare Part - Friction Washer

Unavailable

18

Thrust Washer

420427011

$5.13

19

Needle Bearing

420932930

$25.34

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Needle Bearing

420632070

$22.36

23

Gear Pinion, 34 Teeth

420434873

$80.57

24

Retaining Ring

420845772

$6.38

25

Shifting Sleeve

420257954

$76.84

26

Gear Pinion, 44 Teeth

420434861

Unavailable

27

Gear Pinion, 37 Teeth

420434855

$190.27

28

Shifting Sleeve

420257945

$90.27

29

Ball Bearing

420932816

$39.52

30

Shift Fork

420657365

$102.21

31

Pivot

420258394

$20.12

32

Shift Fork Ass'y

420657355

$111.91

33a

Index Lever | Includes 33a to 37

420248533

$58.18

33b

Not Available As Spare Part - Friction Washer

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Torx Flange Screw M6 X 20

420440207

$2.91

39

Allen Screw M6 X 20

420241939

$0.73

40

Boite Vitesses *Gear Box

420685804

$2,859.99
