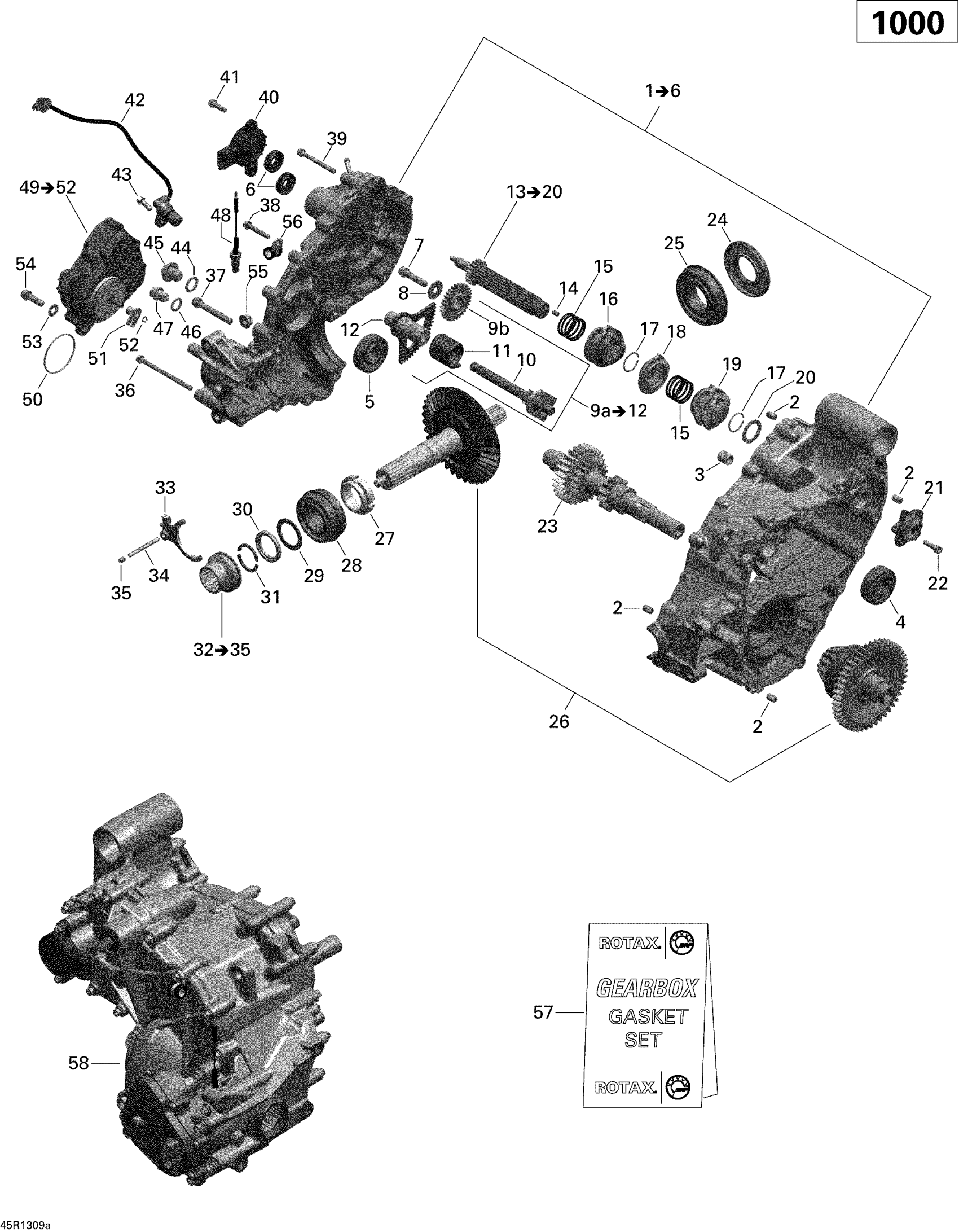

Can-Am Renegade STD, XXC, 1000 EFI, 2013 Gear Box 1 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Center Pin 8 X 12

420632010

$3.52

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Ball Bearing

420932816

$39.52

5

Ball Bearing 6204

420932433

$21.61

6

Oil Seal

420250450

$15.64

7

Torx Flange Screw M8 X 35

420641188

$7.01

8

Plain Washer

420227937

$2.68

9a

Shift Shaft Ass'y | Includes 9a to 12

420620922

$88.78

9b

Not Available As Spare Part - Friction Washer

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Shift Drum Ass'y | Includes 13 to 20

420657232

$284.30

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Allen Screw M6 X 20

420241939

$0.73

23

COUNTERSHAFT - Call your local BRP dealership

420637428

Unavailable

24

Oil Seal

420831955

$26.09

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Shifting Sleeve Kit | Includes 26a to 29

420257676

Unavailable

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

SET SCREW M6 X 8 - Call your local BRP dealership

420841771

Unavailable

36

Torx Flange Screw M6 X 85

420641228

$7.01

37

Torx Flange Screw M8 X 55

420641213

$7.01

38

Torx Flange Screw M6 X 35

420641258

$3.19

39

Torx Flange Screw M6 X 55

420440702

$2.91

40

Angle Rotation Sensor

420266168

$176.84

41

Torx Flange Screw M6 X 16

420641048

$2.82

42

Camshft Position Sensor Ass'y

420265727

$104.45

43

Torx Flange Screw M6 X 16

420641048

$2.82

44

O-Ring

420650350

$10.12

45

Plug Screw M14 X 1.5

420241662

$13.51

46

Copper Washer

420250640

$0.93

47

Magnetic Drain Plug M12

420241787

$16.39

48

3 Position Switch

420640192

$36.54

49

Actuator Ass'y 3 pins | Includes 4 to 7

715900614

$253.70

50

O-Ring

293300117

$4.15

51

Shifting Fork

415129175

$13.58

52

Circlip | 4X4

293370042

$3.01

53

Flat Washer 8.4 mm

420250315

$1.06

54

Torx Flange Screw M8 X 25

420440372

$3.88

55

Hex. Nut M8

420842619

$2.46

56

CABLE CLAMP - Call your local BRP dealership

420251690

Unavailable

57

Gasket Set

420684149

$74.60

58

Boite Vitesses *Gear Box

420685804

$2,859.99
