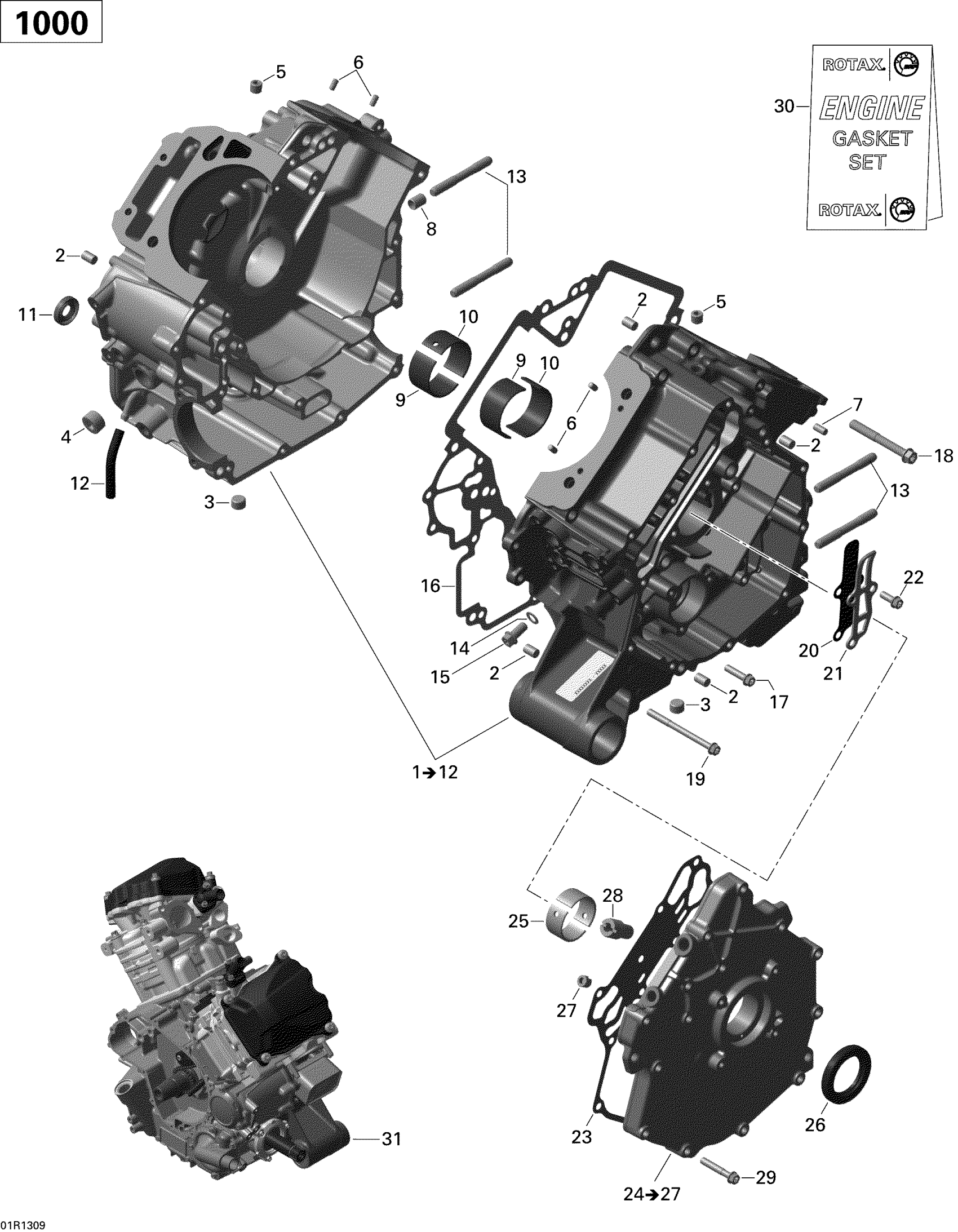

Can-Am Renegade STD, XXC, 1000 EFI, 2013 Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 to 12

420685253

$1,150.49

2

Center Pin 8 X 12

420632010

$3.52

3

Plug Screw M12x1,5

420840658

$7.09

4

Plug Screw M18 X 1.5 - Call your local BRP dealership

420240170

$7.01

5

Plug Screw M10 X 1

420641323

$13.18

6

Drive Pin 5 X 10

420929650

$1.54

7

Needle Pin

420932780

$7.01

8

Dowel Pin 10 X 13

420929670

$10.21

9

Plain Bearing

420233960

$22.36

10

Plain Bearing

420233965

$22.36

11

Oil Seal

420650315

$11.04

12

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

13

Stud

420240816

$6.55

14

Sealing Ring

420950141

$1.88

15

Torx Flange Screw M8 X 16

420440852

$3.88

16

Gasket

420651227

$29.82

17

Torx Flange Screw M6 X 25

420641238

$3.07

18

Torx Flange Screw M8 X 65

420440402

$7.01

19

Torx Flange Screw M6 X 75

420440657

$4.15

20

Reed Valve

420224721

$16.39

21

Reed Valve Stop

420224725

$10.76

22

Torx Flange Screw M6 X 16

420641048

$2.82

23

Gasket

420651211

$25.34

24

PTO Cover Ass'y | Includes 25a to 29

420612335

$259.67

25

Bearing Sleeve

420233995

$19.37

26

Oil Seal

420631933

$26.09

27

Plug Screw M10 X 1

420641323

$13.18

28

Hose Nipple

420256332

$16.39

29

Torx Flange Screw M6 X 35

420641258

$3.19

30

Gasket Kit, Engine

420684150

$389.52

31

Long Block 1000

420101012

$3,995.99
