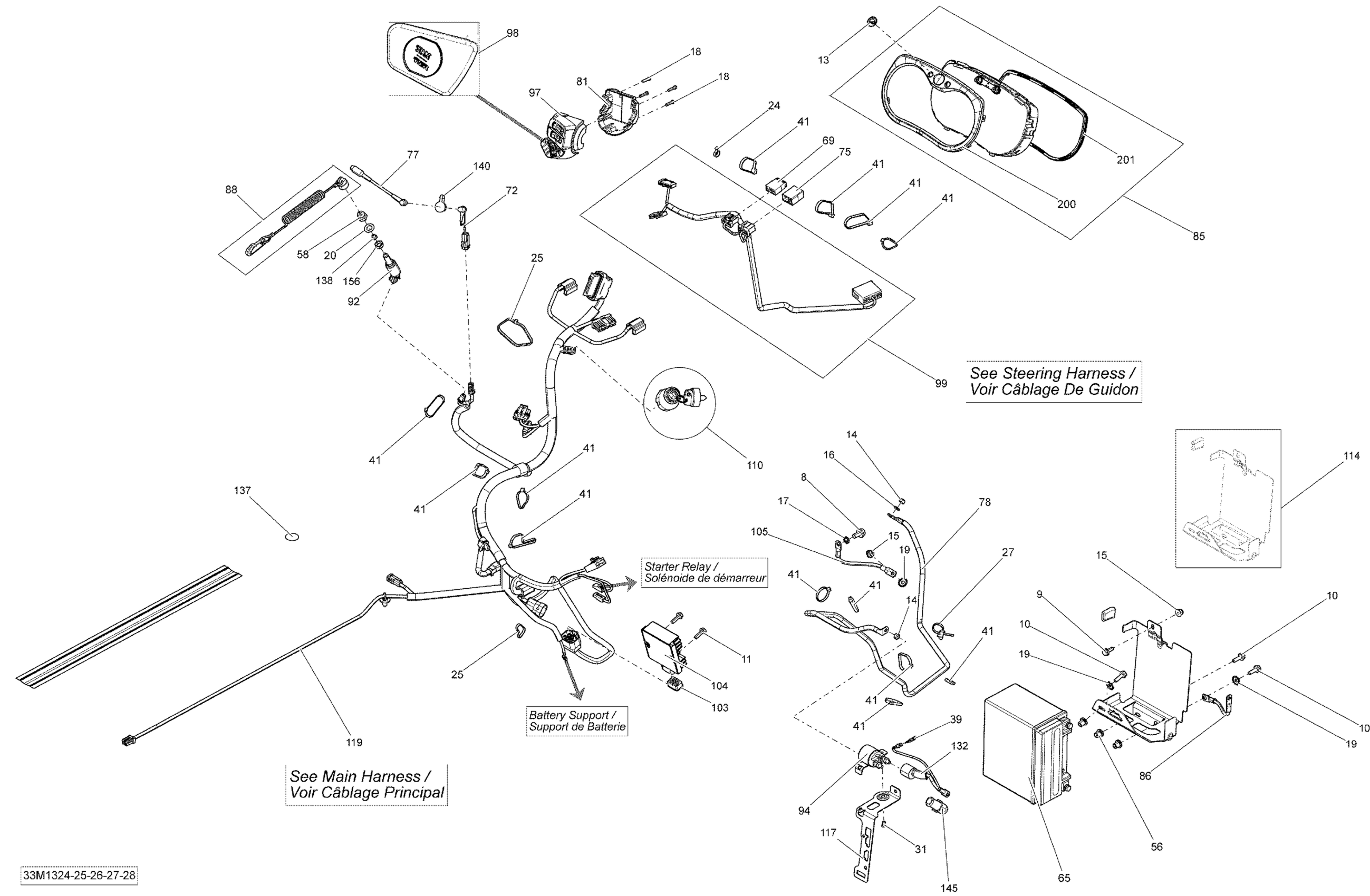

Ski-Doo RENEGADE SPORT 550F XP, 2013 Electrical System Diagram

#

Description
Price

8

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

9

Hex. Flange Screw M6 X 16

207661644

$0.61

10

Hex. Flange Screw M6 X 20

207662044

$1.66

11

Hex. Flange Screw M6 X 20

210262040

$2.06

13

BRP Logo 20MM x 2MM | XTP

516006224

$10.05

14

Elastic Stop Nut M6

232561414

$1.55

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

16

Flat Washer 6 mm

234061410

$1.04

17

Serrated Lock Washer 8 mm

234481608

$1.09

18

Torx Screw #8-18

250000263

$1.02

19

Lock Washer Serrated M6

250200041

$0.92

20

Flat Washer

250200084

$2.76

24

Tie Wrap 142 mm

293750002

$0.88

25

Tie Wrap 368 mm

293750008

$0.85

27

Tie-Rap 173 mm

293750009

$0.85

31

Pop Rivet 3/16"

390402200

$0.26

39

Fuse, 30 Amperes

410917200

$3.22

41

Tie-Rap 180 mm

414115200

$0.09

56

Insert

293450275

$9.89

58

Switch Nut

515145900

$10.83

65

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

69

Male Terminal Housing, 6 Circuits

515175662

$8.57

72

Not Available As Spare Parts

XXX

Unavailable

75

Male Terminal Housing, 8 Circuits

515175817

$8.57

77

Not Available As Spare Parts

XXX

Unavailable

78

BATTERY WIRE - Call your local BRP dealership | DELE

515175905

Unavailable

81

Switch Housing Plate

515175926

$17.66

85

Indicator | Includes 10 to 10c

515177279

$535.35

86

Ground Wire

515176358

$26.12

88

Cap Ass'y

515178283

$37.66

92

Brake Switch

515175653

$15.57

94

Starter Relay

515176501

$93.82

97

LH Housing

515177021

$214.58

98

Start/RER Button

515176088

$18.43

99

Steering Wiring Harness Ass'y | Includes 3200 to 3200n

515176995

$106.89

103

Lock

515176681

$18.43

104

Voltage Regulator

515176699

$149.99

105

Ground Wire

515176745

$27.66

110

Ignition Swirch

515177063

$41.57

114

BATTERY SUPPORT ASS'Y - Call your local BRP dealership

515176886

Unavailable

117

BATTERY STRIP - Call your local BRP dealership

515177008

Unavailable

119

WIRING HARNESS ASS'Y - Call your local BRP dealership

515177094

Unavailable

132

BATTERY FUSE WIRE - Call your local BRP dealership | DELE

515177200

$10.80

137

Adhesive Patch

518325560

$4.34

138

Plunger Cap

570151100

$10.14

140

Not Available As Spare Parts

XXX

Unavailable

145

Protector Cap

710000495

$10.14

156

RH Threaded Hex. Jam Nut M10

732610010

$0.72

200

Lens | XTP

415129349

$23.05

201

Gauge Ring

415129348

$11.71
