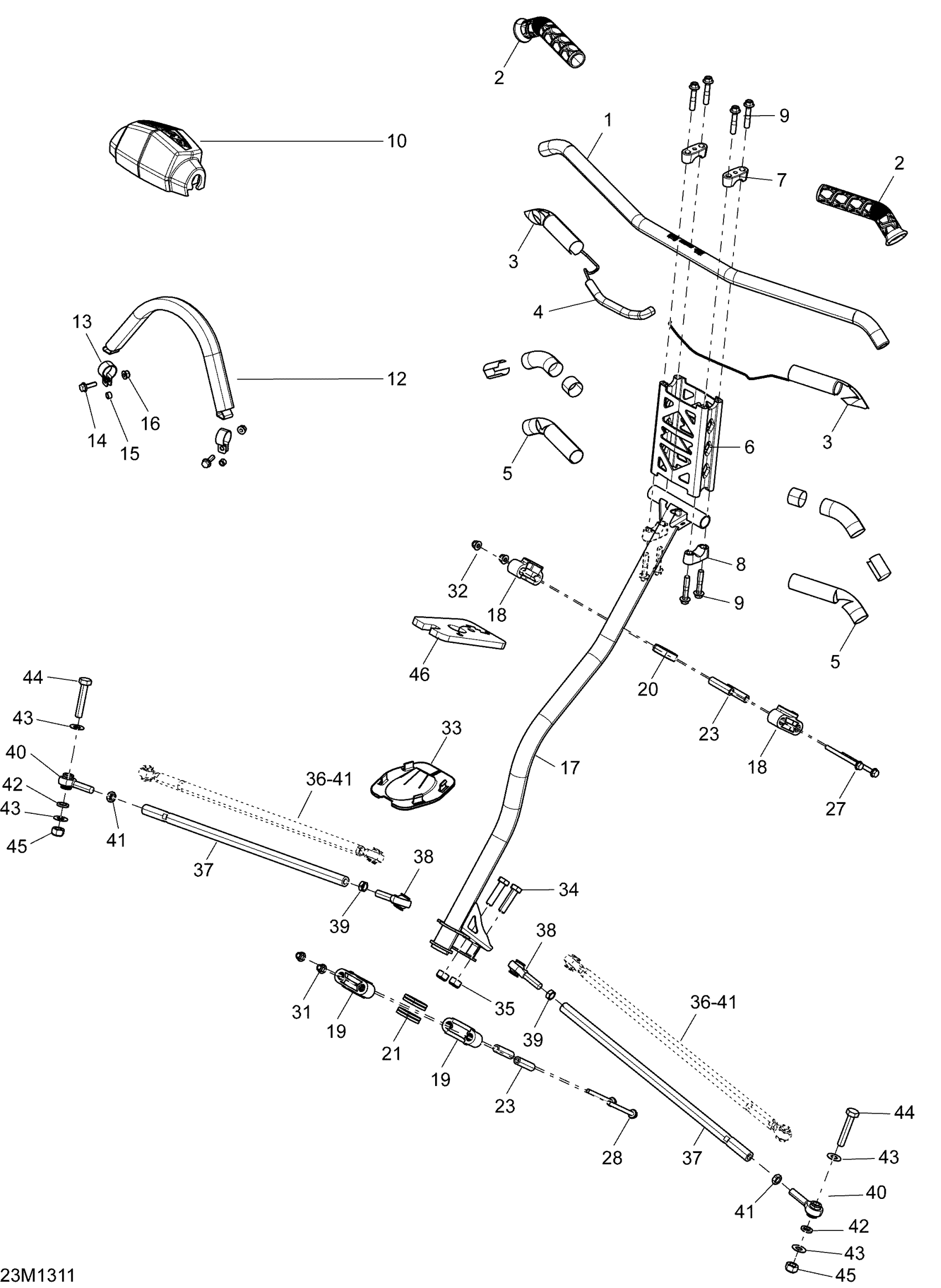

Ski-Doo RENEGADE BACK COUNTRY 600HOE, 2013 Steering Diagram

#

Description
Price

1

Handle Bar, Non Dyed Clear Anodizing

506152709

$84.99

2

Grip

506152486

$16.99

3

Heating Element 28 WATT This part replaces 506152602.

506152603

$47.99

4

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

5

Isolant

506152611

$11.49

6

Riser Kit

860200820

$86.99

7

Steering Support | Includes 40 to 40a

506152751

$14.49

8

Steering Support | Includes 40 to 40a

506152751

$14.49

9

Hex. Flange Screw M8 X 40

250000352

$3.49

10

Steering Pad

506152192

$59.99

12

Strap Ass'y | Package XMR

506152115

$45.99

13

Black Support Plate

506152536

$9.39

14

Hex. Flange Screw M6 X 20

207662084

$1.69

15

Bushing | Package XMR

506152156

$5.61

16

Hex. Flange Elastic Nut M6

233261494

$1.59

17

Steering Column

506152962

$204.99

18

Upper Half-Housing

506152508

$9.23

19

Lower Half-Housing

506152217

$7.62

20

Upper Anti-Vibration Gasket

506152509

$4.89

21

Lower Vibration Ring

506152518

$4.89

23

Housing Bushing

506152297

$13.49

27

Hex. Flange Screw M6 X 70

207667056

$4.49

28

Hex. Flange Screw M6 X 70

207667044

$1.49

31

Elastic Flange Nut M6 X 1.0

233261416

$2.19

32

Elastic Flange Nut M6 X 1.0

233261416

$2.19

33

Plate

506152163

$13.49

34

Hex. Screw M10 X 1.5 X 40

207004034

$2.19

35

Elastic Stop Nut M10

232500416

$1.99

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Tie-Rod

506152498

$38.99

38

LH Thread Ball Joint

506152081

$41.49

39

LH Threaded Hex. Jam Nut M10

250100016

$1.49

40

RH Threaded Ball Joint

506152019

$41.49

41

RH Threaded Hex. Jam Nut M10

732610010

$1.49

43

Washer

506152582

$4.69

44

Hex Screw M10 X 1.5 X 55

207005554

$7.69

45

ELASTIC LOCKING NUT M10 - Call your local BRP dealership

250100132

Unavailable

46

Bushing

506152521

$15.79
