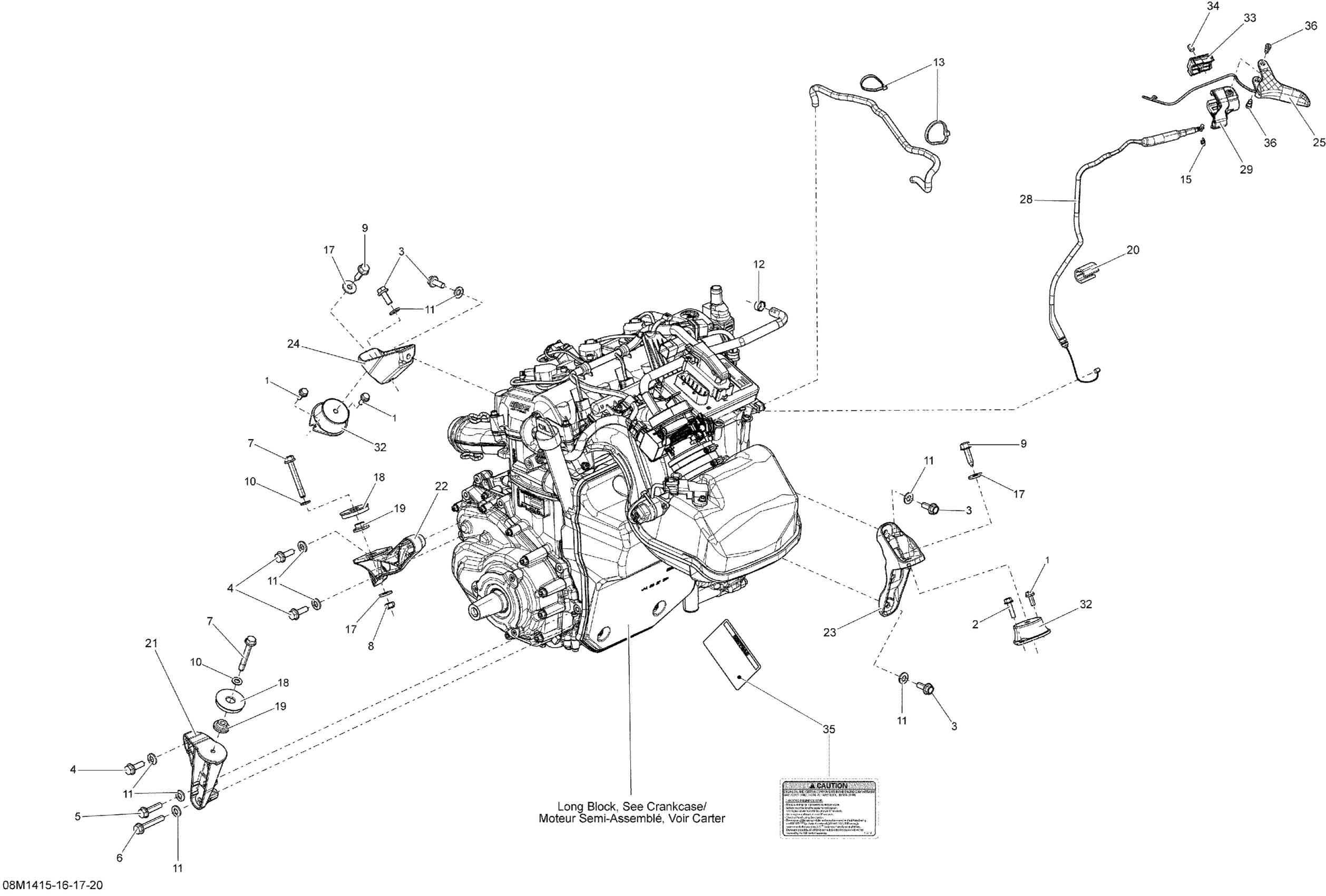

Ski-Doo RENEGADE ADRENALINE 1200 4TEC XR, 2014 Engine And Engine Support Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

2

Hex. Flange Screw M6 X 25, Scotch Grip | Package-2X4, 4X4

207562534

$2.06

3

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

4

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

5

Hex. Flange Screw M8 X 35

250000986

$1.74

6

Hex. Flange Screw M8 X 50, Scotch Grip

207585086

$4.28

7

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

Unavailable

8

Hex. Elastic Stop Nut M8

232581414

Unavailable

9

Cone Screw, M8 X 30

250000257

$1.72

10

Flat Washer With Teflon 8 mm

250200008

Unavailable

11

Conical Spring Washer M8

250200146

Unavailable

12

Oetiker Clamp

293650046

Unavailable

13

Tie-Rap 180 mm

414115200

$0.09

15

Circlip

414274500

Unavailable

17

Yellow, Washer

503183200

Unavailable

18

Stopper This part replaces 512060244.

512061202

$18.43

19

Spacer

512060285

$17.66

20

Protector

512060313

$9.31

21

Rear Support, PTO

512060591

$45.35

22

Front Support, PTO

512060593

$28.43

23

Rear Support, MAG

512060594

$29.97

24

Front Support, MAG

512060596

$29.97

25

Handle Ass'y

512061250

$117.66

28

THROTTLE CABLE - Call your local BRP dealership

512060673

$66.12

29

Lower Housing

512060860

Unavailable

32

Rubber Mount

512060729

$69.97

33

Upper Housing

512060859

Unavailable

34

Socket Set Screw M8 X 10

414440800

$4.00

35

Caution Decal, Oil Level

516005521

Unavailable

36

Flange Screw

732601143

$4.02
