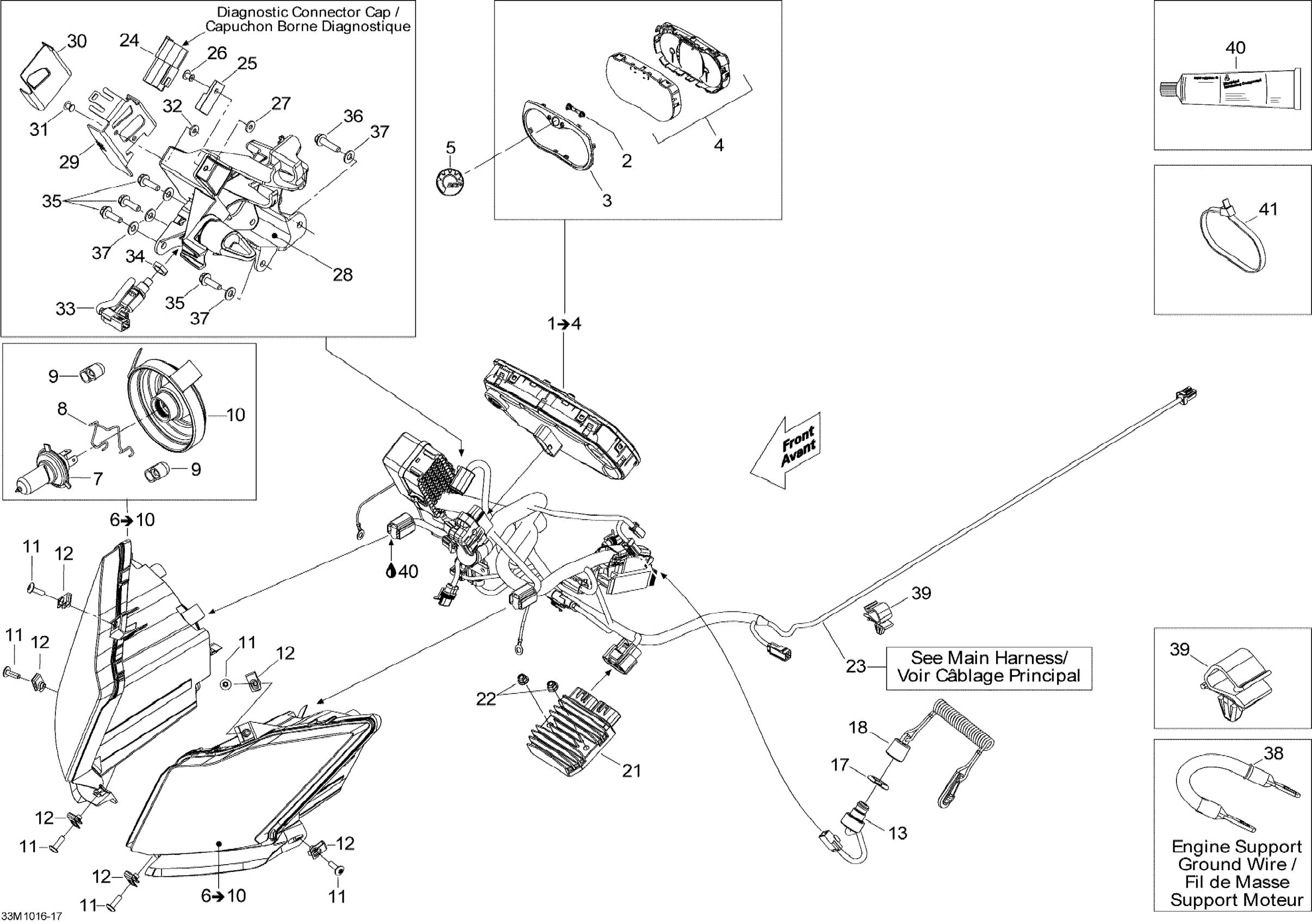

Ski-Doo Renegade Adrenaline 1200, 2010 Electrical System ADR Diagram
#
Description
Price
1
Speedometer | Includes 10 to 10c
515177914
Unavailable
2
Speedometer Button | XTP
415129355
Unavailable
4
Lens | XTP
415129349
Unavailable
5
BRP Logo 20MM x 2MM | XTP
516006224
Unavailable
6
RH Headlamp Ass'y | Includes 2400 to 2400c
517304194
Unavailable
6
LH Headlamp Ass'y | Includes 2600 to 2600c
517304195
Unavailable
7
Halogen Bulb, 60/55 W, 12 V ( H4 )
515176274
Unavailable
8
BULB HOLDER - Call your local BRP dealership
515176493
Unavailable
9
Cap
515176498
Unavailable
10
Rubber Cap Protector
219800280
Unavailable
11
Torx Screw M6 X 20
250000722
Unavailable
12
Panel Nut M6 X 1.0
250100198
Unavailable
13
DESS Switch
515177249
Unavailable
18
DESS
515178284
Unavailable
22
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
23
Main Harness | Includes 1 to VC
515176836
Unavailable
25
Flat Washer M5
234051410
Unavailable
28
PLATE - Call your local BRP dealership
515177044
Unavailable
29
Fuse Support - Call Your Local BRP Dealership
515177549
Unavailable
30
PROTECTOR - Call your local BRP dealership
515176637
Unavailable
32
Flat Washer M5
234051410
Unavailable
34
Brass Nut
250000373
Unavailable
35
Hex. Flange Screw M6 X 20
210262040
Unavailable
38
Ground Wire
515176358
Unavailable
40
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
41
Tie Wrap 142 mm
293750002
Unavailable
