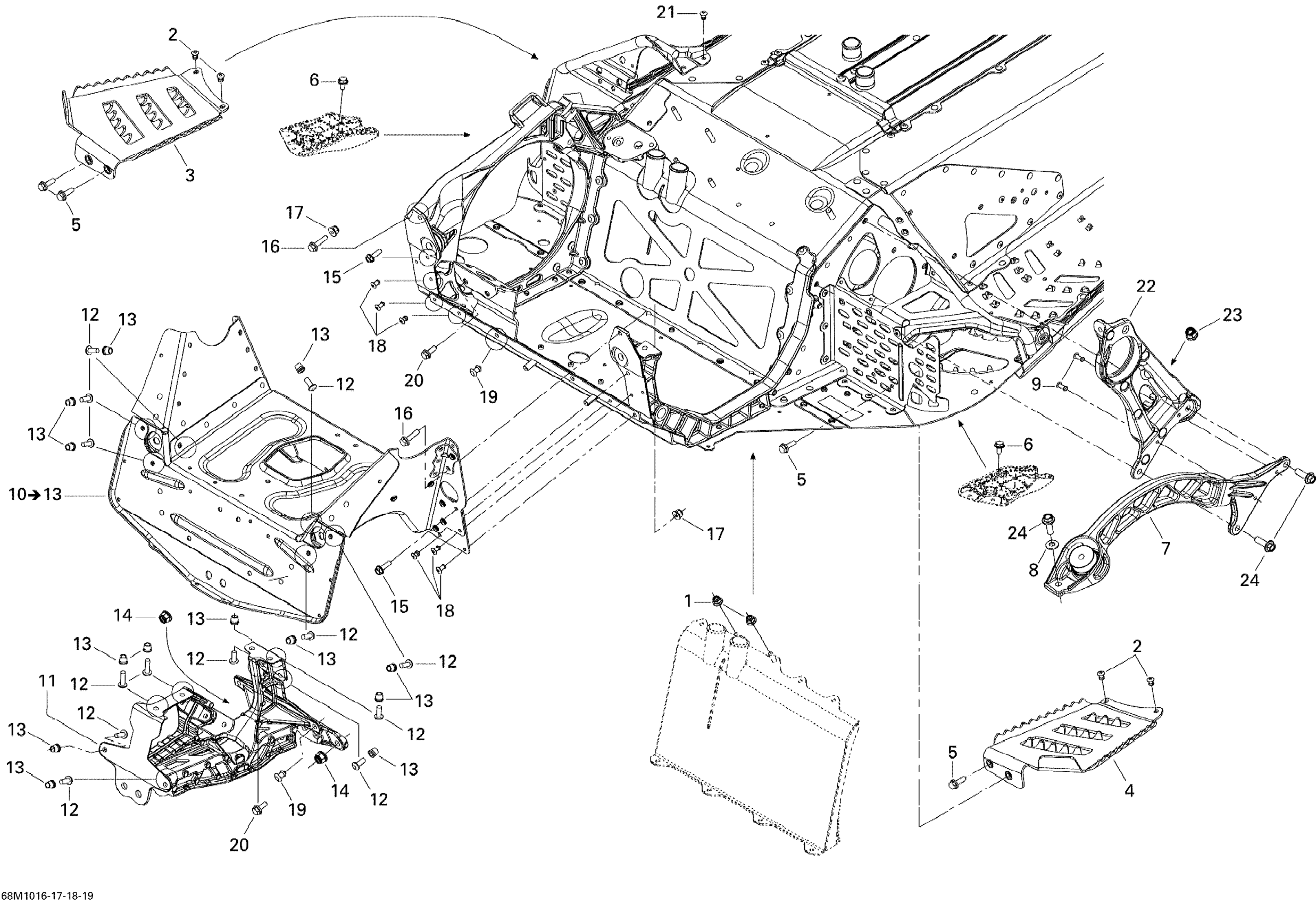

Ski-Doo Renegade Adrenaline 1200, 2010 Frame And Suspension Module Diagram

#

Description
Price

1

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

2

Not Available As Spare Parts

XXX

Unavailable

2

Not Available As Spare Parts

XXX

Unavailable

3

Not Available As Spare Parts

XXX

Unavailable

3

Not Available As Spare Parts

XXX

Unavailable

4

Not Available As Spare Parts

XXX

Unavailable

4

Not Available As Spare Parts

XXX

Unavailable

5

Not Available As Spare Parts

XXX

Unavailable

6

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

7

Brace Ass'y | Includes 200 to 200a

518327392

$185.35

8

Conical Spring Washer M8

234281474

$1.25

9

Pop Rivet 3/16”

390407200

$0.66

10

Cross Member S Module | Includes 300a to 300b

518328320

$459.20

11

Front Suspension Support

518327487

$267.66

12

Hex. Flange Screw M6 X 20

207662044

$1.66

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

14

Hex. Flange Elastic Nut M8

233281414

$1.14

15

Hex. Flange Screw M6 X 16

210261650

$1.22

16

Hex. Flange Screw M6 X 25

207662544

$0.53

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

18

MONOBOLT RIVET 4.8 - Call your local BRP dealership

293150179

Unavailable

19

Monobolt Rivet 6.4

293150182

$2.91

20

Hex. Flange Screw M6 X 16

207661644

$0.61

21

Avex Rivet

390909100

$0.29

22

Driven Pulley Support This part replaces 518327133.

518327460

$102.28

23

Hex. Flange Elastic Nut M8

233281414

$1.14

24

Hex. Flange Screw M8 X 25, Nylon

250000351

$1.74
