Description

Price

1

Rear Propeller Shaft Kit | Includes 1 to 9

703500801

$415.35

2

Fixe Yoke

715900101

$27.66

3

Universal Joint

715900326

$69.20

4

SLIDING JOINT - Call your local BRP dealership

705501072

$96.89

5

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

6

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

7

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

8

DISC JOINT - Call your local BRP dealership

705500526

Unavailable

9

GREASE FITTING - Call your local BRP dealership

705500841

$5.35

10

Protector

705501123

$7.37

11

Wear Ring | 4X4

705400036

$25.35

12

Differential Kit | Includes 10 to 29

703501033

$1,015.35

13

Oil Seal | 4X4

705401481

$18.43

14

Nut

705502059

$32.28

15

Ball Bearing | 4X4

705500260

$30.74

16

Pinion Gear Shim .022"

705500075

Unavailable

16

Pinion Gear Shim 1.67 mm

705502061

$16.12

16

Pinion Gear Shim

705501162

$15.17

17

Differential Shim 0.02 mm

705502060

$13.83

18

Ens Engrenage 10/36D *Gear-10/36 Too Kit

703500873

$433.82

19

Ball Bearing

705502737

$46.12

20

Ball Bearing

705502738

$56.89

22

Ens Engrenage 10/36D *Gear-10/36 Too Kit

703500873

$433.82

23

Screw | 4X4

705401601

$9.29

24

REAR DIFFERENTIAL COVER - Call your local BRP dealership

705501507

$221.51

25

Seal | 4X4

705500265

$16.12

26

PINION REAR COVER - Call your local BRP dealership

705501395

$310.74

27

VENT VALVE - Call your local BRP dealership | 4X4

705500893

$14.37

28

Drain Plug | 4X4

705500894

$11.06

30

O-Ring | 4X4

705500267

$6.25

31

Oil Seal

705501996

$20.74

32

Fill Level Plug | 4X4

705500504

$7.61

33

Copper Washer | 4X4

705500506

$0.36

34

LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66

705501713

Unavailable

35

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

36

Protector Kit | Includes 38 to 39

703500722

$64.58

37

WARNING DECAL, TRAILER - Call your local BRP dealership | Europe

704901905

Unavailable

37a

WARNING DECAL-ENGLISH-TRAILER - Call your local BRP dealership

704900766

Unavailable

38

Hex. Flange Screw M6 X 25

207662544

$0.53

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

40

Flat Washer

250200082

$0.35

41

Hex Flange Screw M12 X 16

250001039

$1.74

42

Flat Washer M12

250200102

$1.74

43

Rubber Bellow | 4X4

705400552

$6.02

44

Oetiker Clamp

293650042

$1.40

45

Hex Flange Screw M12 X 16

250001039

$1.74

47

Tire | North America

705500926

$152.28

47

Tire | North America

705500926

$152.28

47

Rear Tire | Europe & International

705500820

$152.28

48

Rear Rim

705501137

$139.97

49

VALVE_TIRE WITH CAP FORMED - Call your local BRP dealership | Xxc

705400872

$9.35

49a

VALVE CAP - Call your local BRP dealership

293000111

Unavailable

50

1/2 Oz Weight

219704465

$4.35

51

REINFORCEMENT DISC PLATE - Call your local BRP dealership

705401248

$85.35

52

Hex. Flange Screw M6 X 25

250000787

$1.83

53

Black, Wheel Nut M10 X 1.25

250100184

$2.48

54

Flat Washer M12

250200102

$1.74

55

Hex. Flange Castellated Nut M18

232291413

$2.82

56

Cotter Pin

250400036

$1.74

58

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$233.82

59

CIRCLIP - Call your local BRP dealership

705500845

Unavailable

60

Boot Kit

705500870

$41.51

60a

OETIKER CLAMP - Call your local BRP dealership

293650204

Unavailable

60b

Oetiker Clamp (27,5mm)

293650203

$10.14

61

CV JOINT - Call your local BRP dealership

705500980

Unavailable

62

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$233.82

63

CV JOINT - Call your local BRP dealership

705500980

Unavailable

64

Boot Kit

705500870

$41.51

64a

OETIKER CLAMP - Call your local BRP dealership

293650204

Unavailable

64b

Oetiker Clamp (27,5mm)

293650203

$10.14

65

CIRCLIP - Call your local BRP dealership

705500845

Unavailable

66

Hex. Flange Screw, M10 X 130

230603046

$6.08

67

Hex. Flange Screw M10 X 135

230603546

$6.08

68

Hex. Flange Elastic Nut M10

233201436

$1.74

69

Ball Bearing

293350150

$52.99

70

Wear Ring

705501124

$7.28

71

Wear Sleeve | 4X4

705501121

$7.28

72

Circlip

293370019

$4.98

73

Conical Spring Washer M18

250200171

$5.28

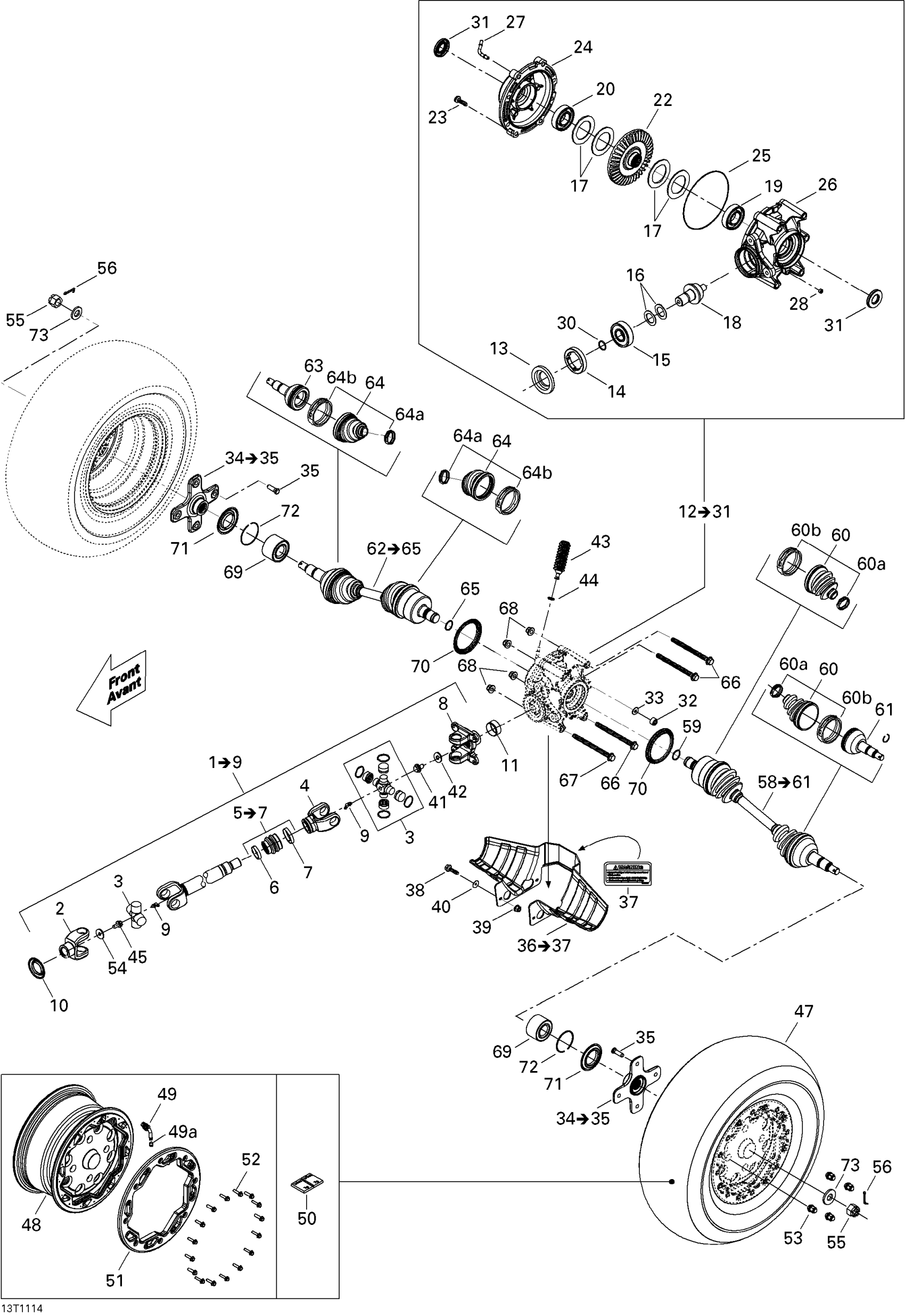

Can-Am Renegade 800R EFI, Xxc, 2011 Drive System, Rear Diagram
