Description

Price

1

Upper Arm Bracket

706201360

$156.89

2

LH PAINT UPPER ARM - Call your local BRP dealership

706201209

$146.89

3

RH PAINT UPPER ARM - Call your local BRP dealership

706201212

$158.43

4

Bushing

706200181

$3.68

6

Sleeve

706201587

$4.60

7

Hex. Flange Screw M10 X 70

207607046

$2.91

8

Ball Joint

706200653

$41.51

9

Hex. Flange Elastic Nut M10

233201436

$1.74

10

ARM_SUSPENSION RH ECOAT - Call your local BRP dealership

706201047

Unavailable

11

Grease Fitting

408200700

$2.80

12

Synthetic Grease, 400 G

293550010

Unavailable

13

ARM_SUSPENSION LH ECOAT - Call your local BRP dealership

706201045

Unavailable

14

Hex. Flange Screw M10 X 65

207606536

$3.61

15

Hex. Flange Elastic Nut M10

233201436

$1.74

16

Hex. Flange Screw M10 X 55

207605544

$2.78

17a

FRONT SHOCK - Call your local BRP dealership

706200672

Unavailable

17b

Spring Stopper

706000567

$15.35

17c

Not Available As Spare Parts

XXX

Unavailable

18

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership

706200827

$78.43

19

ROD PROTECTOR - Call your local BRP dealership

706201286

$7.29

20

RH Protector

706201670

$17.66

21

LH Protector

706201669

$17.66

22

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

23

Hex. Flange Screw M8 X 20

207682044

$0.92

24

Hex. Flange Elastic Nut M8

233281414

$1.14

25

Circlip 32 mm

293370009

$1.49

26

BRACKET - Call your local BRP dealership

706201014

$7.66

27

Nut M12

250100099

$1.64

28

Hardened Washer

706200281

$2.34

29

LH UPPER ARM BRACKET - Call your local BRP dealership

706201039

Unavailable

30

RH UPPER ARM BRACKET - Call your local BRP dealership

706201040

$15.35

31

Pop Rivet 3/16"

390402300

$0.64

32

Hex. Elastic Flange Nut M8

233281416

$1.25

33

Cotter Pin

211400017

$0.25

34

Hex. Flange Screw M8 X 70

207687044

$6.11

35

Hex. Flange Elastic Nut M8

233281414

$1.14

36

SWAY BAR - Call your local BRP dealership

706200777

$65.35

37

BUSHING - Call your local BRP dealership

706201049

$10.57

38

CLAMP - Call your local BRP dealership

506095800

$5.45

39

Socket Head Screw M8 X 20

205082044

$1.09

40

Hex. Flange Elastic Nut M8

233281414

$1.14

41

BALL JOINT - Call your local BRP dealership

706201077

$41.51

42

Hex. Flange Elastic Nut M8

233281414

$1.14

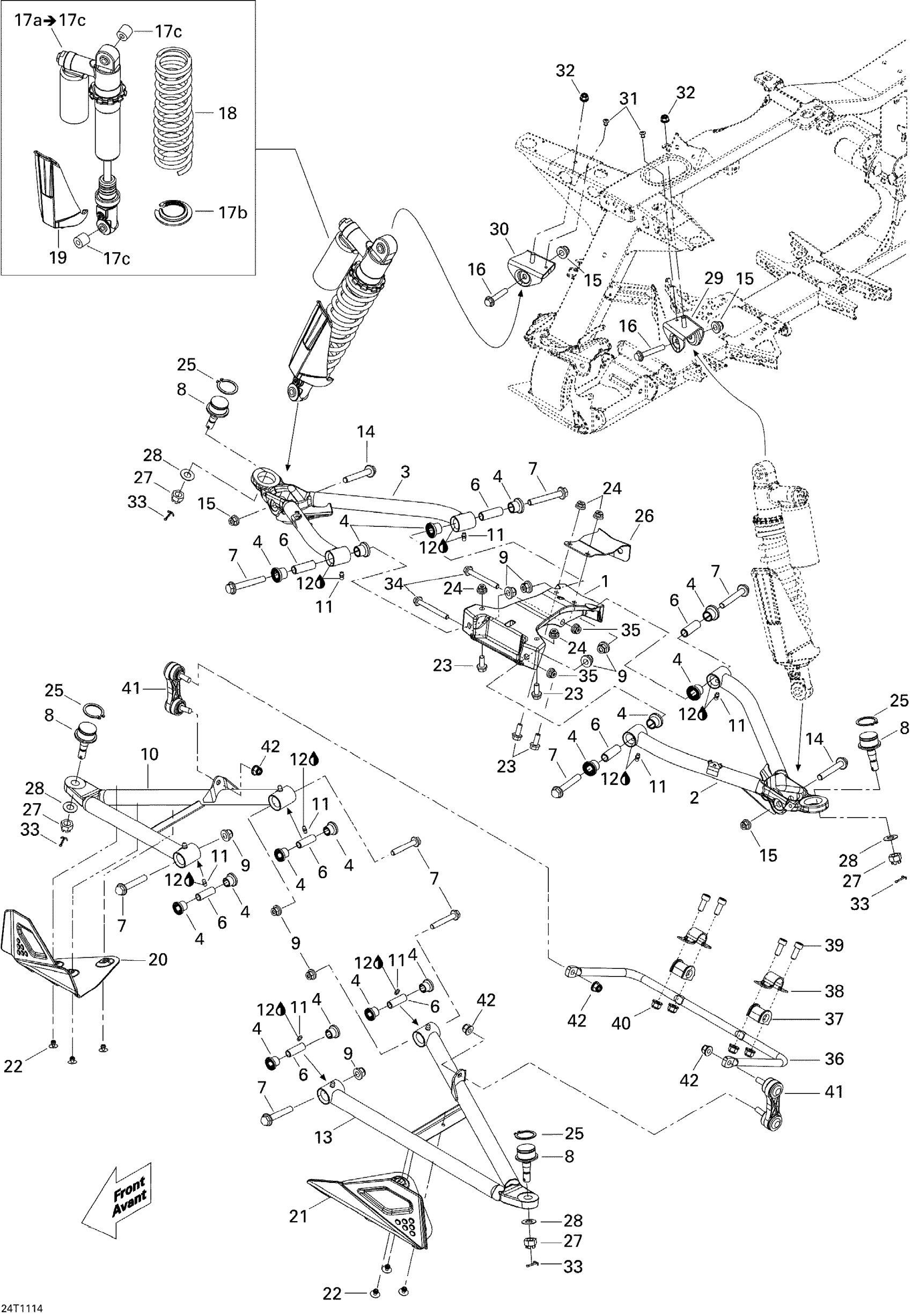

Can-Am Renegade 800R EFI, Xxc, 2011 Front Suspension Diagram
