Description

Price

1

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

2

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

3

Hex. Flange Screw M6 X 16

207661654

$1.74

4

Hex. Flange Screw M6 X 20

207662084

$0.83

5

Hex. Flange Screw M6 X 25

207662554

$1.48

6

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

7

Hex. Flange Screw M6 X 35

207663544

$0.74

8

Hex. Flange Screw M6 X 45

207664544

$1.07

9

Hex. Flange Screw M6 X 50

207665044

$3.38

10

Hex. Flange Screw M8 X 20

207682044

$0.92

11

Hex. Flange Screw M8 X 25

207682544

$0.90

12

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.26

13

Carriage Bolt M6 X 30

207763044

$3.61

14

Hex. Flange Screw M6 X 12

210261250

$1.56

15

Flat Washer

224061201

$1.11

16

Square Nut M6

232862412

$1.18

17

Flange Elastic Nut M5

233251434

$1.66

18

Flange Elastic Nut M6

233261434

$3.61

19

Hex. Flange Elastic Nut M8

233281434

$1.74

21

Flat Washer 6 mm

234062410

$0.64

22

Stainless Steel Flat Washer

234062670

$1.74

23

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

24

Torx Screw M8 X 20, Scotch Grip

250000740

$2.09

25

Torx Screw M6 X 20

250000722

$1.34

26

Torx Truss Screw M6 X 16

250000721

$1.39

27

Torx Screw K50 X 16

250000720

$1.39

28

Torx Screw M6 X 16

250000755

$0.72

29

Torx Screw M6 x 25

250000284

$1.74

30

Torx Screw M6 X 12

250000454

$3.61

31

Ball Head Stud

250300039

$6.15

32

Tuflok Plastic Rivet

293150230

$1.21

33

Threaded Insert M6 X 1.0

250100242

$2.54

34

Rubber Bumper

293830005

$5.33

36

Pop Rivet 3/16"

390402400

$0.25

37

Clip

414479100

$1.86

38

Insert

293450275

$9.89

39

Spacer

705005809

$11.98

40

Oval Washer

705000321

$4.64

41

Oblong Grommet

705003668

$4.54

42

PANEL_BODY LH B-190 - Call your local BRP dealership | Yellow

705002946

Unavailable

42

Black, LH Lateral Panel

705002958

$41.51

43

PANEL_BODY RH B-190 - Call your local BRP dealership | Yellow

705002949

Unavailable

43

Black, RH Side Panel

705002959

$41.51

45

LH Rear Body Panel Cap

705017923

$12.68

46

Grommet

705003264

$3.43

48

Yellow Central Pannel Kit

715001493

$101.51

48

Central Pannel Kit, Yellow | Europe

715001495

$101.51

49

Dashboard

705003556

$46.12

50

LH Front Facia

705004508

$47.66

51

RH Front Facia

705004509

$47.66

52

Front Bumper

705011635

$272.28

54

LH Grille

705008137

$19.20

54

LEFT GRILL - Call your local BRP dealership

705008139

Unavailable

55

RH Grille

705008138

$19.20

55

RIGHT GRILL - Call your local BRP dealership

705008140

Unavailable

56

Support

705002282

$32.28

57

Footrest

705002326

$41.51

58

Hook

705017925

$15.35

59

Rear Carpet

705002343

$16.89

60

Cap

705002353

$14.20

61

Red Reflector

705011221

$12.32

61

Amber Reflector | Except Europe Model

705011222

$12.32

62

RH Rear Body Panel Cap

705017924

$14.71

63

Yellow Rear Fender Kit | North America

715001881

Unavailable

63

REAR FENDER KIT, YELLOW - Call your local BRP dealership | Int'l

715001883

$447.66

63

REAR FENDER KIT, YELLOW - Call your local BRP dealership | Europe

715001885

$546.12

63

REAR FENDER KIT - Call your local BRP dealership | Xxc Model North America

715001887

$476.89

63

REAR FENDER KIT, BLACK - Call your local BRP dealership | Xxc Model, Int'l

715001889

Unavailable

63

REAR FENDER KIT, BLACK - Call your local BRP dealership | Xxc Model, Europe

715001891

Unavailable

64

Engine Cover Support

705011461

$8.46

66

Bumper Support

705003505

$36.89

67

Bent Sectional Tube

705016093

$94.58

68

Front Bent Sectional Tube

705016094

$94.58

69

Bracket

705003599

$22.28

70

Engine Cover Support

705003646

$7.69

71

Front Facia

705003948

$51.51

72

LH Footboard

705004176

$46.12

72

RH Footboard

705004177

$46.12

74

YELLOW FRONT FENDER KIT - Call your local BRP dealership

715002157

$359.97

74

Deep Black Front Fender Kit | Xxc Model

715002154

$128.43

75

LH INNER FENDER - Call your local BRP dealership

705004307

Unavailable

76

RH INNER FENDER - Call your local BRP dealership

705004308

Unavailable

77

Painted Headlamp Support

705004309

$15.35

78

Lever Indicator

705003838

$27.66

79

RH Footboard/Fender

705004729

$124.58

80

LH Footboard/Fender

705004730

$124.58

81

LH Rear Facia | North America, International

705004731

$16.89

81

LH Rear Facia | Europe

705004927

$14.71

82

RH Rear Facia | North America, International

705004732

$16.89

82

RH Rear Facia | Europe

705004926

$14.71

83

Front Bumper Plate

705004850

$16.89

86

Engine Cover

705004966

$13.83

87

Panel Extension

705004988

$14.75

92

Skid Plate | XXC

705007820

$18.43

93

Reflective Sheet

705005840

$8.45

94

Protective Plate Kit

715002374

$64.58

95

Ens Protec Cen.*Kit Cent. Skid | XXC

715002078

$144.99

96

Fuse Holder

710002482

$6.89

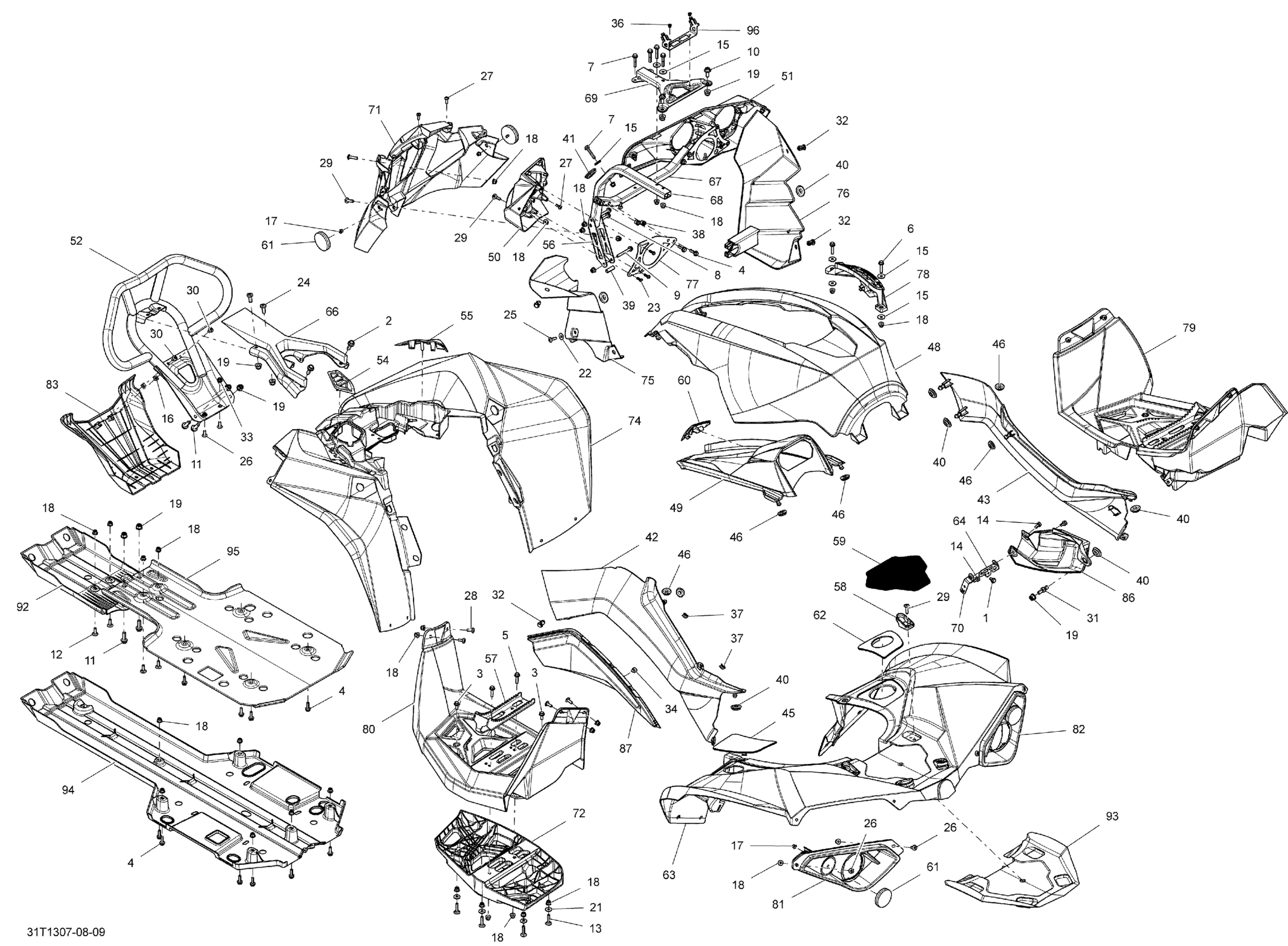

Can-Am Renegade 800R EFI STD & XXC, 2013 Body And Accessories Diagram
