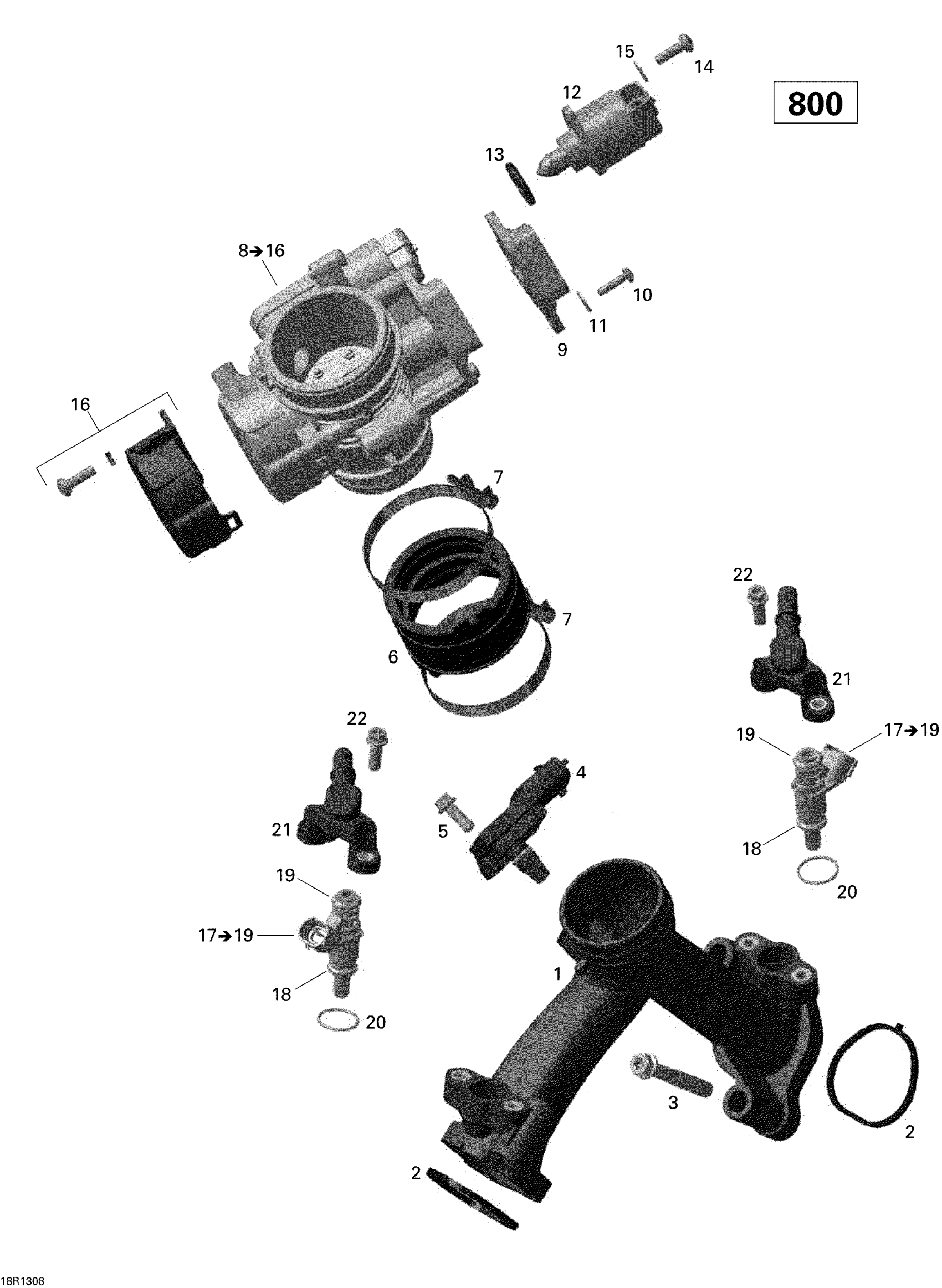

Can-Am Renegade 800R EFI STD & XXC, 2013 Air Intake Manifold And Throttle Body Diagram

Description

Price

Air Intake Manifold

420667581

$133.82

Gasket

420630642

$5.22

Torx Flange Screw M8 X 55

420641213

$6.11

Pressure And Temperature Sensor

707000995

$70.82

Torx Flange Screw M6 X 16

420641048

$2.46

Intake Adaptor

420267480

$15.19

Clamp

420251480

$13.58

Throttle Body Ass'y | Includes 8 to 16

420685326

$679.97

Position Sensor

420866120

$77.97

Phillips Screw M4 X 16

208641660

$0.74

Flat Washer 4 mm, Stainless

234042600

$0.92

Idle Air Control Valve

420665941

$147.52

O-Ring

420631780

$3.61

Binding Head Screw M5 X 16

420440911

$11.48

Snap Ring

420845710

$3.38

Cover Kit

420281540

$23.05

Injection Valve Ass'y | Includes no. 7-9

420874886

Unavailable

O-Ring

420431890

$4.95

O-Ring

420631220

$11.48

O-Ring

420631296

$0.74

Fuel Rail

420874901

$23.05

Torx Flange Screw M6 X 16

420641048

$2.46
