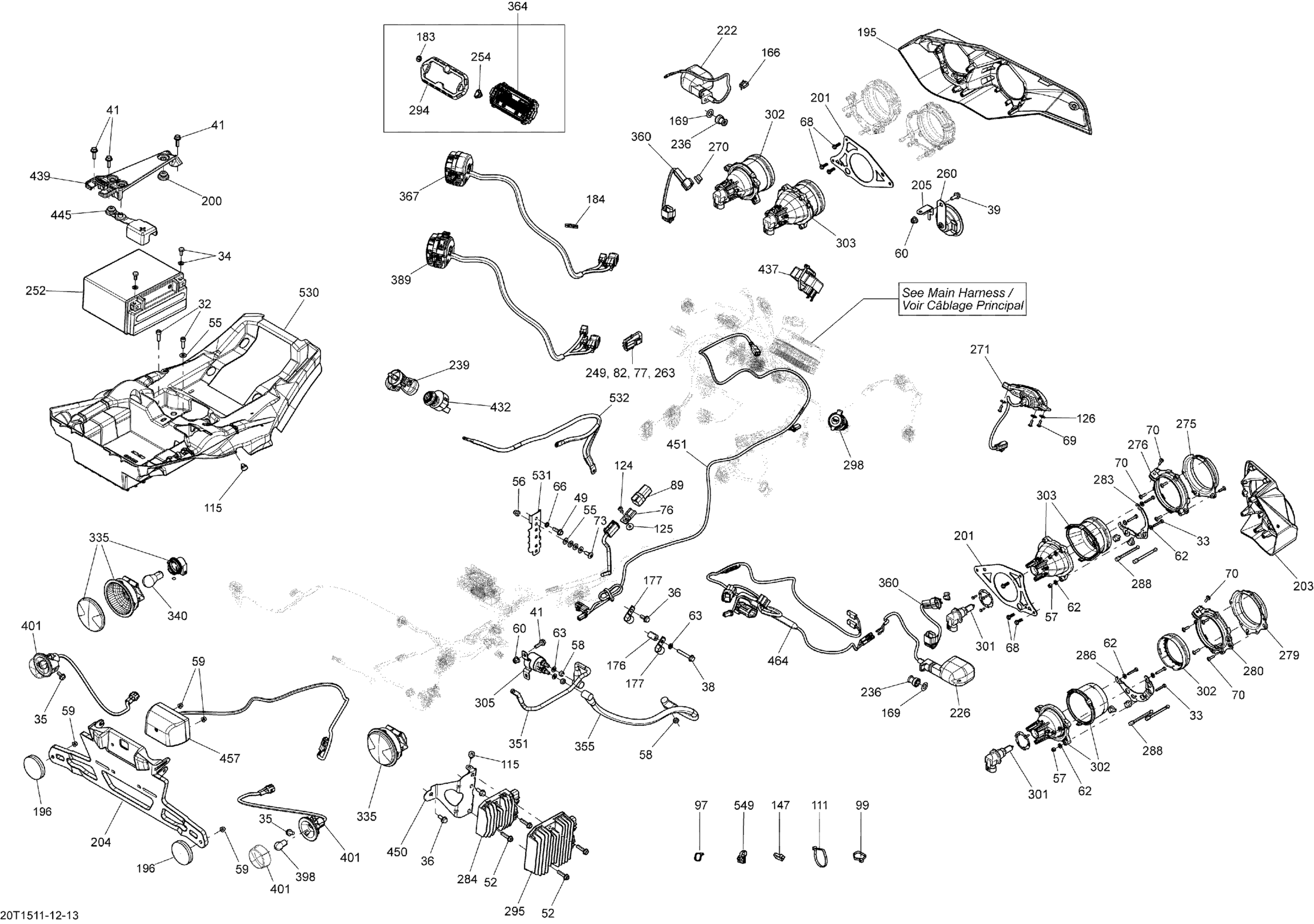

Can-Am Renegade 800R EFI, 2015 Electrical System _20T1512 Diagram

Socket Head Screw M6 X 20, Scotch Grip

205562044

$1.74

Hex. Screw M4 X 25

207142544

$1.63

Battery Bolt Kit

250000282

$2.95

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$3.61

Hex. Flange Screw M6 X 16

207661644

$0.61

Hex. Flange Screw M6 X 20

207662054

$0.83

Hex. Flange Screw M6 X 20

210262040

$2.06

Hex. Flange Forming Screw M6 X 25

210262550

$1.64

Flat Washer

224061121

$0.44

Domed Nut M6

232361493

$1.77

Elastic Stop Nut M4

232541414

$0.48

Elastic Stop Nut M6

232561434

$1.55

Flange Elastic Nut M5

233251434

$1.66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Flat Washer M5

234051410

$0.44

Lock Washer Helical M6

234161601

$0.92

External Serrated Lock Washer 6 mm

234461608

$0.92

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

PHILLIPS SCREW K40 X 10 - Call your local BRP dealership

241641040

Unavailable

Phillips Screw K40 X 16

250000723

$0.81

Torx Head Screw M6 X 16

250000717

$1.74

Clip

270000141

$8.33

Wire Seal

278000216

$2.55

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

Housing

710003006

$7.24

Tie Wrap 94 mm | 4X4

293750001

$0.83

Tie Wrap 142 mm

293750002

$0.88

Tie Wrap 368 mm

293750008

$0.85

Rubber Bumper

293830005

$5.33

Pop Rivet 3/16"

390402300

$0.75

Washer | DS 650 X

391301600

$0.48

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

Tie-Rap 180 mm

414115200

$0.09

Clip

414227300

$1.45

Washer

503175800

$3.26

Spacer

517203200

$15.35

Open Clamp

518321570

$6.03

BRP Logo13 mm

704904615

$9.66

DPS LABEL - Call your local BRP dealership | Europe

704901835

Unavailable

LH Front Facia

705004508

$47.66

Red Reflector

705011221

$12.32

Stopper Rubber

705014429

$6.09

Painted Headlamp Support

705004309

$15.35

RH Front Facia

705004509

$47.66

Plate Support | Europe

708300553

$22.28

SUPPORT - Call your local BRP dealership

709200284

Unavailable

Flasher | Europe Models, Includes 60 To 61

710000546

Unavailable

Flasher | Europe Models, Includes 60 To 61

710000547

Unavailable

CAP GUARD - Call your local BRP dealership | Europe Models

710001826

Unavailable

Grey, Electronic Key

710002183

$55.35

Black, Electronic Key

710000817

$55.35

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.91

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

Button

715900265

$12.68

Horn

710004791

$37.66

Clip

710000992

$4.00

Day Light

710001042

$83.05

LH Low Front Housing

710001083

$16.89

RH Low Front Housing

710001081

$16.89

LH Low Rear Housing

710001084

$10.98

RH Low Rear Housing

710001082

$10.98

LH High Front Housing

710001087

$16.89

RH High Front Housing

710001085

$16.89

LH High Rear Housing

710001088

$10.98

RH High Rear Housing

710001086

$10.98

LH Low Light Support

710001037

$9.22

RH Low Light Support

710001094

$9.22

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

LH High Light Support

710001036

$5.52

RH High Light Support

710001115

$5.52

Setting Screw

710001147

$12.91

Trim Ring Ass'y

710001183

$18.43

Voltage Regulator | XT, XTP, LTD

710001191

$180.49

DC Outlet

710001248

$31.17

Halogen Bulb

415129249

$39.97

High Beam Ass'y | Includes 11 to 12

710002525

$115.35

Low Beam Ass'y | Includes 1 to 2

710002524

$143.05

Starter Relay

710007777

$46.89

Tail Light Ass'y | Includes 32 to 33

710001645

$80.74

Bulb

520000758

$7.49

Positive Cable

710004376

$46.12

POSITIVE CABLE - Call your local BRP dealership

710001750

Unavailable

Light Harness

710005944

$32.28

Speedometer

710005087

$373.82

Handle Kit | STD

703500919

$73.82

Switch Kit | XT, XTP, XMR, LTD

703500920

$96.89

Multi-Function Handle

710004040

$166.12

Not Available As Spare Part - Friction Washer

Unavailable

Flasher | Europe

710002964

$35.14

Ignition Switch

710008400

$78.43

Flasher Unit

710003239

$78.43

Retaining Plate

710009129

$7.60

Battery Cable Cap

710006729

$7.37

Rectifier Support

710002587

$13.49

Brake Harness | Includes 1 to FRV2

710004324

$32.28

License Plate Light | Europe

710005563

$124.58

Harness Ass'y | Includes 1 to R1, Europe

710002804

Unavailable

Battery Support

710008370

$46.12

Connector Bracket

710004118

$5.52

Ground Cable

710004382

$18.43

Tie-Rap Clip

710002896

$4.60
