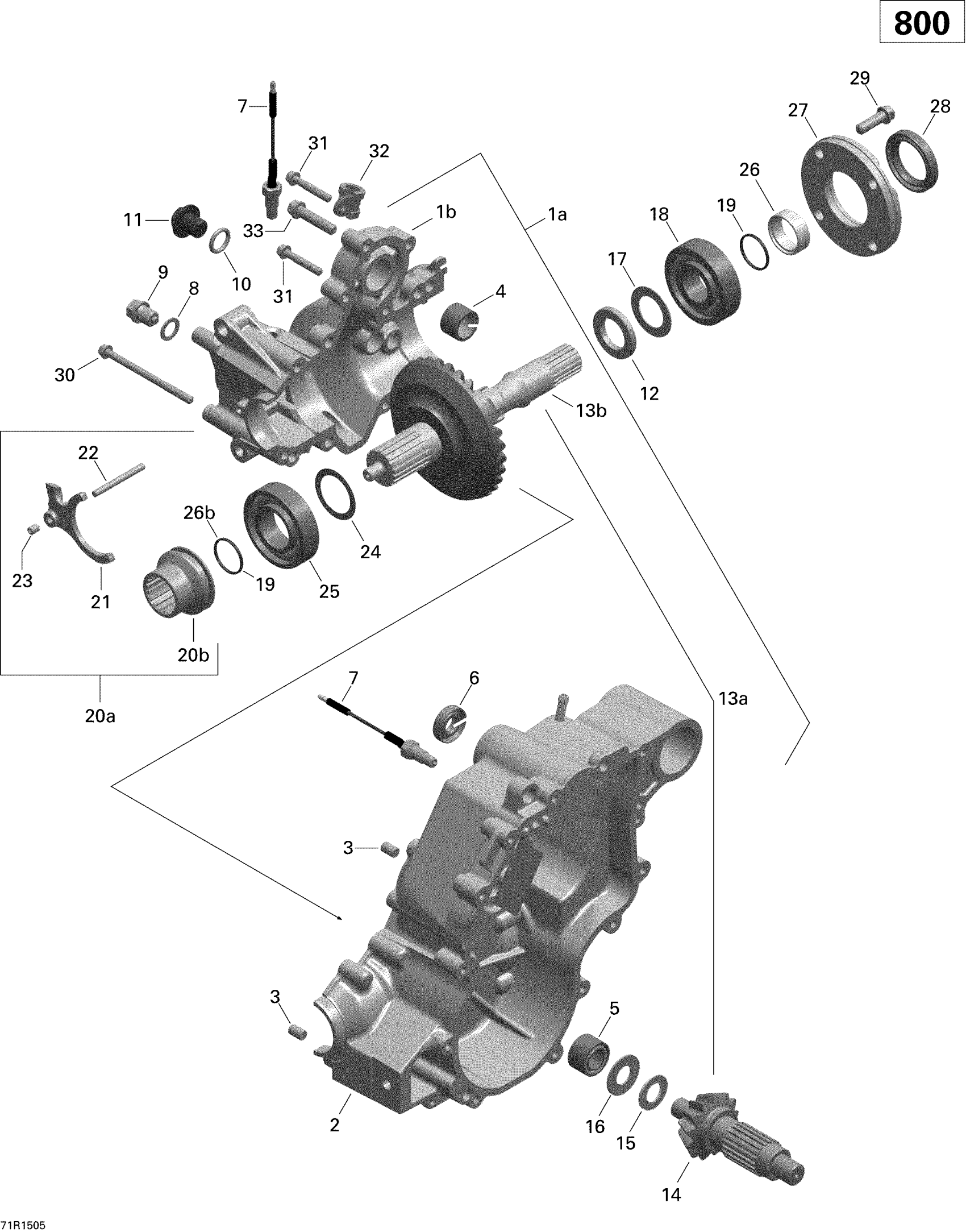

Can-Am Renegade 800R EFI, 2015 Gear Box Output Shaft _71R1505 Diagram

#

Description
Price

1a

Gear Housing Ass'y | Includes 1a to 7

420686205

$876.89

1b

Not Available As Spare Part - Friction Washer

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Center Pin 8 X 12

420632010

$3.07

4

Needle Bushing

420832240

$19.97

5

Needle Bushing

420232085

$36.12

6

Oil Seal

420250450

$16.89

7

3 Position Switch

420640192

$41.51

8

Copper Washer

420250640

$0.81

9

Magnetic Drain Plug M12

420241787

$16.89

10

O-Ring

420650350

$8.81

11

Plug Screw M14 X 1.5

420241662

$14.37

12

Distance Ring

420247772

$23.05

13a

Drive Ass'y | Includes 13a to 14

420635557

$424.58

13b

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Axial Needle Bearing

420632300

$17.66

16

Thrust Washer Set, MAG Side

420281306

$59.97

17

Washer Thrust Set

420281300

$92.28

18

Ball Bearing

420932822

$29.20

19

O-Ring

420631612

$3.52

20a

Shifting Sleeve Kit | Includes 26a to 29

420257676

$79.20

20b

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

SET SCREW M6 X 8 - Call your local BRP dealership

420841771

$3.57

24

Shim 0.5

420944584

$4.00

25

Ball Bearing

420932580

$9.09

26

Distance Ring

420247125

$23.05

27

Bearing Cover

420611444

$36.89

28

Oil Seal

420950089

$18.43

29

Torx Flange Screw M8 X 25

420440372

$4.00

30

Torx Flange Screw M6 X 85

420641228

$6.11

31

Torx Flange Screw M6 X 35

420440274

$0.83

32

CABLE CLAMP - Call your local BRP dealership

420251690

$11.83

33

Torx Flange Screw M8 X 35

420641188

$6.11
