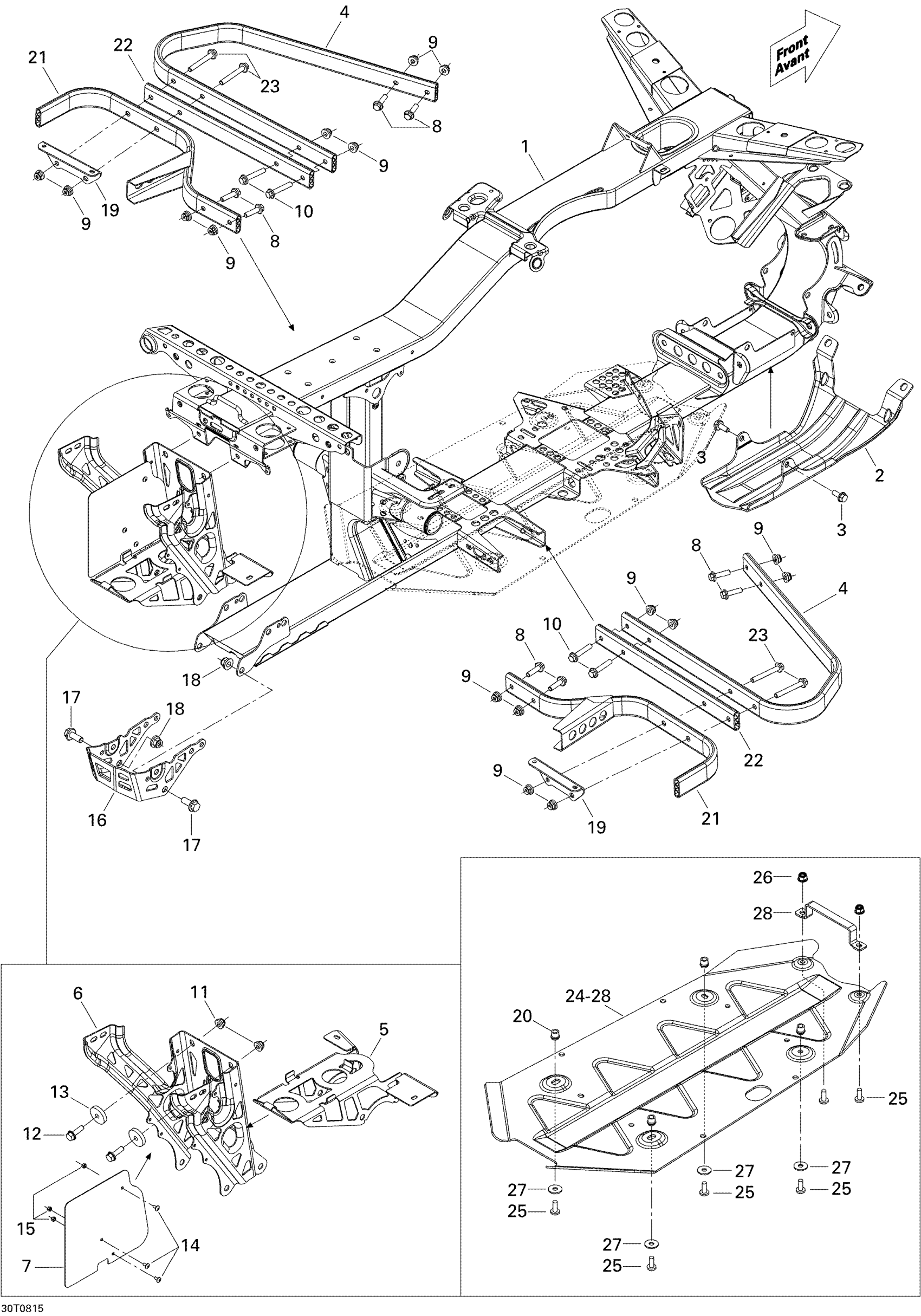

Can-Am Renegade 800 X, 2008 Frame Diagram

#

Description
Price

1

Frame, Black

705201622

Unavailable

2

PROTECTION PLATE - Call your local BRP dealership

705202399

Unavailable

3

Hex Screw Washer Head M8 X 20

207582054

$2.61

4

REINFORCEMENT - Call your local BRP dealership

705201877

Unavailable

5

Battery Support Base

705201942

Unavailable

6

Rear Support, Black

705203842

Unavailable

7

HEAD SHIELD - Call your local BRP dealership

705201510

Unavailable

8

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

Unavailable

9

Hex. Flange Elastic Nut M8

233281414

Unavailable

10

Hex. Flange Screw M8 X 45

207684544

Unavailable

11

Hex. Elastic Flange Nut M8

233281416

Unavailable

12

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

13

SPACER - Call your local BRP dealership

705202084

Unavailable

14

Torx Screw M4 X 8

250000127

$1.09

15

Elastic Stop Nut M4

232541484

Unavailable

16

SUPPORT, BLACK - Call your local BRP dealership

705201504

Unavailable

17

Hex. Flange Screw M10 X 25

207602544

Unavailable

18

Hex. Flange Elastic Nut M10

233201436

Unavailable

19

SUPPORT PLATE, BLACK - Call your local BRP dealership

705202402

Unavailable

20

Insert

293450166

Unavailable

21

REAR FOOTREST - Call your local BRP dealership

705202085

Unavailable

22

MID TUBE - Call your local BRP dealership

705201992

Unavailable

23

Hex. Flange Screw M8 x 60

207686044

$2.56

24

Ens Protec Cen.*Kit Cent. Skid

715000636

$124.58

25

Hex. Screw M8 X 20

236282084

Unavailable

26

Hex. Flange Elastic Nut M8

233281414

Unavailable

27

Flat Washer 8 mm

234082410

$1.11

28

Ens Protec Cen.*Kit Cent. Skid

715000636

$124.58
