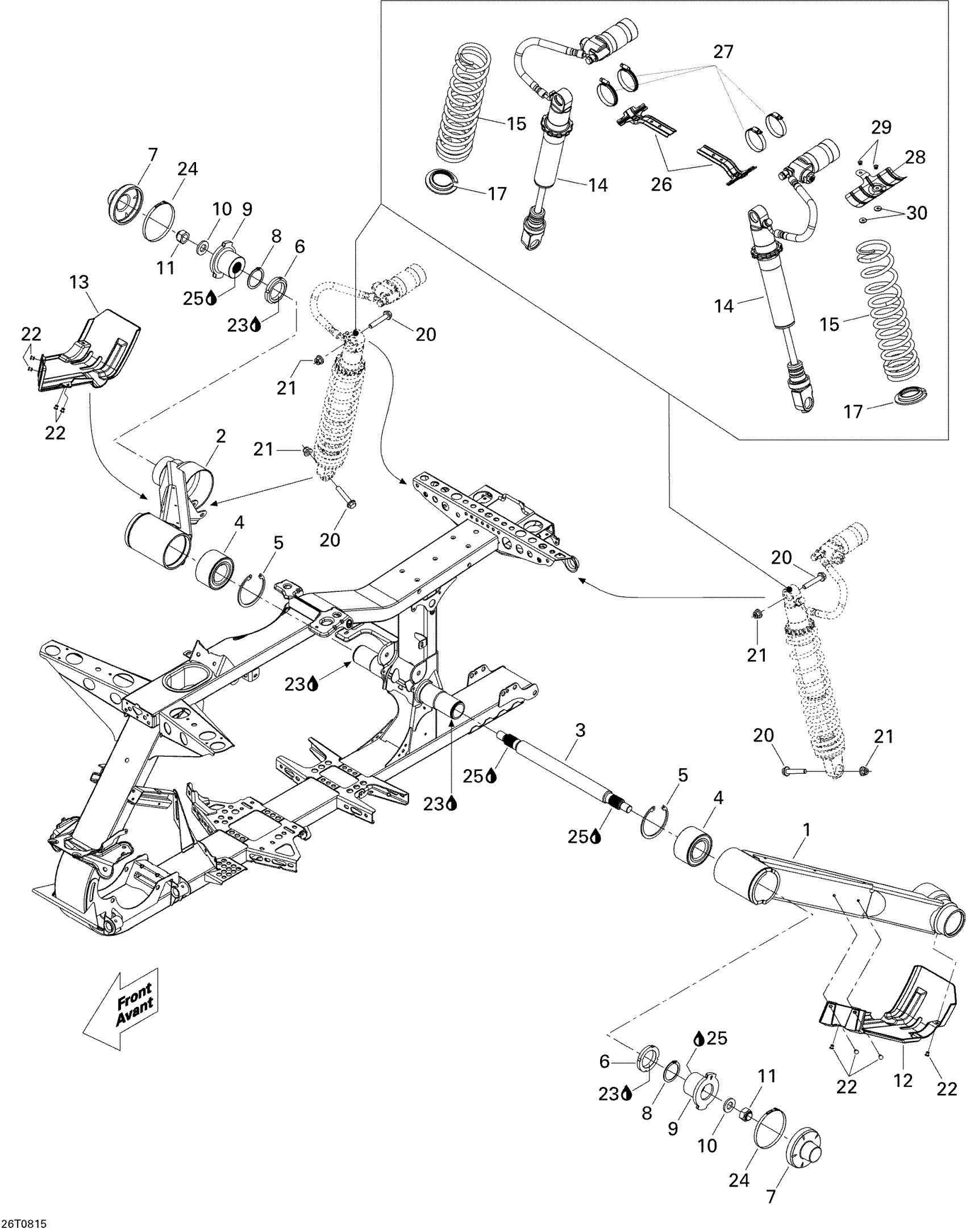

Can-Am Renegade 800 X, 2008 Rear Suspension Diagram

#

Description
Price

1

LH SWING ARM - Call your local BRP dealership

706001191

$239.97

2

RH SWING ARM - Call your local BRP dealership

706001192

$222.28

3

Sway Bar

706001078

$92.28

4

Ball Bearing

293350037

$128.43

5

Circlip

293370041

$9.98

6

Nut

706000221

$23.05

7

Cover

706000749

$15.35

8

Circlip 45 mm

293370027

$4.98

9

Lever

706000554

$69.20

10

Washer

250200045

$7.37

11

Elastic Stop Nut M18

232591414

Unavailable

12

LH PROTECTOR - Call your local BRP dealership

706000333

$14.06

13

RH PROTECTOR - Call your local BRP dealership

706000334

Unavailable

14

REAR SHOCK - Call your local BRP dealership

706000776

$635.99

14

REAR SHOCK - Call your local BRP dealership

706000776

$635.99

15

Yellow Spring

706000570

Unavailable

16

Not Available As Spare Parts

XXX

Unavailable

17

Spring Stopper

706000567

$15.35

18

Not Available As Spare Parts

XXX

Unavailable

19

Not Available As Spare Parts

XXX

Unavailable

20

Hex. Flange Screw M10 X 55

207605544

Unavailable

21

Hex. Flange Elastic Nut M10

233201414

$1.26

22

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

23

Loctite 271, 10 ml

293800005

Unavailable

24

Oetiker Clamp

293650162

$8.45

25

Loctite 271, 10 ml

293800005

Unavailable

26

SUPPORT - Call your local BRP dealership

706000579

$15.35

27

Norma Clamp

293650075

Unavailable

28

Deflector

706000580

Unavailable

29

Pop Rivet 3/16"

390402400

Unavailable

30

Washer

517124300

Unavailable
