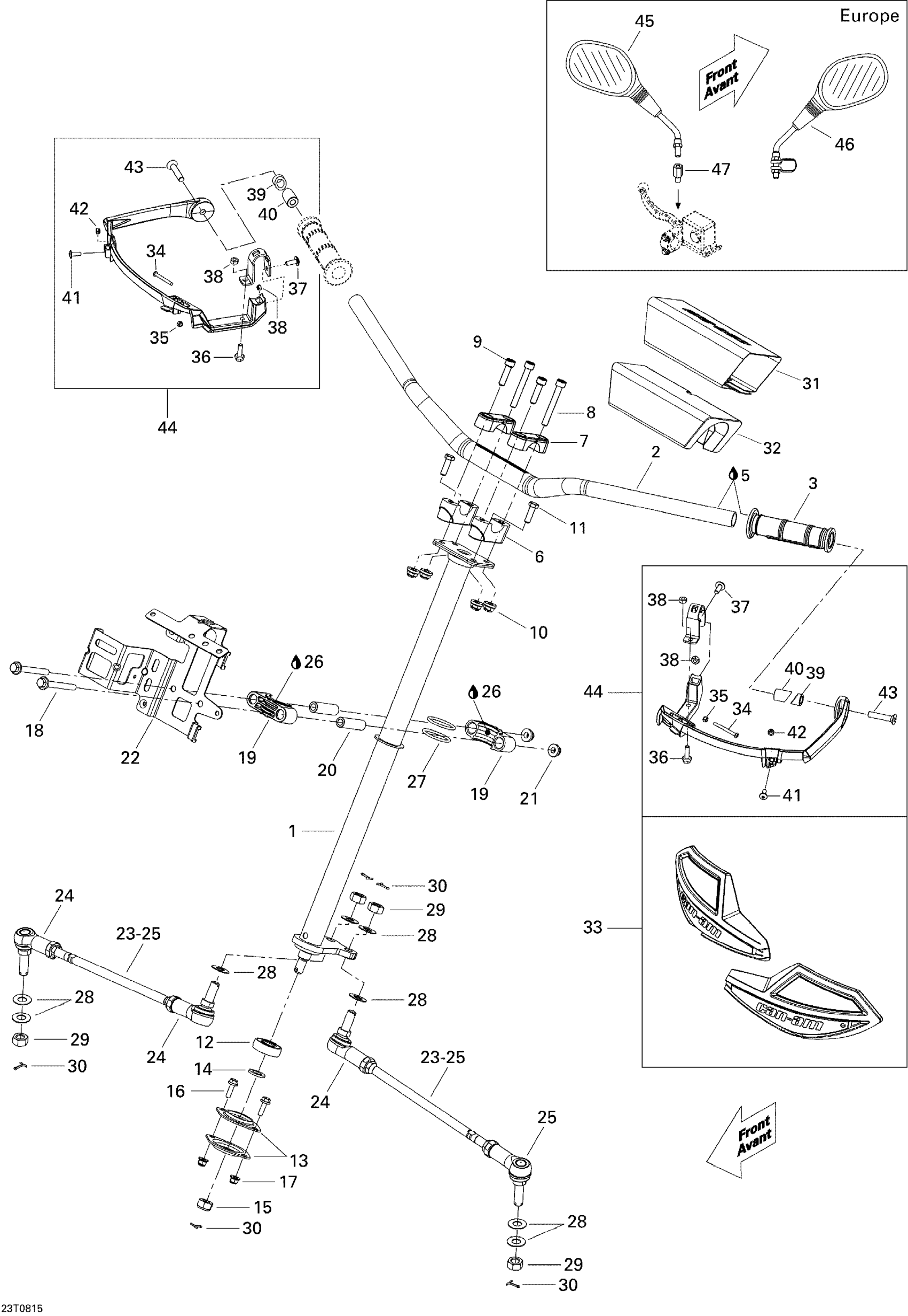

Can-Am Renegade 800 X, 2008 Steering Diagram
#
Description
Price
1
Main Tube, Black
709400971
Unavailable
2
Aluminum Handle Bar
709400513
Unavailable
3
Handle Grip
709400493
Unavailable
4
Not Available As Spare Parts
XXX
Unavailable
7
Support
709400496
Unavailable
9
Socket Screw M8 X 30
205083060
Unavailable
10
Hex. Elastic Flange Nut M8
233281416
Unavailable
11
Hex. Screw M8 X 30
207183060
Unavailable
12
Ball Bearing
709400439
Unavailable
13
FLANGE, BEARING - Call your local BRP dealership
709400152
Unavailable
15
Hex. Flange Elastic Nut M12
250000047
Unavailable
17
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
18
Hex. Flange Screw M8 X 70
207687044
Unavailable
19
Half Bushing
709400471
Unavailable
20
BUSHING - Call your local BRP dealership
709400072
Unavailable
21
Hex. Flange Elastic Nut M8
233281414
Unavailable
22
MODULE SUPPORT - Call your local BRP dealership
709400751
Unavailable
23
Tie Rod Ass'y | Includes 21 to 23
709400485
Unavailable
24
LH Ball Joint
709402303
Unavailable
25
Ball Joint, RH Threads
709400487
Unavailable
26
Synthetic Grease, 400 G
293550010
Unavailable
28
Hardened Washer
706200281
Unavailable
29
Nut M12
250100099
Unavailable
30
Cotter Pin
211400013
Unavailable
32
Foam
709400422
Unavailable
33
Deflector Kit | X
715000525
Unavailable
36
Hex. Flange Screw M6 X 20
207662044
Unavailable
39
Small Bracket | DS 650 X
709400161
Unavailable
40
Large Bracket | DS 650 X
709400162
Unavailable
42
Hex. Elastic Nut M5 | X
232551600
Unavailable
43
Socket Head Screw | X
205384034
Unavailable
44
Air Deflector Support Kit | X
715001378
Unavailable
45
LH Mirror | Europe
709400406
Unavailable
46
RH Mirror | Europe
709400407
Unavailable
