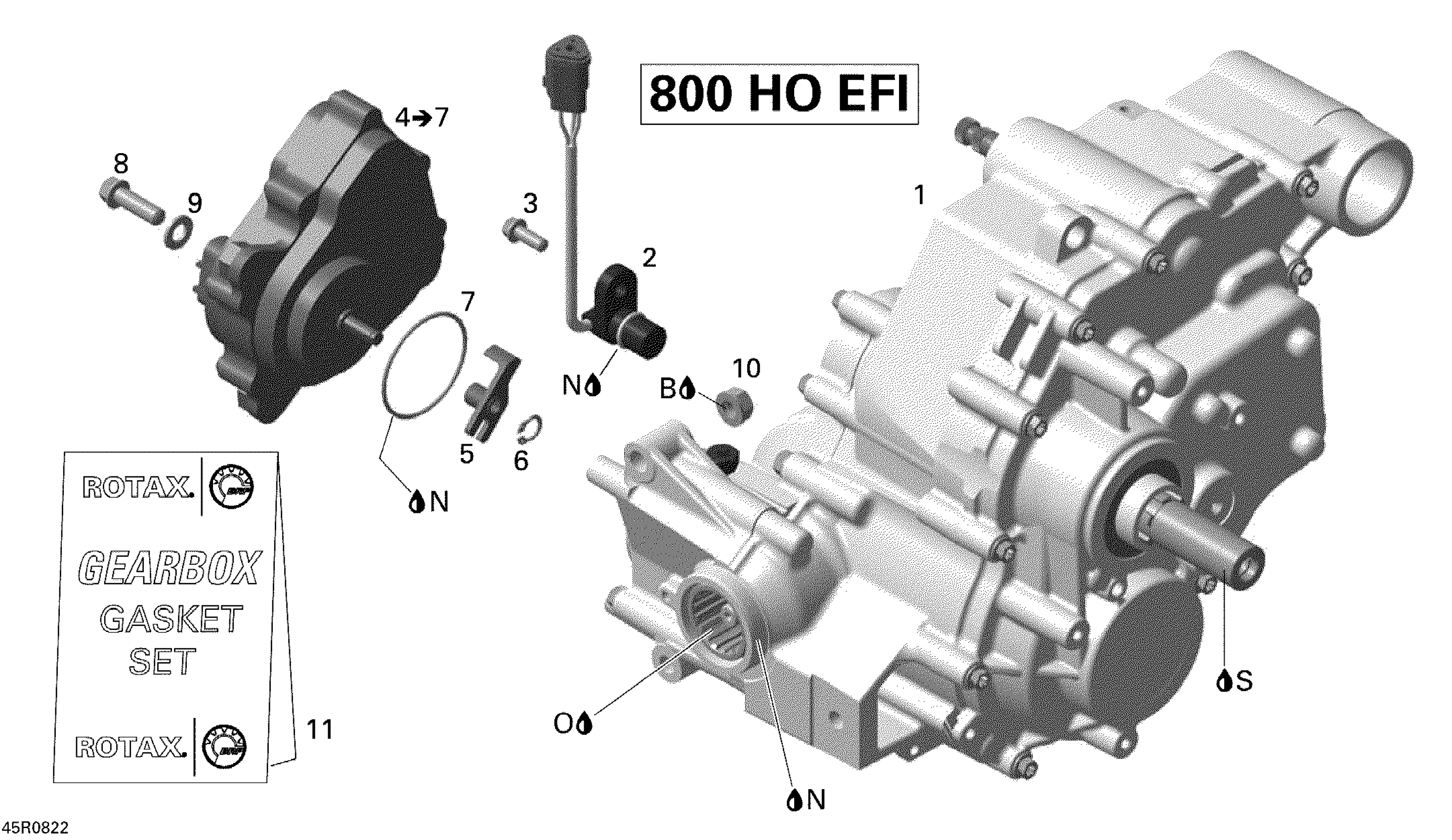

Can-Am Renegade 800, 2008 Gear Box Assy and 4x4 Actuator Diagram

Gear Box

420684780

Unavailable

Camshft Position Sensor Ass'y

420265727

$104.49

Torx Flange Screw M6 X 16

420641048

$2.46

Actuator Ass'y 3 pins | Includes 4 to 7

715900614

$263.05

Shifting Fork

415129175

$14.37

Circlip | 4X4

293370042

$3.11

O-Ring

293300117

$4.28

Torx Flange Screw M8 X 25

420440372

$4.00

Flat Washer 8.4 mm

420250315

$1.09

Hex. Nut M8

420842616

$5.17

Gasket Set, Gearbox

420684134

$69.20

3 Position Switch

420640192

$41.51

Loctite 243, 10 ml

293800060

$20.77

Grease, Super Lube

293550030

$24.67

Not Available As Spare Part - Friction Washer

Unavailable

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
