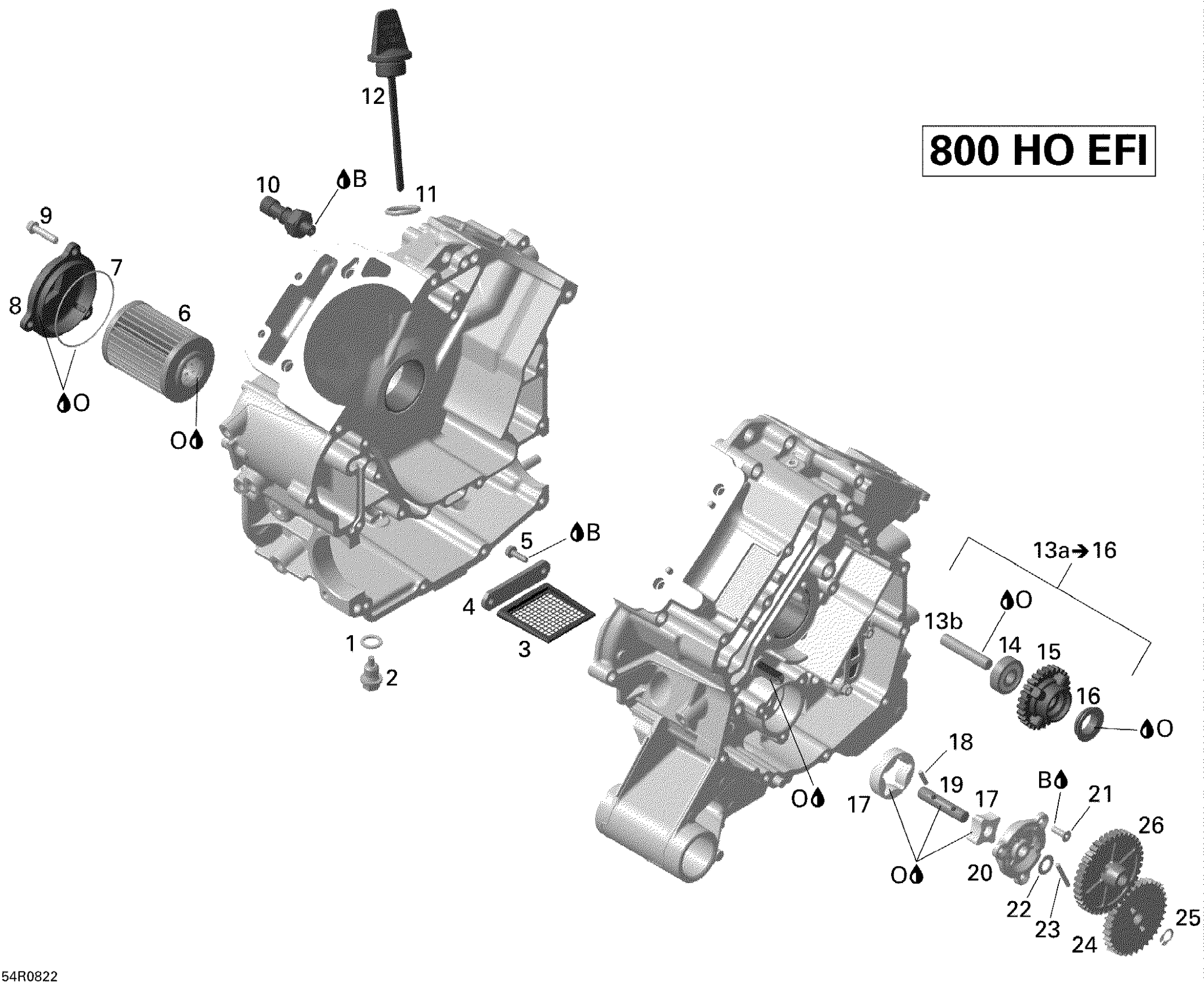

Can-Am Renegade 800, 2008 Engine Lubrication Diagram

#

Description
Price

1

Copper Washer

420250640

$0.93

2

Magnetic Drain Plug M12

420241787

$16.39

3

Oil Sieve

420256322

$26.09

4

Cover Sieve

420210661

$13.18

5

Taptite Screw M5 X 16

420941928

Unavailable

6

Oil Filter

420256188

$12.79

7

O-Ring

420230923

$2.97

8

Oil Filter cover

420612135

$10.78

9

Torx Flange Screw M6 X 25

420641238

$3.07

10

Oil Pressure Switch

420856537

$41.76

11

O-Ring

420631640

$2.00

12

Oil Dipstick

420256802

$15.64

13a

Idle Gear Ass'y, 28 Teeth | Includes 13 to 16

420434307

$84.30

13b

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Oil Seal

420430555

$17.13

17

Oil Pump Rotor

420256348

$70.87

18

Needle Pin

420232731

$1.79

19

Oil Pump Shaft

420237059

$27.58

20

Oil Pump Cover

420210646

$45.49

21

Torx Head Screw M5 X 16

420640823

$1.79

22

Thrust Washer

420827590

$3.75

23

Needle Pin

420232431

$4.21

24

Oil Pump Gear, 33 Teeth

420434320

$13.09

25

Snap Ring

420245330

$1.64

26

Idle Gear, 38 Teeth

420434300

$13.09

B

Loctite 243, 10 ml

293800060

$21.49

O

Not Available As Spare Part - Friction Washer

Unavailable
