Description

Price

1

Cylinder Head Gasket | 400HO

420630195

$78.43

2a

Cylinder Head | Includes 2 to 3

420413397

$679.99

2b

Not Available As Spare Part - Friction Washer

Unavailable

3

Stud M8 x 26

420941014

$10.58

4

Intake Valve 31MM

420254359

$35.35

5

Exhaust Valve 27MM

420254368

$68.43

6

Thrust Washer

420627525

$1.50

7

Valve Stem Seal

420230515

$11.89

8

Valve Spring

420239295

$13.58

9

Valve Spring Retainer

420254132

$13.58

10

Cotter Valve

420254120

$4.00

11

Torx Screw M10X140

420641551

$13.58

12

Torx Flange Screw M6 X 85

420641228

$6.11

13

Camshaft

420620016

$344.99

14

Torx Flange Screw M6 X 16

420641048

$2.46

15

Holding Strip

420627743

$17.66

16

Bearing Screw M6

420240943

$4.29

17

Chain Tension Guide

420436015

$23.82

18

Chain Guide

420236584

$7.31

19

Chain Guide

420236351

$14.12

20

Silent Chain

420297063

$63.82

21

Camshaft Sprocket

420254434

$36.12

22

Hex. Collar Screw M8 X 20 | 330HO

420241721

$7.23

23

Temperature Sensor

278002895

$31.82

24

Chain Tensioner Housing

420236510

$11.09

25

O-Ring

420430373

$2.63

26

Torx Flange Screw M6 X 25

420641238

$2.68

27

Chain Tensioner Plunger

420236521

$14.48

28

Spring

420238120

$7.23

29

O-Ring

420250890

$2.50

30

Plug Screw

420641150

$7.23

31

Pin #12, Small, M6 X 90

420229712

$15.35

32

Shim

420944382

$4.00

33

Inlet Rocker Arm

420254907

$138.43

34

Exhaust Rocker Arm

420254911

$141.51

35

Adjustment Screw M6 X 0.75

420241337

$4.89

36

Hex Nut M6

420242913

$0.52

37

Allen Screw M6 x 30,5

420440561

$3.67

38

Gasket

420630260

$8.34

39

Valve Cover

420610393

$26.12

40

Spacer Ass'y | Includes 40 to 41

420927837

$7.23

41

Thermostat Gasket

420650300

$8.34

42

Thermostat Cover

420222696

$3.09

43

Gasket Ring

420650255

$4.00

44

Screw M5 X 16

420441621

$3.11

45

Torx Flange Screw M6 X 25

420641238

$2.68

46

Spark Plug, NGK DCP-R8E

715900637

$5.66

47

Valve Guide

420254374

$28.99

B

Loctite 243, 10 ml

293800060

$20.77

C

Sealant Loctite 648

219703000

$35.72

O

Not Available As Spare Part - Friction Washer

Unavailable

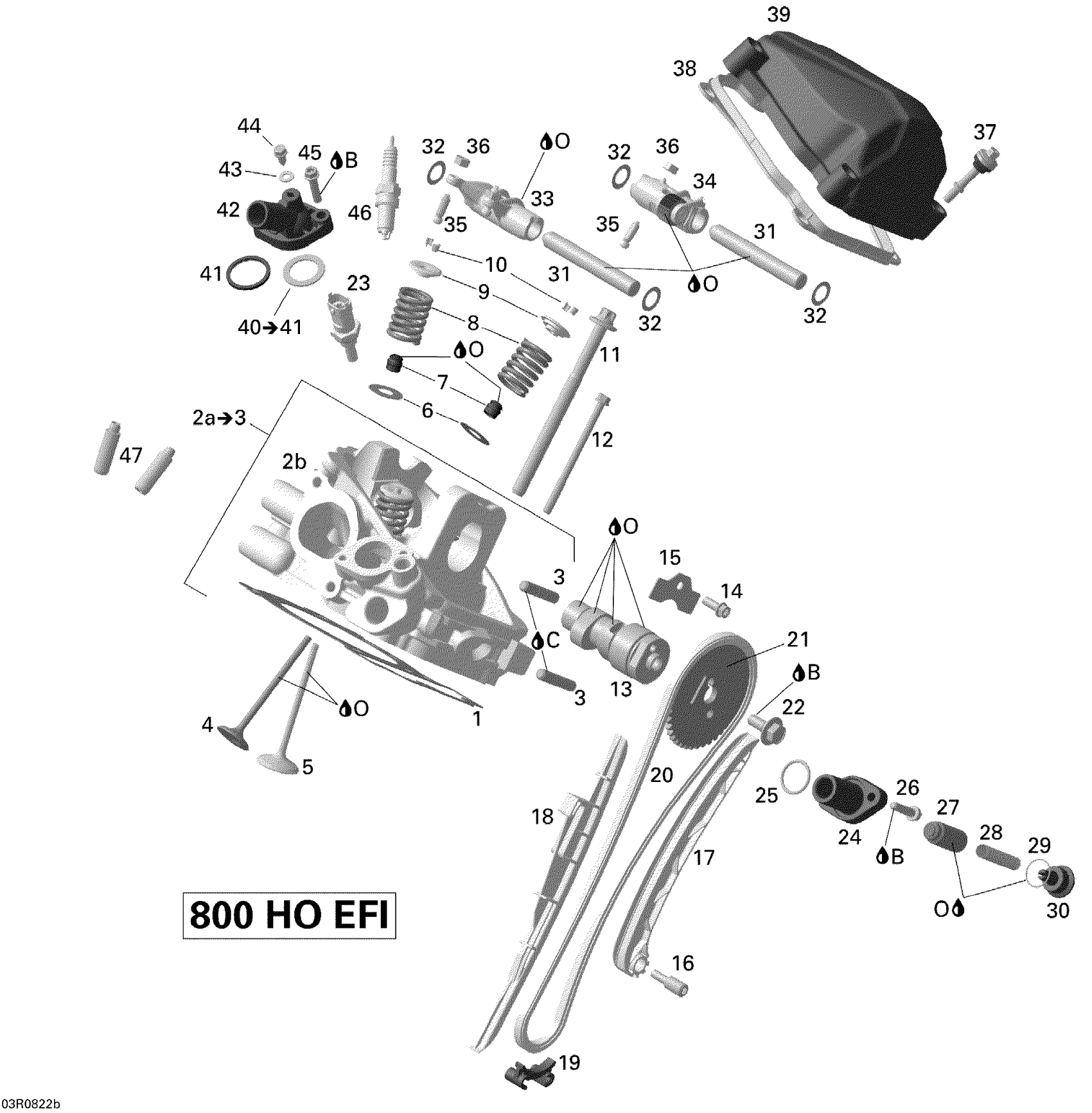

Can-Am Renegade 800, 2008 Cylinder Head, Rear Diagram

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer
