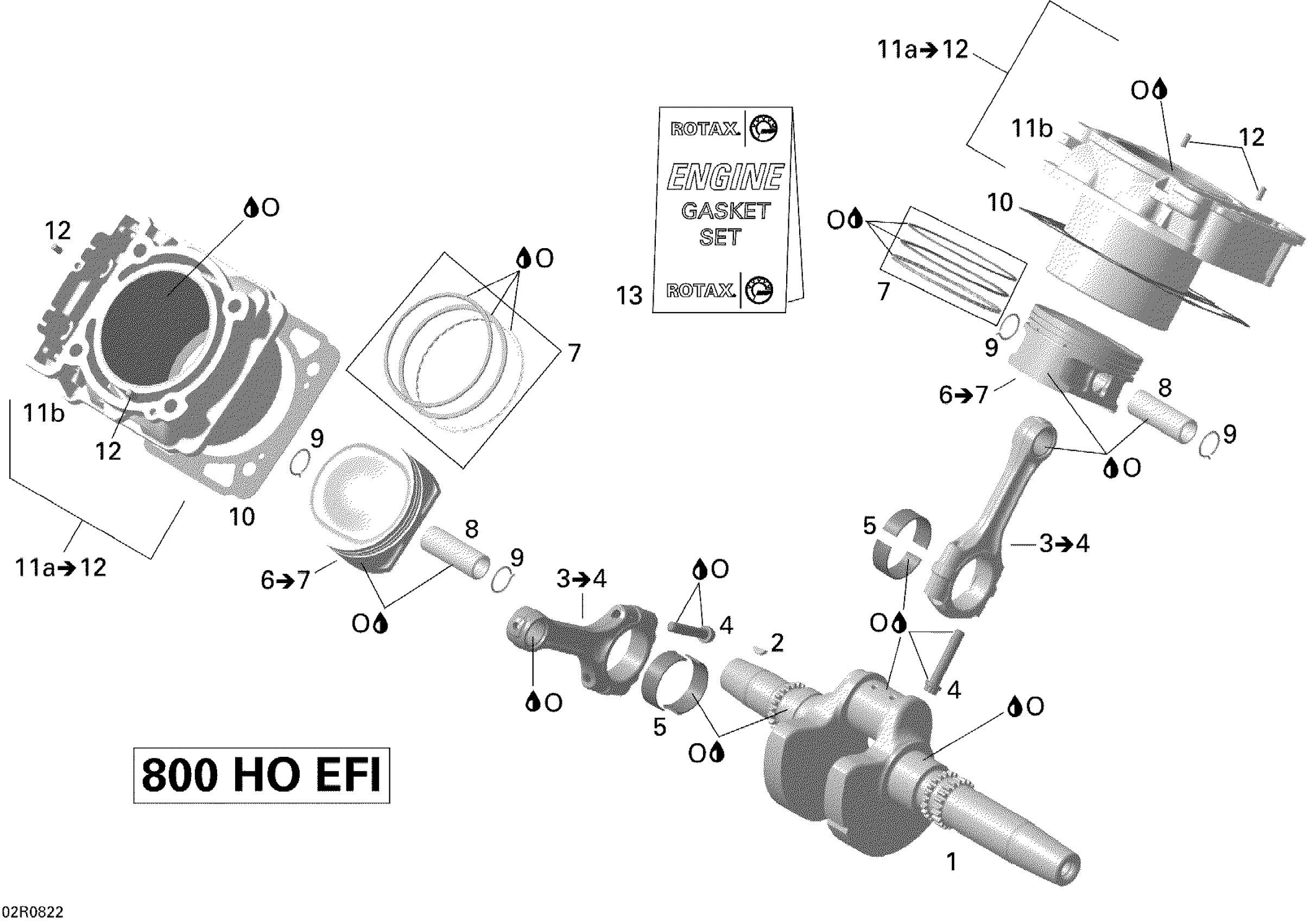

Can-Am Renegade 800, 2008 Crankshaft, Piston And Cylinder Diagram

Description

Price

Crankshaft Ass'y

420219746

$653.39

Woodruff Key 4 X 5

420246570

$3.29

Connecting Rod Ass’y | Includes 3 to 4

420217425

$232.64

Connecting Rod Screw M8 X 1

420641645

$13.58

Plain Bearing 40 X 43 X 15

420233980

$26.89

Piston Ass'y, 90.958 mm | 400HO / Includes 7 to 8

420685714

$163.34

Piston Ass'y, Oversize, 91.208 mm | Includes 7 to 8

420296776

$163.34

Piston Ring Set | 400HO

420296774

$81.99

Not Available As Spare Part - Friction Washer

Unavailable

Piston Pin

420216270

$26.99

Piston Circlip

420845106

$3.52

Gasket

420630210

$12.42

11a

Cylinder Ass'y | 400HO / Includes 12 to 13

420613586

Unavailable

11b

Not Available As Spare Part - Friction Washer

Unavailable

Drive Pin 5 X 10

420929650

$1.34

Gasket Set, Engine

420684160

$350.74

Not Available As Spare Part - Friction Washer

Unavailable
