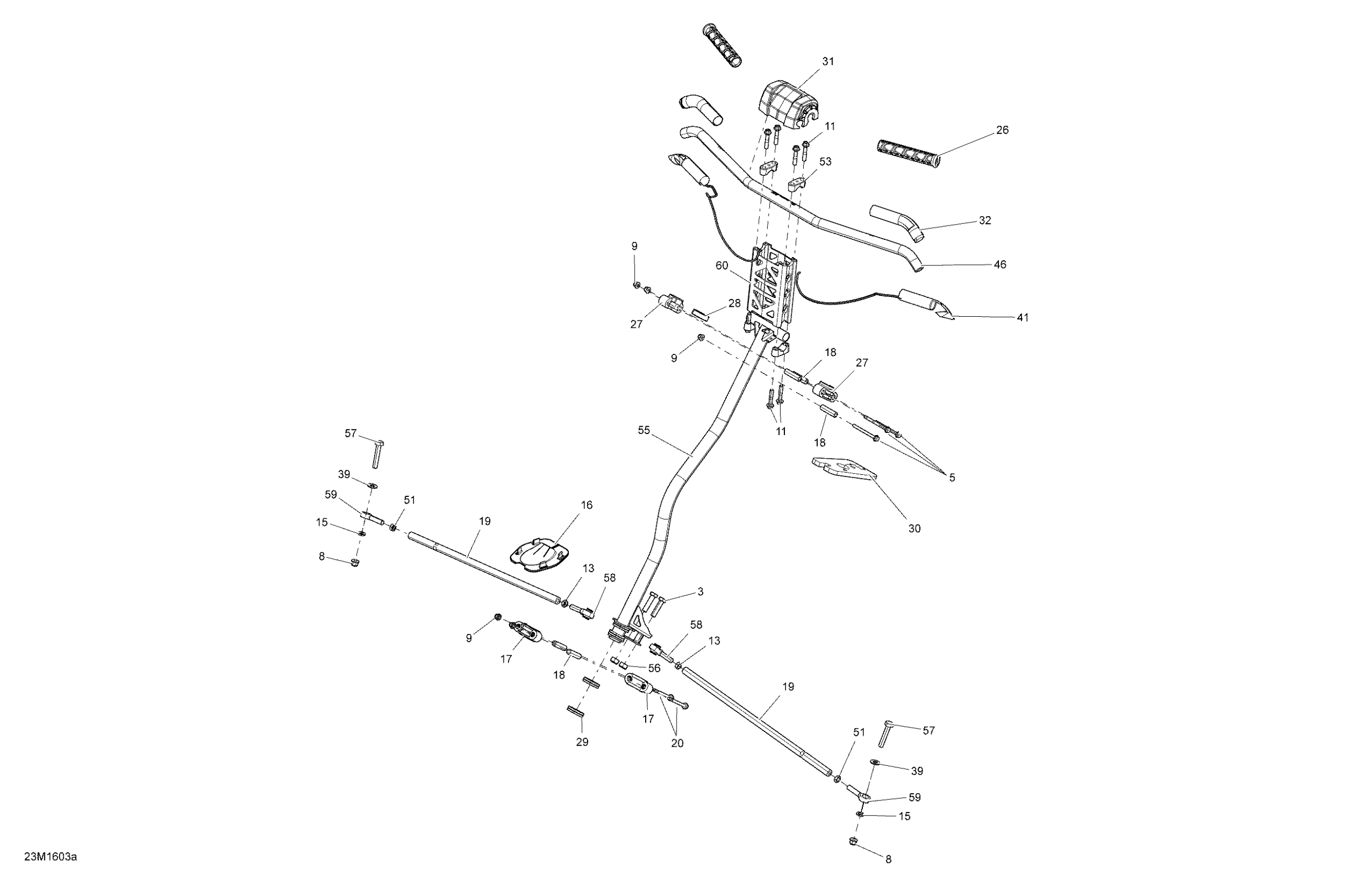

Ski-Doo RENEGADE 600 CARB 000UHGA00 Steering - 600 CARB Diagram

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

Hex. Flange Screw M6 X 70

207667056

$3.61

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Hex. Flange Screw M8 X 40

250000352

$3.16

LH Threaded Hex. Jam Nut M10

250100016

$0.70

Washer

503192496

$0.73

Plate

506152163

$9.93

Lower Half-Housing

506152217

$5.40

Housing Bushing

506152297

$9.93

Tie-Rod Ass'y

506152496

$58.18

Grip

506152486

$14.27

Upper Half-Housing

506152508

$7.18

Upper Anti-Vibration Gasket

506152509

$4.39

Lower Vibration Ring

506152518

$4.39

Bushing

506152521

$13.19

Deep Black, Steering Pad

506152541

$41.01

Thermal Insulation

506153176

$5.54

Isolant

506152611

$7.57

Washer

506152194

$4.28

Heating Element 28 WATT This part replaces 506152602.

506152603

$42.51

Handle Bar, Non Dyed Clear Anodizing

506152709

$79.07

RH Threaded Hex. Jam Nut M10

732610010

$0.70

Steering Support | Includes 40 to 40a

506152751

$10.09

Steering Column

506152962

$183.55

Elastic Stop Nut M10

232500416

$1.56

Hex. Screw M10 X 55

207005544

$1.85

LH Thread Ball Joint

506152081

$38.78

RH Threaded Ball Joint

506152019

$38.78

Handlebar Extension Kit (115mm) This part replaces 506152571.

860200819

Unavailable
