Description

Price

1

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.46

3

Hex. Nut M10 X 1.5

232006414

$1.11

5

Hex. Flange Elastic Nut M8

233281414

$1.14

6

Hex. Flange Screw M6 X 1.0 X 30

250000360

$1.74

7

Bonded Washer

250200100

$1.74

11

Oil Seal

293200168

$13.65

12

O-Ring

293300122

$2.06

13

Tight Seal

293300130

$7.31

15

Ball Bearing

293350115

$11.15

16

Ball Bearing

293350059

$30.74

17

Ball Bearing

293350074

Unavailable

22

Male Connector

414580700

$3.38

23

Oil Seal

293200158

$12.52

24

Sprocket, 21 Teeth

504096200

$42.28

25

Sprocket 23 Teeth

504153911

$42.28

27

Circlip

504152282

$3.11

28

Oil Seal

293200159

$13.12

29

Circlip

504152572

$6.26

30

Circlip

504152576

$8.71

32

Circlip

504152582

$8.71

33

Adjustment Screw

504152602

$9.62

34

Magnetic Cap

504152619

$23.05

36

Shim

504152628

$8.40

38

Drive Chain, 104 Links

504152629

$173.82

39

Magnetic Plug 1/8 - 27 NPTF

504152636

$8.95

40

Tensioner chain

504153429

$13.77

41

Slider Chain

504152739

$67.66

42

Spring Washer M10

504152784

$6.26

45

Track Ass'y 15" X 137" X 1.2C" | Includes 3200 to 3200b

504152838

$959.99

46

Tensioner Axle

504152841

$14.65

47

Cap

504152860

$19.20

48

Drive Axle Ass'y

504152869

Unavailable

52

Rotation Sensor

504152896

$35.35

53

Retaining Ring

504153886

$18.43

54

Kit Sprocket This part replaces 504152971.

861805540

$149.97

57

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153147

$324.58

59

Countershaft

504153000

$572.28

60

Chaincase

504153181

$324.58

61

Bearing Housing

504153185

$28.43

66

Polyurethane Hose 10000Mm Long

219704410

$46.12

68

Plate | Not Shown

518325816

$73.82

69

Track Guide | Track Width 16''

415129528

$3.12

70

Cleat

504152651

$8.22

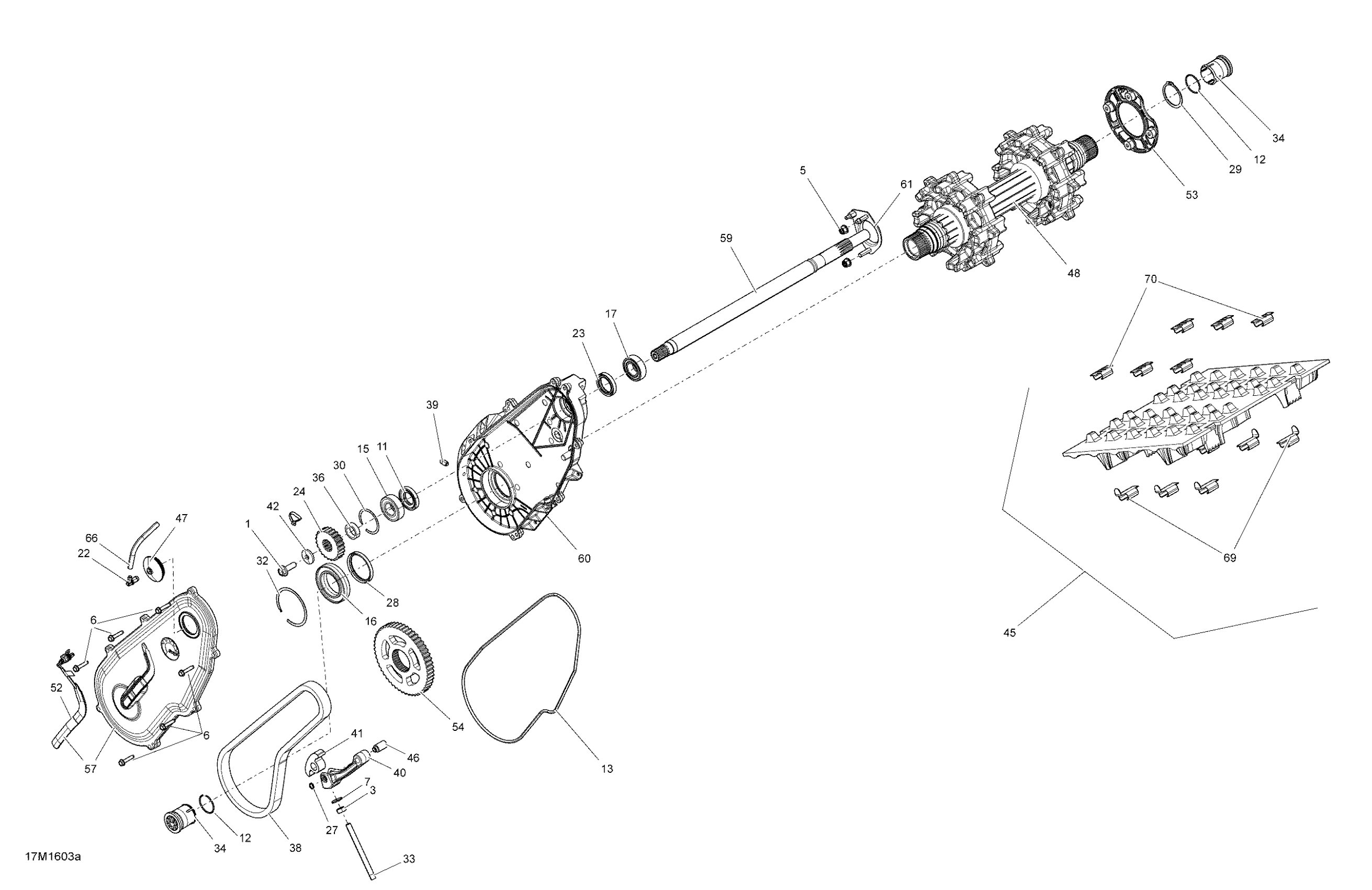

Ski-Doo RENEGADE 600 CARB 000UHGA00 Drive Diagram

Ball Bearing

Drive Axle Ass'y
