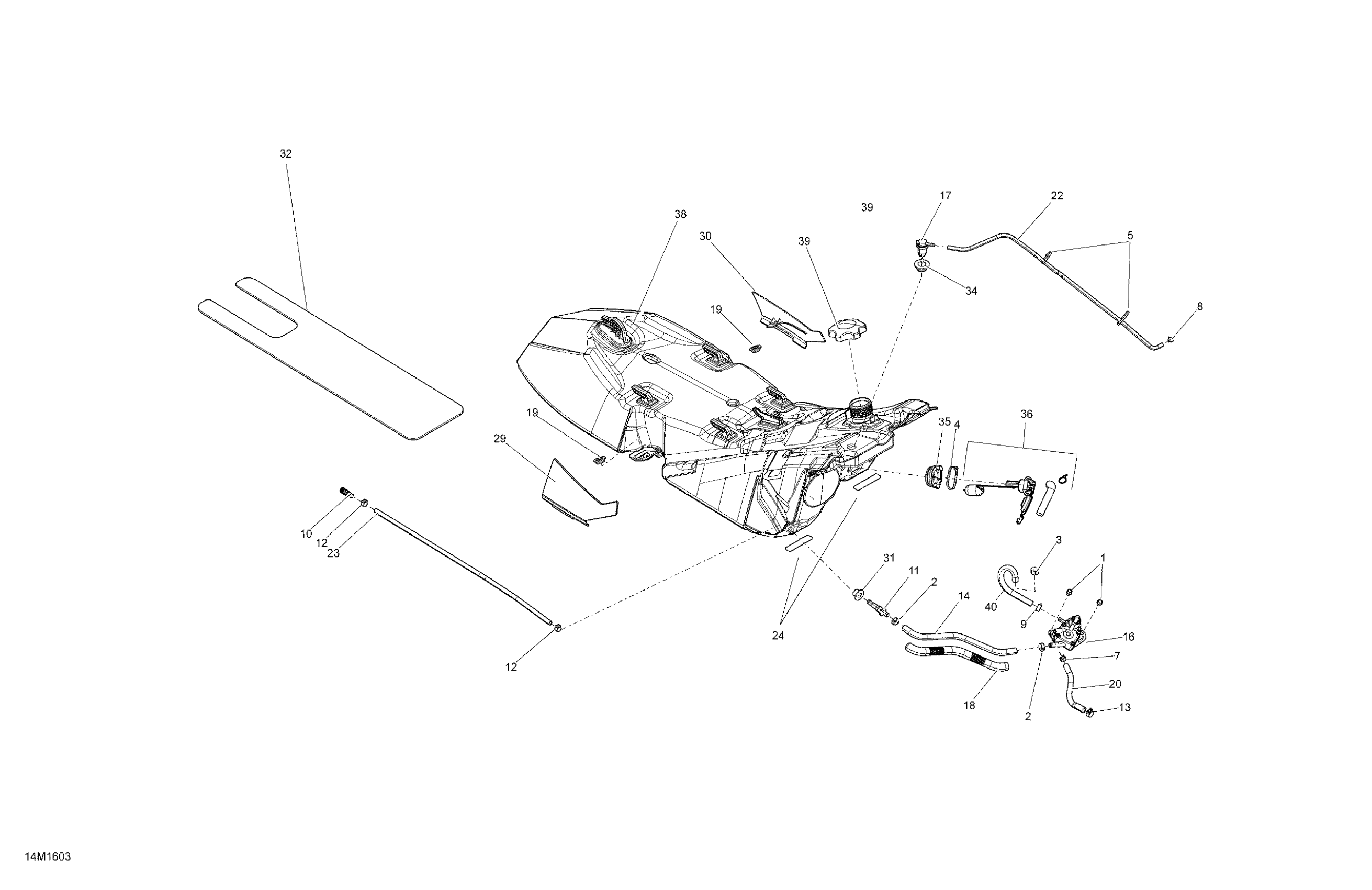

Ski-Doo RENEGADE 600 CARB 000UHGA00 Fuel - 600 CARB Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 10

210261040

$1.25

2

Crimp Clamp

293650053

$2.42

3

Oetiker Clamp

293650125

$2.69

4

Tie Wrap 368 mm

293750008

$0.85

5

Tie-Rap 180 mm

414115200

$0.09

7

Spring Clamp

414415200

$0.81

8

Spring Clamp

414554800

$0.81

9

Spring Clamp

414655700

$0.66

10

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

11

Male Connector

414872700

$1.81

12

Norma Spring Clamp

513033010

$8.42

13

Universal Spring Clamp

513033029

$4.96

14

Formed Hose

513033165

$28.33

16

Fuel Pump

513033184

$84.99

17

Check Valve

513033842

$32.81

18

Polyurethane Hose 10000Mm Long

219704410

$46.12

19

Shoulder Bushing

513033326

$12.24

20

Formed Hose

513033327

$23.10

22

Polyurethane Hose 10000Mm Long

219704410

$46.12

23

Polyurethane Hose 1000Mm Long

219704391

Unavailable

24

Gasket

513033813

$3.19

29

RH Cap

513033418

$12.24

30

LH Cap

513033419

$12.24

31

Grommet

513033435

$3.73

32

Insulating Foam

513033588

$12.24

34

Grommet

513033596

$17.88

35

Grommet

513033606

$17.88

36

Sensor Level Fuel | Includes 40 to 40a

513033958

$101.46

38

Fuel Tank

513033695

$304.45

39

Fuel Tank Cap

513033969

$24.60

40

Formed Hose

513033343

$23.10
