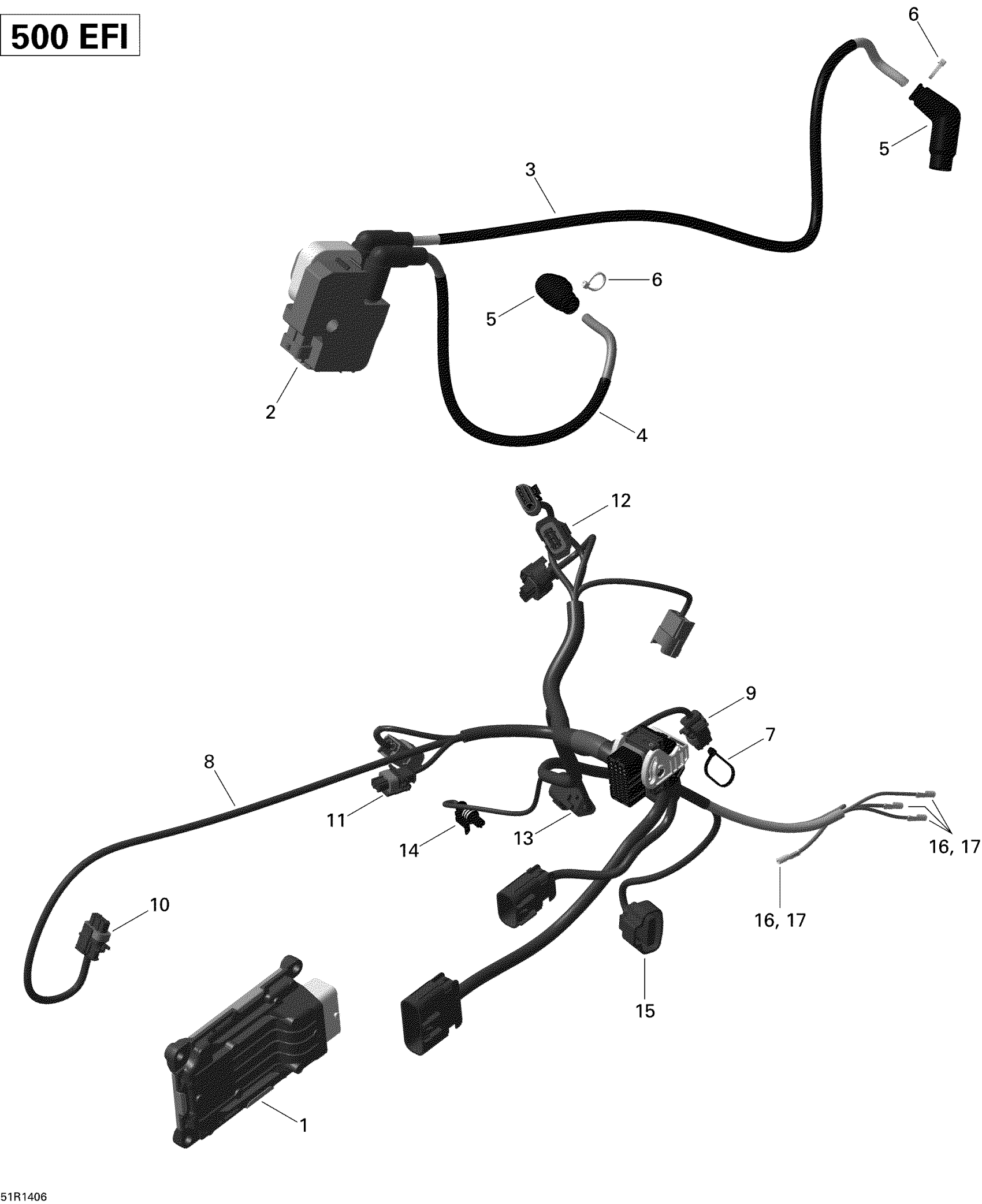

Can-Am Renegade 500EFI STD, 2014 Engine Harness And Electronic Module Diagram

#

Description
Price

1

ECM Connector | Except Europe

420264950

Unavailable

1

ECM, ENGINE CONTROL MODULE - Call your local BRP dealership | Europe

420264952

Unavailable

2

Ignition Coil

278001546

Unavailable

3

Spark Plug Cable, 790 mm, Rear

420665333

Unavailable

4

Spark Plug Cable, 790 mm, Rear

420665333

Unavailable

5

Spark Plug Connector

420265248

Unavailable

6

Tie Rap

420866710

$4.36

7

Tie Wrap 94 mm | 4X4

293750001

$0.83

8

Engine Wiring Harness

420666571

$415.35

9

Male Housing, 2 Circuits

278001005

$15.57

10

Male Housing, 3 Circuits

278000997

$15.57

11

Male Housing, 2 Circuits

278001005

$15.57

12

Housing Connector, 3 Circuits

278001829

Unavailable

13

Male Housing

278002378

Unavailable

14

Male Housing, 1 Circuit

278001012

$12.65

15

Male Housing, 4 Circuits

710000329

Unavailable

16

Female Terminal | DS 650 X

278001009

Unavailable

17

Insulated Sheath

278001007

Unavailable
