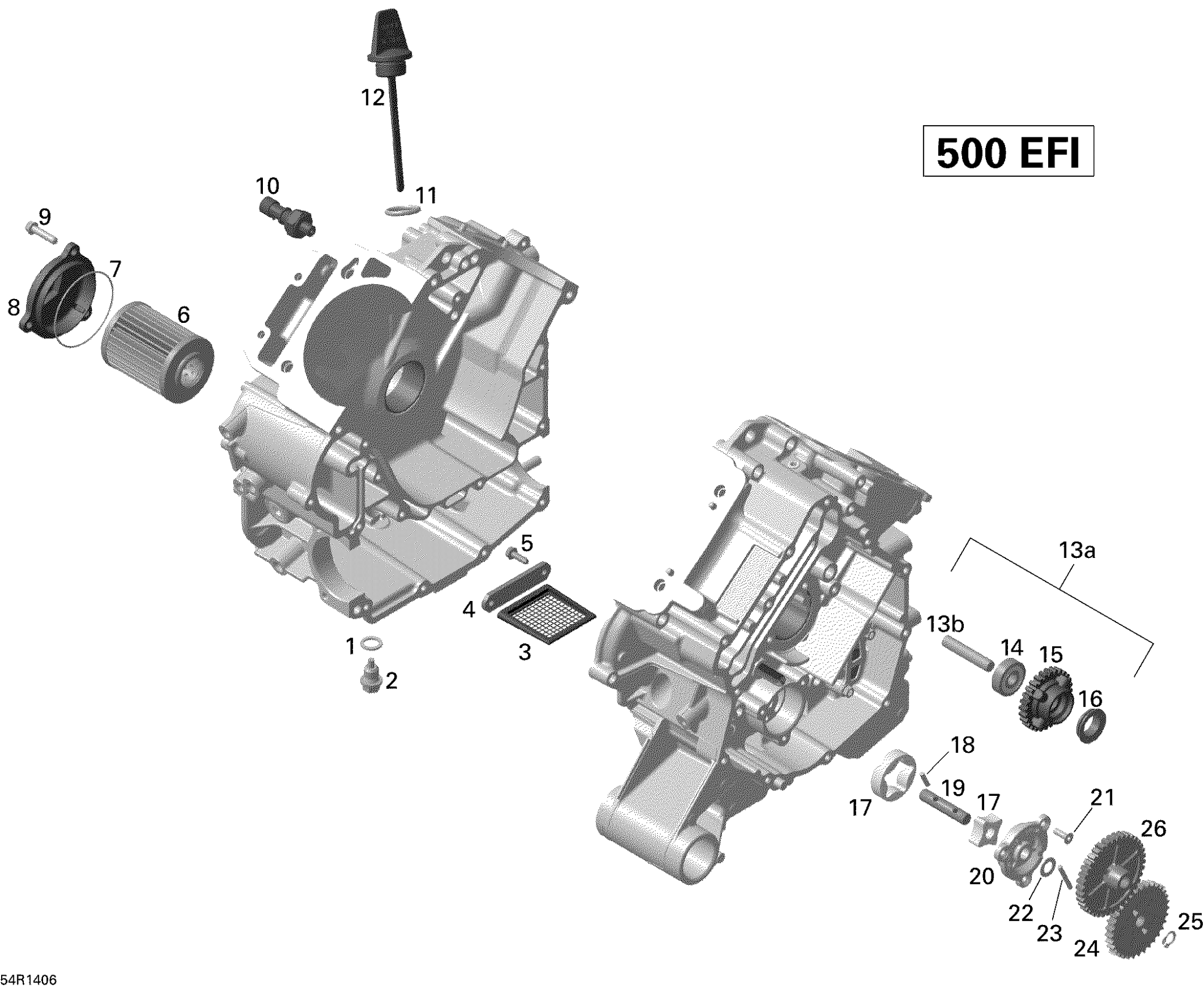

Can-Am Renegade 500EFI STD, 2014 Engine Lubrication Diagram

#

Description
Price

1

Copper Washer

420250640

$0.81

2

Plug screw

420841924

Unavailable

3

Oil Sieve

420256322

Unavailable

4

Cover Sieve

420210661

Unavailable

5

Taptite Screw M5 X 16

420941928

Unavailable

6

Oil Filter

420256188

Unavailable

7

O-Ring

420230923

$2.59

8

Oil Filter cover

420612135

$11.11

9

Torx Flange Screw M6 X 25

420641238

Unavailable

10

Oil Pressure Switch

420856537

Unavailable

11

O-Ring

420631640

Unavailable

12

Oil Dipstick

420256802

Unavailable

13a

Idle Gear Ass'y, 28 Teeth | Includes 13 to 16

420434307

Unavailable

13b

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Oil Seal

420430555

Unavailable

17

Oil Pump Rotor

420256348

$61.72

18

Needle Pin

420232731

$1.56

19

Oil Pump Shaft

420237059

Unavailable

20

Oil Pump Cover

420210646

Unavailable

21

Torx Head Screw M5 X 16

420640823

Unavailable

22

Thrust Washer

420827590

$3.86

23

Needle Pin

420232431

$3.67

24

Oil Pump Gear, 33 Teeth

420434320

Unavailable

25

Circlip

504152282

$3.11

26

Idle Gear, 38 Teeth

420434300

Unavailable
